Warehouse Metal Storage Carton Flow Rack

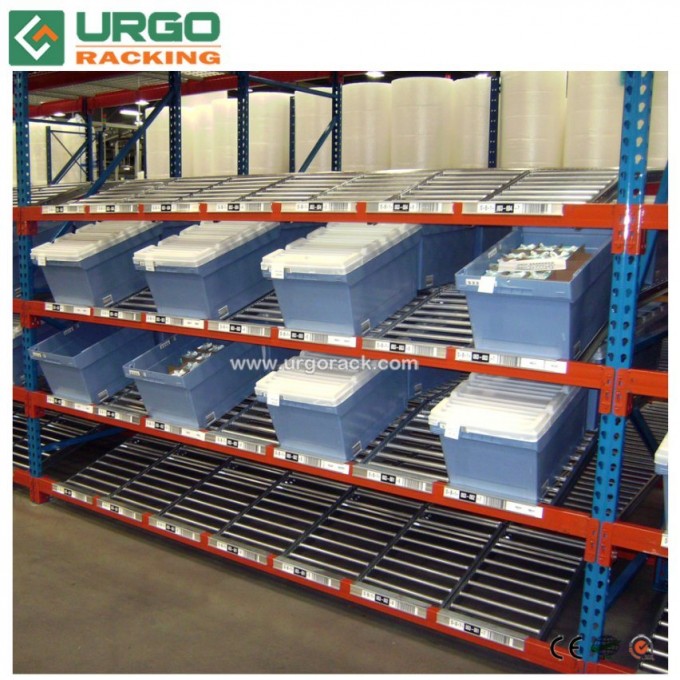

URGO Carton Flow Racking contains a rack structure and dynamic flow rails. The flow rails are set at an engineered pith, allowing the container to be placed on the upper end of the rack and sliding down to the unloading end. Rollers let the container moves smoothly by gravity and the goods can be realized First InFirst Out. It can save space and improve efficiency as well. It is commonly installed for picking operation in logistics center of factory production line.

Features:1. Easy to assemble and dismantle
2. Layer height is adjustable
3.This type of storage rack made of high-grade cold-rolled steel, with surface treatment of electrostatic spray- paint, is firm and solid in structure and anti-rust in apperance.
4.Thickness,size,layers,and colors are customized.

ColumnProfiles:

Column Specification (mm)	Thickness (mm)	Upright Loading (kg)
W80 x D60	1.8-2.0	4000-6000 KG
W85 x D67	1.8-2.3	7500-12500 KG
W90 x D60	1.8-2.5	8000-10000 KG
W90 x D70	1.8-2.5	10000-12000 KG
W100 x D70	2.0-2.5	11000-14000 KG
W120 x D95	2.3-3.0	17000-21000KG

Beam Profiles:

Loading (kg) Specification (mm)	The Length of Box Beam (mm)
	1500	2000	2300	2500	2700	3000	3300	3600	3900
80 x 50 x 1.5	3000	1740	1340	1160	1010
90 x 50 x 1.5	4080	2350	1800	1645	1345	1010	850
100 x 50 1.5		2960	2260	1930	1680	1380	1040
110 x 50 x 1.5			2640	2250	1950	1600	1340	1140
120 x 50 x 1.5			3200	2730	2358	1930	1518	1379
140 x 50 x 1.5				3868	3330	2720	2370	2020
160 x 50 x 1.5					4220	3690	2970	2600	2340
160 x 50 x 1.8						4400	3420	3020	2590
160 x 50 x 2.0						4130	4170	3320	2840

Loading (kg) Specification (mm)	The Length of P Box Beam (mm)
	1500	2000	2300	2500	2700	3000	3300	3600	3900
100 x 50 x 1.5	4470	2512	1900	1610	1380	1120	920
110 x 50 x 1.5	5484	3085	2332	1974	1693	1371	1133	952
120 x 50 x 1.5		3910	2957	2503	2146	1738	1436	1207	1030
140 x 50 x 1.5		5722	4330	3662	3140	2543	2102	1766	1505

Packaging and shiping

FrequentQuestionAnswer

1. Q:Whatmakesyoudifferentwithother suppliers?

A: 1)Our excellent service Foraquick,nohasslequotejustsendemailtous.Wepromisetoreplywithapricewithin12hours

2)Ourquickmanufacturingtime

For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.

3)Our special export designWepayverymuchattentiontotheexportpackages.Wehaveplasticclipsonthebeamstoprotectthebeams

fromsurfacedamageinthetransportation,Wehavegotthewhole uprightswrapped withtransparent plastic film.

4)Our warranty time

The high standardsinthe designand manufacturingensureustosupporttheproductswitha10 years warranty timeforyournormaluse, itisthe longest manufacturer's warranty!

2. Q:MayIknowthestatusofmyorder?

A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.

3. Q:Aresamplesavailable?

A: Yes,wecansendsomesectionsofsamplesforyourreferencebyexpss.

4. Q: Is Galvanised Finish available for pallet racks?

A:Yes. Pallet raking posts and bracings are available with galvanized finish.

5. Q: How can I get your quick quotation on my pallet racking project?

A:As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know the following information:

1) Required Pallet Racking Dimension:Height*Depth*Length?

2) Number of Levels?

3) Loading Capacity of each level?

4) Racking Quantity?
