| Model | ZZ5257GJBN3241 |

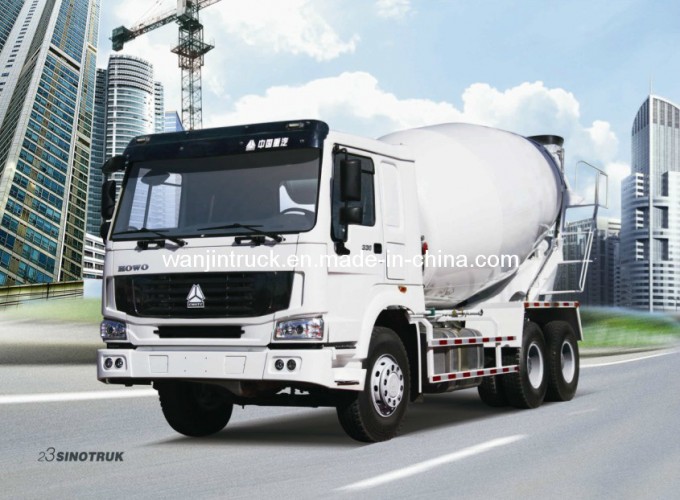

| Type of vehicle | ConCRETE MIXER |
| Driving Type | 6x4 |
| Engine Power, HP | 336HP |
| Kerb mass, Kg | 12200 |
| Total mass, Kg | 32000 |
| Model | WD615.69 |
| Power | 247kw/2200rpm |
| Cylinder Capacity cc / Lt: | 9.726L |
| Stroke | 130mm |
| Bore | 126mm |
| Torque (Nm/rpm): | 1160NM@1300-1600rpm |
| Kind of Clutch | Single-plate dry coil-spring clutch, diameter 420, hydraulically operating with air assistance |
| Kind of Gear Box | QJ5S-150GP |
| Gear Box Producer | QJ |
| Gear Box Model | 5S--150GP |
| Speed Quantity | 9forward & 1 reverse |
| Speed Relationship of Gear Box | 12.42; 8.29; 6.08; 4.53; 3.36; 2.47; 1.81; 1.35; 1.00 |
| Front Axle Model | Steering with double T-cross section beam |
| frame details | U-profile parallel ladder frame with section of 300x80x8mm and reinforced subframe, all cold riveted cross members |
| Body | Drum Volume(m³ ): 13.5 Agitating Capacity(m³ ): 8 Drum Rotating Speed(r/min): 0~16 Water Tank Volume(L): 400 Discharge Remain Ratio: 0.5 |
| Brake System Description | Service brake: dual circuit compssed air brake Parking brake (emergency brake): spring energy, compssed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS |
| Batteries Quantity / Voltage | 2x12V |
| Alternator Model / Voltage | 28V |
