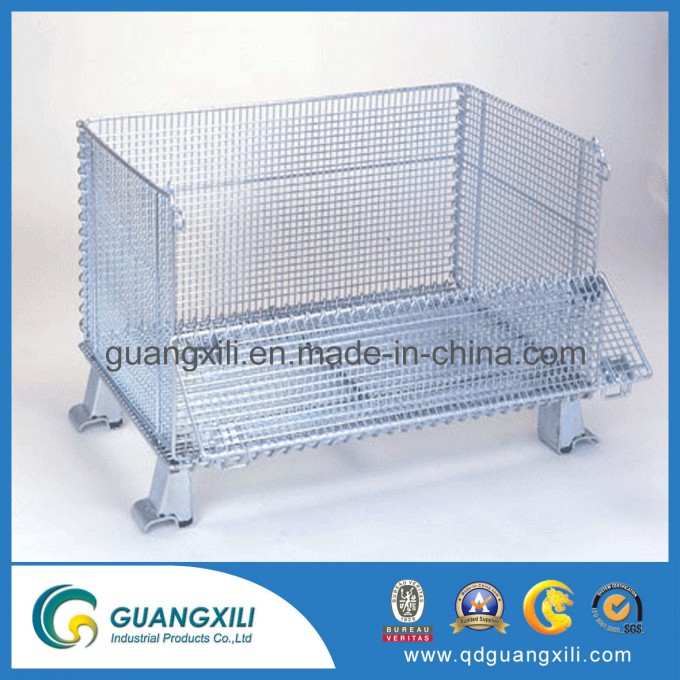

Heavy Duty Storage Folding Wire Mesh Container for Warehouse

Our company can offer various types storage cage,Galvanized wire mesh container recommended for applications requiring maximum ruggedness and durability in a wide range of manufacturing and warehousing applications. The unique fold-down feature collapses this container to approximately 10 inches when not in use.Tough,All-welded wire contaiers provide quick content clearly visible,even when stacked 3 and 4 containers high,making it easy to see what stored inside,this promotes better material flow and more efficient inventory control.Open mesh welded wire construction allows dirt,dust,debris to pass through keeping the contents cleaner.Half drop gate makes it easy to load or unload parts.Foldable desigh,allowing the sides to collapse,fold flat for space-saving when not in use or return shipment.High strength design permits secure,compact storage,the sturdy wire mesh containers can hold up to max 2000kg with three more fully loaded wire containers stacked on top.These containers are made with rigid wire after welding,electro-galvanized finished providing a lifetime or rust resistance.1. Product Instructions

1.Material: Low carbon steel
2.Surface treatment:electro galvanized, hot dipped galvanized
3.Loading capacity:1000-3000kg
4. Available in 5to 14mm galvanized welded mesh
5. Legs are wrapped and welded around the based-no edges to scratch floors or people
6. Double wire reinforcements at load-bearing surface and top edges
7. base inside walls protect content from damage
8. Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness
8.Adapts patented technology, with new pattern and unique design, Can also design and produce commercial storage equipment of various specifications according to customer's requirements
9. Offers overall arrangement for all kinds of markets and warehouses .

Regular models of wire mesh container
Item No.	Specification		Wire diameter	Mesh gauge	Load capacity	Self-weight	Feet height
	External size (L*W*H)(mm)	Internal size (L*W*H)(mm)	(mm)	(mm)	(kg)	(kg)±2%	(mm)
A1-800	800*600*640	750*550*500	5.8	50*50	800	29	100
A1-700			5.6	50*50	700	27.8
A1-600			5.3	50*50	600	23
A1-400			4.8	50*50	400	20.6
A2-600			5.8	50*100	600	25
A3-1000			6.3	50*50	1000	32
B1-1200	1000*800*840	950*750*700	5.8	50*50	1200	44.8	100
B1-1000			5.6	50*50	1000	42.8
B1-800			5.3	50*50	800	35.2
B1-600			4.8	50*50	600	30.8
B2-1000			5.8	50*100	1000	39
B3-1500			6.3	50*50	1500	51
C1-1500	1200*1000*890	1150*950*750	5.8	50*50	1500	60.8	100
C1-1300			5.6	50*50	1300	55.8
C2-1000			5.8	50*100	1000	53.8
C2-800			5.6	50*100	800	48.4
C3-2000			6.3	50*50	2000	68
Remark: the size, wire diameter, mesh gauge can be customized as your design.

2. Product Details

A, Bending-shaped handle latch, open and lock the door naturally.

B, U-shaped down beam, reinforce loading capacity.

C, Particular structure of baseplate, ensure the stability when stacked.

D,Spring hinge connect the reticular wire mesh, foldable when not in use.

E, Triangular metal clamp on the top to ensure the intensity of the spring hinge.

F, Auxiliary strengthened rib structure, ensure the stability when unfold.

G, Multiple spot welding technique, ensure the solidity and durability.

H, Independent bolt and drop gate for easy to fetch products when stacked.

3. Folding Method


4. Advantages

1. Inventory levels are visible, making it easy to monitor product levels at a glance
2. Convenient drop side gate design for access to products, even when containers are stacked
3. Four way fork entry, easily moved by forklift, even when fully loaded
4. Sturdy spiral hinges, welded, interlocking channel base, heavy-duty structure
5. Collapsible, Stackable design, folds flat for easy carry, recycle and storage when not in use
6. Custom sizes and options are available

5. Production Process





6. Applications
•Supermarket shelf, supermarket equipments (cashier desk,fruit and vegetable shelf, promotion cart, shopping cart, shopping basket, etc)
• Storage rack (angle slotted steel, heavy/medium/light duty storage rack), warehouse equipments
• Glass/wooden/titanium-alloy counter/cabinet, metal shelf, magazine rack
• Exhibition shelf, exhibition facilities, etc




7. Package&Delivery
Plastic banding +Stretch film wrapped,palletized for easy loading and unloading with standard forklift truck or pallet jack
1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements





FAQ
1.Q:Can according to customer design and production of products?
A: Sure, we have very rich experience in customizing .there are professional engineers help design the most suitable product for you
2.Q:I don't have drawing or picture available for custom products, could you design it?
A:Yes,we can make the best suitable design for you, but do need to know the details-such as
3. Q:I would like to have my own design products andI am asmall wholesaler, do you accept small order?
A:Yes,we can go with your custom design, no matter small or big qty, however, please understand the cost will be different.
4. Q: How do Iinstall ?
A:We provide detailed install instruction for every type .If needed, we can also ask engineers to teach you for free.
5.Q: How does your company do regarding quality control?
A:We have own technology team, each batch of goods will be strictly controlled, and issue inspection reports. the company's internal will have quality regulation, to ensure that every batch of products qualified and best quality.
6. Q:How about the warranty period ?
A:Under normally usage, the warranty period is within 12 months.
7. Q:What's the MOQ of each model ?
A:1 unit is acceptable and price varies from different quantities.
8.Q:What is your average production lead time?
A:15-30 Working days against formal order and deposit.
9.Q :May Iknow the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
10.Q :How can Iget your quick quotation for wire mesh container?
A:As usual, you should provide us the following information:
A. External size or Internal size(L*W*H)
B. Wire Diameter
C. Mesh Spacing
D. Loading Capacity
