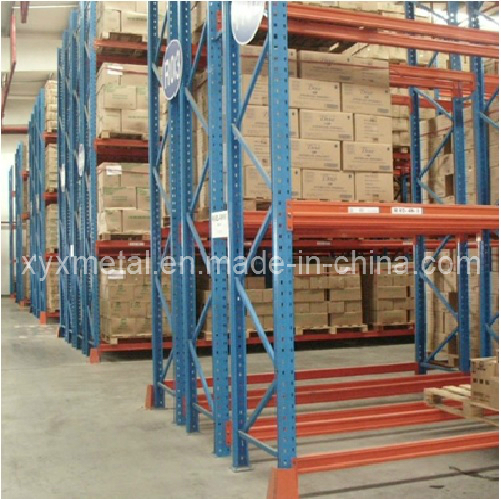

Warehouse DIY Heavy Duty Storage Shelf Pallet Rack

Heavy-duty storage rack is also called pallet rack, beam rack and storage shelf, they are most widely used which need to apply with forklift that can pick up freely any goods put on to the location with the feature of simply structure, easy operation, good storage and safety.

Heavy-duty beam racks can be used companied with different kinds of accessories, such as support bars, wire cages, steel pallets, wood pallets, steel meshes, etc, to meet different demands.

Heavy-duty beam rack usually has following features:

1), Color and size can be adjusted according to your requirements.
2), Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section and hole distance 50mm or 75mm.
3), Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4), Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5), Rich accessories: Upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6), Stable structure, large loading capacity, convenient sorting.
7), compatible with most type of handling equipment and building structures.
8), First level pallets can be placed on the floor.
9), Easy to install and dismantle.

Our normal standard type storage racks as below sheet:

Refer to the sheet, we have several normal standard types for your choice.
If there are not suitable one for you, we also accept your customized design.

Feature of Pallet racking (Sheet 1)
Meterial		High quality cold rolled steel. Q235b (equivalent to S235JR according to DIN EN10025 and Gr. D according to ASTM A283M)
Surface treatmet:		Podwer coating; Normal color(Orange or blue) or according to customer' s requirement.
Size	Height	2-11m (6.56-36.1ft), or according to customer' s requirements.
	Width	1.5-3.3m (4.92-10.82ft), or according to customer' s requirements.
	Length	0.8-1.2m (2.63-3, . 94ft), or according to customer' s requirements.
Thickness		Upright: 1.5-2.5mm; Beam: 1.5-2.0. Refer to below sheet 2 for more details.
Spec. of upright		60x55mm, 70x55mm, 90x70mm, 105X70mm, 120x90mm, etc.
Spec. of beam		80x50mm, 90x50mm, 100x50mm, 110x50mm, 120x50mm, 140x50mm, etc.
Loading capibility (per layer)		700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details.
Layer		2-5. or according to customer' s reqirement.
Packing detial:		Experienced export packing (uprights and beams' both end with cardboard, then outside bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement.
Delivery detial:		10-15 ton per 1x20ft container, 15-25 ton per 1x40ft container. 15-20 workdays after received the deposits.

Loading Capability and beam Spec. (Sheet 2)
Length(mm) Beam Spec.		1500	1800	2000	2300	2500	2700	3000	3300
		Load capability(kg)
80x50mm		3000	2300	1800	1500	1200	1000	800	700
100x50mm		4000	4000	3000	2400	2000	1750	1400	1100
120x50mm		4000	4000	4000	3500	3000	2500	2000	1800
140x50mm		4000	4000	4000	4000	4000	3800	3000	2500
