Detailed Description
Product Des
cription
Compact in design 50m pump mounted on 3-axle truck.
Efficient pump unit, ideal for long time use.
Agile placing boom with 5 arms with unfolding height 8.5m only, which gives a wide work range.
One side lateral support enables to work in narrow sites.
Co
ntroller is designed for heavy duty use, with a monitor, it mo
nitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
Rich in co
nfigurations and high quality components
Technical Parameters
| Distributionvalve | S-valve |
| Max.ConcreteOutput | m3/h | 180/90 |
| Max.ConcretePressure | bar | 70/110 |
| DeliveryCylinder | mm | 230 |
| StrokeLength | mm | 2100 |
| Strokes | 1/min | 27/17 |
| HopperCapacity | L | 550 |
| Fillingheight | mm | 1540 |
| HydraulicSystem | Open |
| Hydraulicoilcooling | Doublefans |
| High/LowPress.Switch | Manual |
| Lubricationonpump | Automatic |
| Lubricationonhopper | Automatic |
| GPSDataManage | Optional |
| BoomControlValve | Proportional |
| NumberofArms | | 5 |
| FoldingSystem | | RZ |
| Max.ReachVertical | m | 40.5 |
| Max.ReachHorizontal | m | 36.5 |
| Max.ReachDepth | m | 27 |
| Min.UnfoldingHeight | m | 8.5 |
| EndHoseLength | m | 3 |
| Pipeline | DN125/5.5 |
| SlewingRange | ±270° |
| SlewingMotor | 1Motor |
| RemoteControlSystem | Radio |
| WaterPump | 20L/min,60bar |
| Toolkitswithbox | Standard |

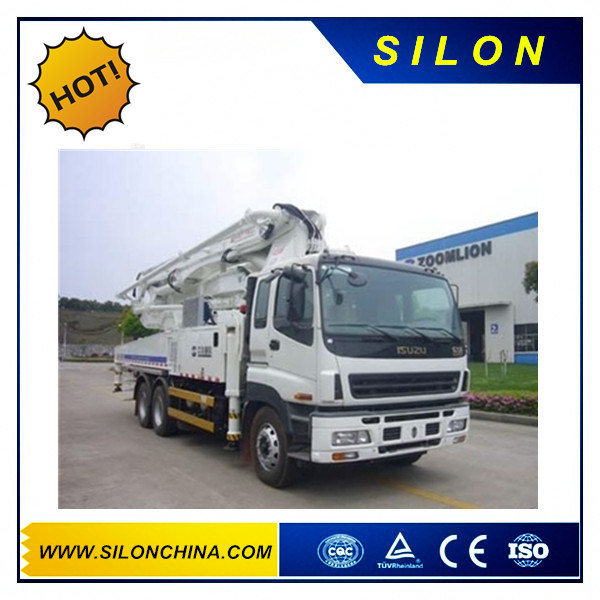

Product Image
