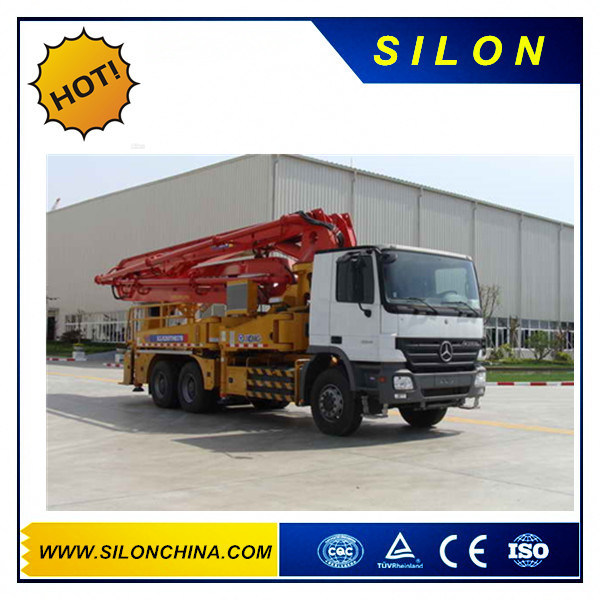

CE Approved 90m3 Truck Concrete Boom Pump Truck (HB48-B-C-D)

Product Description

HB48-B-C-D Truck-Mounted Concrete Pump is modern construction equipment for pouring concrete consecutively. It has features of good maneuverability, short pparation time, high efficiency, good construction quality, less pollution of the environment. It is widely used in large-scale infrastructure constructions such as bridge, electric power plant, steel works, water disposal plant and high-rise building constructions.

HB48-B-C D concretepumpadoptsHinoFSIERV(6X4)threeaxlechassis,excellentpower
performanceandgoodeconomicsFrontXtypeoutriggercouldoperateononeside,andopensemi-outriggerinnarrowarea.5sectionRZtypefoldedboomneedssmallspaceforboomfoldingandunfolding.Themainvehiclepumpingadoptsopeneddeliverytechnology,fullyhydraulicreversingtechnology,intelligentpumpingdampingtechnology,smallpumpingreversingimpact.Theconcretepistoncouldwithdrawautomatically.TheelectricalsystemadoptsPLCcontrolwithcolordisplayscreen,showingtherunningparametersoftheequipment.Theapplicationoftheengineenergysavingtechnologyandtrouble-shootingtechnologyimprovestheeconomics,reliabilityandsafetyoftheconcretepump
Itisthefirst40mconcretepumpwiththreeaxlechassisinChina,andthefirstmachineadoptingXtypeoutrigger,andthefirstconcretepumpadopting5-sectionRZtypefoldedboomfor40-mlevelinChina.





Technical Parameters

Travel
Category	Item		Unit		Parameter		Parameter			Parameter
Chassis	Model				FM		Actros4141			FY1EWV
	Manufacturer				VOLVO		GermanyBENZ			Hino
	Max.speed		km/h		94.8		85			85
	Max.gradeability				35%		38%			39.90%
	Min.turningdiameter		m		24.605		25.9			24.4
	Brakedistance		m		≤10		≤10			≤10
	Wheelbase		mm		1995+4405+1370		1700+4600+1350			1850+4605+1310
	Tread(front/rear)		mm		2028/1837		2034/1804			2050/1855
	Approachangle/departureangle		.		17/10		22/10			18.2/10
	Min.clearance		mm		270		300			240
	Tyrespecification				315/80R22.5		315/80R22.5			315/80R22.5
Engine	Model				D13		OM501LA.III/17			E13CTL
	Outputpower		kw/(r/min)		294/1400~1800		300/1800			331/1800
	Max.torque		N.m/(r/min)		2200/1050~1400		2000/1080			1912/1100
	Displacement		l		12.8		11.946			12.913
	EmissionStandard				NationIIIGBIII		NationIIIGBIII			NationIIIGBIII
Others	Dimension(lengthxwidthxheight)		mm		12632×2500×3995		12590×2500×3995			12515×2500×3995
	Totalvehicleweight		kg		41000		41000			40000
	Fueltankcapacity		l		410		400			400
	Fuelconsumptionper100km		l/100km		40		40			40
Pumpingoperation
Pumpingsystem		Theoreticaloutput(highpssure/lowpssure)		m3/h		90/138		90/150
		Concretepumpingpssure(highpssure/lowpssure)		Mpa		13/8.7		13/8
		Theoreticalpumpingtimes(highpssure/lowpssure)		/min		18/27		13/21
		Max.diameterofpumpingconcreteaggregate		mm		40
		Feedingheight		mm		1540
Placingboom		Pumpingslumprange		cm		12-23
		Reachheight		m		48.1
		Reachdepth		m		34
		Slewingradius		m		42.75
		Slewingangle		.		370
		1stboomstretchangle		.		90
		2ndboomstretchangle		.		180
		3rdboomstretchangle		.		180
		4thboomstretchangle		.		250
		5thboomstretchangle		.		250
		OutriggerspanOveralloutriggerspan		mm		10500
		Frontoutriggertransversespan		mm		10450
		Rearoutriggertransversespan		mm		10300
Others		Dosingtype				Svalve		S-valve
		Lubricatingmethod				Automaticlubrication		Automatic
		Controllingmethod				Manual/remotecontrol		Manual/Remotecontrol
		Watertankcapacity		l		600
		Max.pssureofwaterpump		Mpa		2
