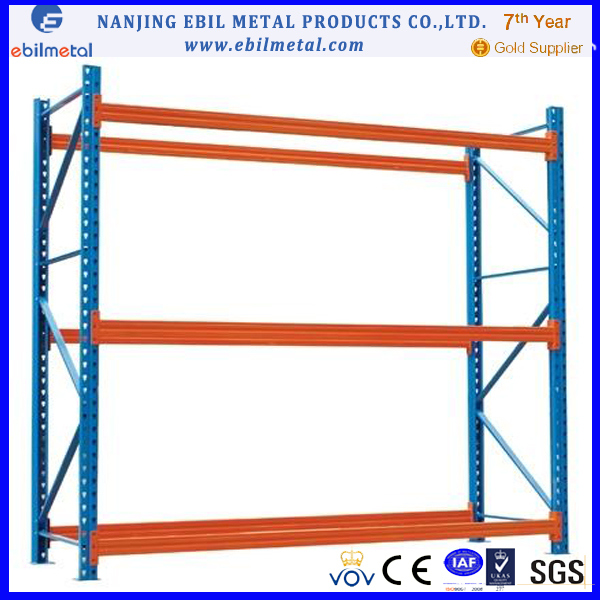

Nanjing Foctory Near Shanghai Warehouse Heavy Duty Shelving Pallet Rack

Steel Pallet racks/Selective Pallet Rack

Selective pallet rack is the most common pallet racking system in use today. Selective pallet racks typically come in one of two configurations: A roll formed, or clip-in configuration, and a structural bolt-together configuration. Roll formed selective rack is most commonly manufactured in a "teardrop" style. The nickname teardrop comes from the fact that the holes on the column of the upright are shaped like a teardrop. Pallets then rest on the horizontal load beams that are held in place by mounting clips. Because the clips on teardrop configurations can be quickly moved, the shelves can be easily adjusted to different heights to accommodate various load sizes. This is convenient for a warehouse that needs to store a wide variety of product sizes. Structural pallet rack systems are very similar to roll formed pallet rack systems except the horizontal load beams are attached to the uprights with bolts and have much greater weight-bearing capacity. Also, structural pallet racking can be designed into the structure of the building itself, so that the upright columns are simultaneously used to support the roof of the storage facility, in which case the structural pallet rack uprights replace the storage buildings vertical support I-beams. This system is a rack supported building. Very Narrow Aisle (VNA) is the use of selective pallet racking in a tighter configuration to provide maximum space utilization within a storage facility. These systems typically operate in conjunction with wire-guided or rail-guided reach-truck systems. A wire-guided system consists of a wire embedded in the concrete floor that provides tracking for the reach-truck.

1.Future of pallet rack	1)Beamleversareadjustablein 50.8mm,75mmpitchinterval. 2)Differentsizes,variousspecificationsandcolorsareavailableaccordingtoyourdifferentneeds. 3)Maximizesspaceutilityratiowhileretainingoptimumproductaccessibility. 4)Strengthandrigiditypventscompssiondamagetogoods. 5)Bottomlevelofpalletscanbestoredonthefloor,loweringstructurecosts
2.Material	HighgradeQ235BCold Rolled Steel
3.Finish for pallet rack surface	High-qualityPowderCoatingFinishing.
4.Load Capacity	Loadingcapacity: 700-4000kgs/beamlevel. Height:1500-10000mm Depth:900-1200mm ( decided by pallet size), back-to-back 1900-2700mm Length:2300/2400/2500/2700/3300/3900 ,2 or 3 pallets per level, according to pallet size,3-6 layer Specialsizesalsoavailabletospecificstorageneeds.
5.Main Parts	1)Uprights2)beams3)Horizontal&diagonalbracings,(4)uprightfootplates, (5)safetylockingpins, (6)bolts&nuts,(7)anchorsandallnecessarycomponents.
6.Certificates	CEcertified, ISO9001, SGS
7.Quick delivery	Usually within 15 workingworkdays, Certainly,it also according to quantity
