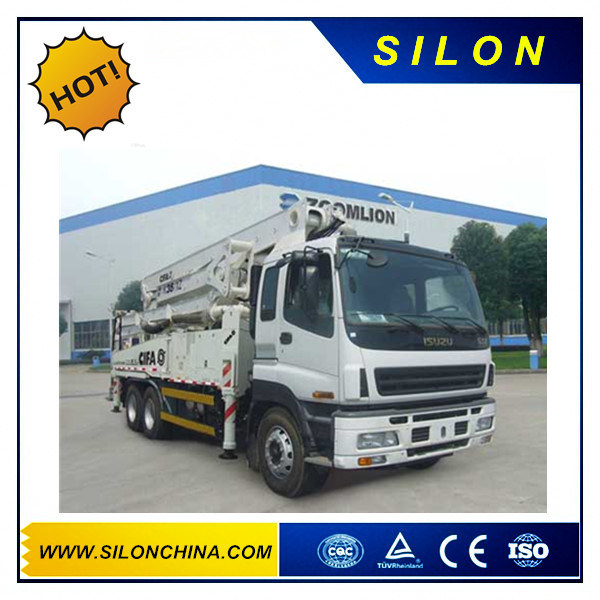

37m Concrete Pump Concrete Pump Truck (37X-4Z)

Product Description


1) Compact in design, 37m pump mounted on 3-axle truck.
2) Efficient pump unit, ideal for long time use.
3) Agile placing boom with 4 arms with unfolding height 8.9m only, which gives a wide work range.
4)One side lateral support enables to work in narrow sites.
5)Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on 6)working data management, real-time diagnostics, alarm logging, and service interval notice.
7)Rich in configurations and high quality components.







Technical Parameters

Distributionvalve	S-valve
Max.ConcreteOutput	m3/h	120/70
Max.ConcretePressure	bar	70/110
DeliveryCylinder	mm	230
StrokeLength	mm	2100
Strokes	1/min	22/13
HopperCapacity	L	550
Fillingheight	mm	1540
HydraulicSystem	Open
Hydraulicoilcooling	Doublefans
High/LowPress.Switch	Manual
Lubricationonpump	Automatic
Lubricationonhopper	Automatic
GPSDataManage	Optional
BoomControlValve	Proportional
NumberofArms		4
FoldingSystem		Z
Max.ReachVertical	m	37
Max.ReachHorizontal	m	33
Max.ReachDepth	m	23.8
Min.UnfoldingHeight	m	8.9
EndHoseLength	m	3
Pipeline	DN125/5.5
SlewingRange	270
SlewingMotor	x1
RemoteControlSystem	Radio
WaterPump	20L/min,60bar
Toolkitswithbox	Standard
