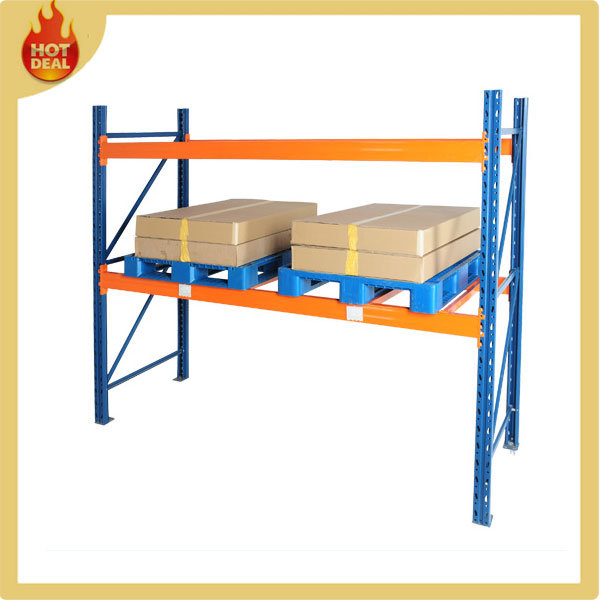

Storage Steel Heavy Weight Pallet Rack

Storage Steel Heavy Weight Pallet Rack
1). Features
1. The most popular and economical racking in warehouse;
2. Upright is formed by high-quality cold rolled steel, with an omega shaped section and hole distance 50mm or 75mm;
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm;
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety;
5. Rich accessories: Upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.;
6. Stable structure, large loading capacity, convenient sorting;
7. Compatible with most type of handling equipment and building structures;
8. First level pallets can be placed on the floor.

2). Our rack pallet advantages:
1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: Upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.

3). Our advantages:
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc. )

Material		Q235
Surface treatment		powder coating,Orange, blue or according to customer' s requirement.
Size	Height	2-11m (6.56-36.1ft), or according to customer' s requirements.
	Width	1.5-3.3m (4.92-10.82ft), or according to customer' s requirements.
	Length	0.8-1.2m (2.63-3.94ft), or according to customer' s requirements.
Thickness		Upright: 1.5-2.5mm; Beam: 1.5-2.0mm. Refer to below sheet 2 for more details.
Spec. of upright		60x55mm, 70x55mm, 90x70mm, 105X70mm, 120x90mm, etc.
Spec. of beam		80x50mm, 90x50mm, 100x50mm, 110x50mm, 120x50mm, 140x50mm, etc.
Loading capability (per layer)		700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details.
Layer nos.		2-7 layers. or customized.
Packing detail:		Experienced export packing (uprights and beams' both end with cardboard, then bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement.
Delivery detail:		10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits.
