Radio Shuttle Storage Pallet Rack

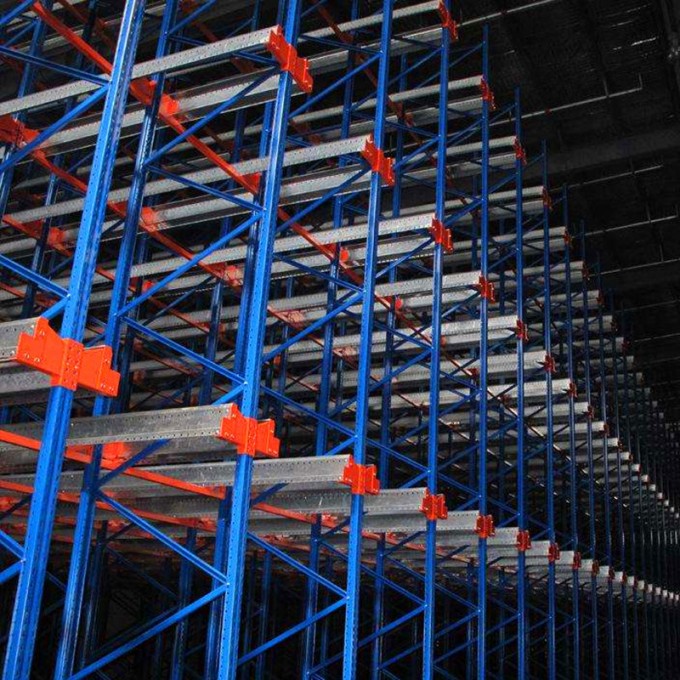

Radio Shuttle Rack
Shuttle rack system is a storage system composed of high density storageracking, shuttleand forklift. This new concept storage racking system is more powerful in operation than that of traditional storage racking, which enable itto take advantage of warehouse spacesufficiently. The space utilization rateis more than 80%.



Features of Shuttle Racks

Pallet-loading:
When loading, the pallets are placed at the front of the racking tunnel rail by forklift. By the radio remote control operation, the shuttle carries pallets running on the rail of racking.
Pallet-picking:
When Picking, the shuttle carries pallets from deep side to the front side of racking, the pallets are to be picked from the racking by forklift.
Shuttle-removing:
Shuttles can be removed by forklift to different tunnels of racking, one set of shuttle can be used for many racking tunnels. The quantity of shuttle depends on the depth of racking tunnels, goods, and frequency of goods picking, Etc.







Business Information

Model	Radio Shuttle Rack
Pallet Size	A) W1200*D1000mm		B)W1200*D1200mm				C) W1200*D1100mm			D) W1200*D800mm
Materials Optional	A) Quality Steel Q235A used for normal temperature storage situation
	B) Quality Steel Q235B used for cold storage room
	C) Environmental protection powder for surface treatment--powder coating
Craft-work	A) hole-punching	B) cold rolling				C) welding			D) powder coating
Structure	A) bolted structure					B) welded structure
Color	A) as to our standard model					B) according to customer's requests
Pack model	A) standard export packing					B) according to customer's requests
Package material	A) transparent and dust-proof poly-sheet
	B) hard carton paper
	C) long and thin plywood bar
	D) plywood pallet; steel and plastic straps
	E) air bag used when loading container
MOQ	5-10 sets; the model is subject to your requirements
Payment	A) T/T				B) LC			C) Paypal or Western Union
Warranty	A) one year against manufacturing defect
	B) offer lifetime consultation on problems occurred
Quantity	A) 20'container			B) 40'container				C) a sample order
	17500kgs			26000kgs				1 set
Delivery time	In 15 days			In 20 days				In 7 days
Note	All racks can be customized

Packing & Container Loading




Please provide information for quick quotation

1. Pallet Size (Length*Width*Loading Height in mm)
2. Layout or Dimension (Length*Width*Net Height mm) of your warehouse
3. Rack Size (Length*Width*Depth in mm if available,if not, we shall design for you)
4. How many bays and levels if available
5.Loading Capacity(kg) of each pallet if available

FAQ
a: May Iknow the status of my order?
We will send you photos or video to help you understand.

b: Quick manufacturing time
For Normal orders, we suppose to finish within 15 working days.
As amanufacturer, we can ensure the delivery time according to the formal contract.

c: What is delivery times?
Normally, delivery time is within 20 workdays.

d: What is the term of payment?
T/T:30% deposit in advance after confirmed order,
70% balance payment before shipment
WESTERN UNIOn, PAYPAL
