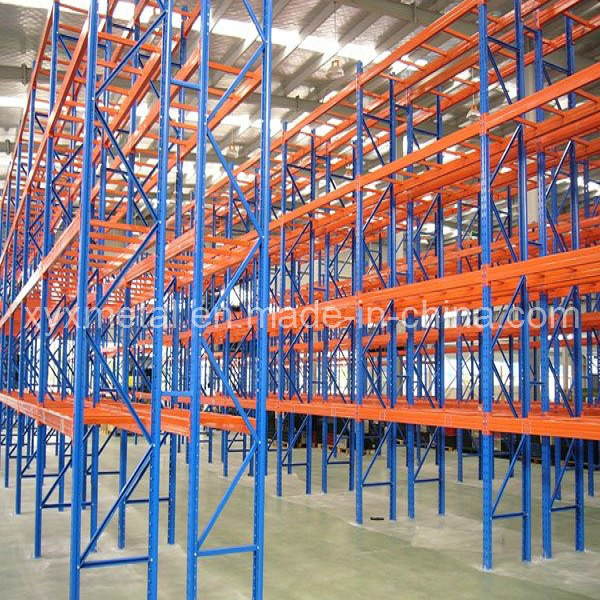

Wharehouse Storage Pallet Rack (HD-01)

Storage Rack Product DescriptionHeavy-duty storage rack is also called pallet rack, beam rack and storage shelf, theyare most widely used which need to apply with forklift that can pick up freely any goods put on to the location with the feature of simply structure, easy operation, good storage and safety.Heavy-duty beam racks can be used companied with different kinds of accessories, such as support bars, wire cages, steel pallets, wood pallets, steel meshes, etc, to meet different demands.

Product Feature
1. Loading capacity: 1000-4, 000 kgs /level & Max 15 ton each unit. 2.Height: 2, 000-11, 000mm3. Depth: 400-1, 500mm4.Length: 1, 500-3, 300mm5. Thickness: upright: 1.5-2.5mm, beam: 1.5-2.0mm6. Special sizes also avaiable to specific storage needs.

Our Storage Rack Advantages1. Color and size can be adjusted according to your requirements.2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.6. Stable structure, large loading capacity, convenient sorting.7. Compatible with most type of handling equipment and building structures.8. First level pallets can be placed on the floor.9. Easy to install and dismantle.Our Advantages1. High and stable quality.2. Delivery timely.3. Excellent rolling technology and patents4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc.)Our normal standard type storage racks as below sheet:Refer to the sheet, we have several normal standard types for your choice.If there are not suitable one for you, we also accept your customized design.





For More Products, Please Visit Our Website:
http://xyxmetal.en.made-in-china.com

Feature of Pallet racking
Meterial		High quality hot rolled steel. Q235B (equivalent to S235JR according to DIN EN10025 and Gr. D according to ASTM A283M)
Surface treatmet:		Podwer coating; Normal color(Orange or blue) or according to customer' s requirement.
Size	Height	2-11m (6.56-36.1ft), or according to customer' s requirements.
	Width	1.5-3.3m (4.92-10.82ft), or according to customer' s requirements.
	Length	0.8-1.2m (2.63-3, . 94ft), or according to customer' s requirements.
Thickness		Upright: 1.5-2.5mm; Beam: 1.5-2.0. Refer to below sheet 2 for more details.
Spec. of upright		60x55mm, 70x55mm, 90x70mm, 105X70mm, 120x90mm, etc.
Spec. of beam		80x50mm, 90x50mm, 100x50mm, 110x50mm, 120x50mm, 140x50mm, etc.
Loading capibility (per layer)		700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details.
Layer nos.		2-7 layers. or customized.
Packing detial:		Experienced export packing (uprights and beams' both end with cardboard, then bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement.
Delivery detial:		10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits.
