Automantic Storage Radio Shuttle Pallet Rack

The high density pallet storage solution

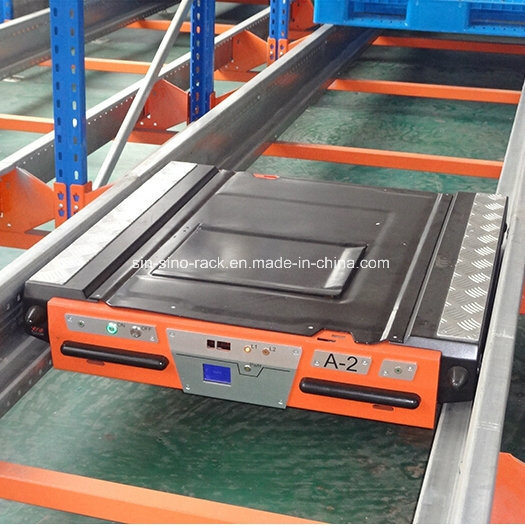

AUTOSAT is an automatic shuttle able to transform into an automatic warehouse all the drive-in racking systems, assuring the maximum use of the warhousing, making the facility more productive and efficient. AUTOSAT, powered by an innovative Lithium lon battery easy to recharge and managed by placed in the appropriate channel by means of a standard fork lift.

Applications:

Autosat benefits:

-The operator's work is front warehouse. -No stress for the operator. -No damage to the goods. -No damage to the drive-in racking -Space optimization -Warehouse efficient organization. -Quick and silence movements. -Quickness working. -No modification to the fork lift. -Able to be used in the existing drive-in system. -Easy to use. -Custom set up.

-Minimum manteinance. -State of the art safety systems. -Lithium lon innovative technology. -Battery pack easy to change. -Innovative placement. -Effective auto stop system with load on board. -Machine operation data nonce on the display. -Autoservice: the skilled, easy, effective AUTOSAT maintenance manual buggy. -Suitable mode for frozen area up to -30.C. -Service all over the world.

Models and Dimensions

Model	Load Max.Kg	Depth Pallet mm	Wide Pallet front mm	A mm	B mm	C mm	Stroke mm	Weight kg	D mm	E Min.mm	F Min.mm
SAT.0812.ST.LTH	1500	800	1200	878	174	955	45	180	843	300	270
SAT.1012.ST.LTH	1500	1000	1200	1078	174	955	45	200	843	300	270
SAT.1212.ST.LTH	1500	1200	1200	1298	174	955	45	220	843	300	270
SAT.4840.ST.LTH	1500	1220	1016	1298	174	828	45	210	716	300	270
SAT.4048.ST.LTH	1500	1016	1220	1078	174	955	45	200	843	300	270

Technical Information

Shuttle performances		Motors
Speed with load on board	~20-33m/min	Travelling power motor	700W
Speed without load on board	~63-66m/min	Lifting power motor	400W
Working range	10-12-16h
Battery		Remote
Type	Lithium-lon MNC	Type		Radio-frequency
Voltage	24V	Display		LCD 16*2
Capacity	53Ah	Protection		IP65
Weight	~13kg	Power		Battery
Charging station power	EU 240/50Vac/HZ US 115/60 Vac/HZ	Charging battery		500mAH-4.8V
Charaing time at 20 for 80% level	3H	Max consumption during transmission
Charaing time at 20 for 100% level	5,5H	Max consumption during receiving
Battery life with correct use	Min.900 charging	Stand-by function		Stand-by mode active after 3min.of not use
Batteryquantity on board	1	Battery life(at 20OC) With correct use		Continuous 10h Stand-by 1300h

Features:

Working temperature	ST:from+50C up to +450C BZ: from+40C up to -300C
Colors	Chassis RAL 6032 lid RAL 7035

Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.




Specification:

Specifications of Beam
Type		Item	Height(mm)	Width(mm)	Thickness(mm)
P style Pipe(Step Beam)		1	50	30	1.5
		2	60	40	1.5
		3	80	50	1.5
		4	110	70	1.5
		5	140	70	1.5
		6	160	70	1.5
Box Beam		7	80	50	1.5
		8	100	50	1.5
		9	110	50	1.5
		10	120	50	1.5
		11	140	50	1.8
		12	160	50	2.0

Specifications of Upright
Item	Width(mm)	Depth(mm)	Thickness(mm)	Loading Capacity(kg)
1	85	67	1.6	7000
2	85	67	1.8	8500
3	85	67	2.0	10000
4	85	67	2.3	12500
5	100	67	1.8	10500
6	100	67	2.0	12000
7	100	67	2.3	13800
8	100	95	2.0	12000
9	100	95	2.3	14500
10	100	95	2.5	16000
11	100	95	2.75	18000
12	100	95	3.0	20000
13	120	95	2.5	17000
14	120	95	2.75	19000
15	120	95	3.0	21000

AS4084 Certificate&ISO9001




about SIN-SINO
Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.



Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.Sin-Sino United looks forwards to being part of your success!
