70m (6X4) Volvo 294kw Concrete Pump Trucks with Rhd Type

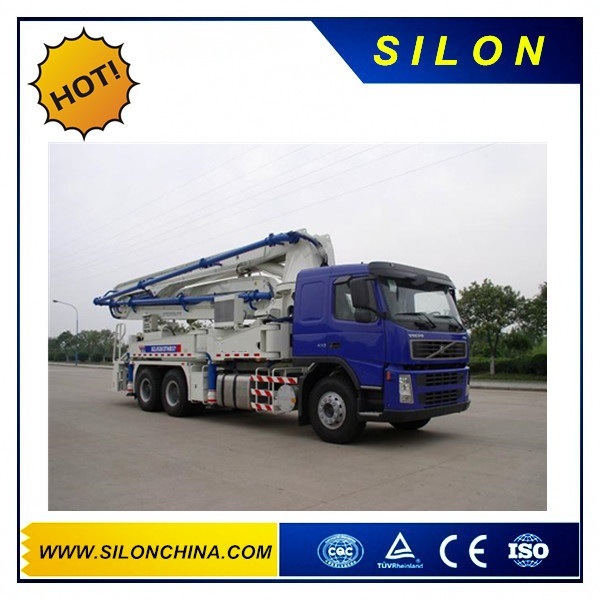

HB40Truck-Mounted Concrete Pump is modern construction equipment for pouring concrete consecutively. It has features of good maneuverability, short pparation time, high efficiency, good construction quality, less pollution of the environment. It is widely used in large-scale infrastructure constructions such as bridge, electric power plant, steel works, water disposal plant and high-rise building constructions.

1)Highconfigurationimportedpumpandmotorensurethereliability hydraulicandelectricalsystems.

2)Theimportedhydraulicoilfilterensuresthecleannessofthehydraulicsystem

3)Theadoptedlatestclosedandvariablehydraulicsystemofconstantpowerhasthefullpowertakeoff featuring3MPalessinpssureloss,andsavingtheenergyby10%.

4)Theuniqueproductinthehydraulicsystem-SNvalvereducestheimpact whenchangingthe
directionandsettlesthe issueofvibrationofthepump,increasingthestabilityofthemachine.

5)TheadoptedStypechangevalveandnewcenterpumpingsystemfeaturehigherefficiency,longer lifeandmoreconvenientmaintenance.

6)Keeptheinclinationoftheoptimizedhopperinthebestposition,andadopttheautomaticrotationdevicewhichcouldkeepthehopperfromblockingbythestone.

7) Deliverypump,reducerpiperandglassesboardandcuttingringadoptthehigh-abrasivematerial,prolongingtheservicelifeofthewearingparts.
Loadsensingelectro-hydraulicproportionalcontrolvalvefeaturesexcellentfinemobilityandquickresponse.
8) Intelligentexperience
9)Xoutriggerandonesideoperation.
10) Highandlowpssurechangefreely.
11) Multipleboomfoldingmethodssuchas"R"and"RZ"typefeatureslargeplacingarea.
12)Theimportedgreaseandoilautomaticlubricatingsystemprolongstheservicelifeofthemachineandfeatureseasymaintenance.Thesystemcouldautomaticallylubricatethekeypointswithhydraulicoil.
13)Theautomaticwithdrawingtechnologyoftroughinconcretepistonensureseasierandfasterreplacementofthepiston.
14)Preciseremotecontrolandreceivingdevicecouldget150mremotecontrol,decreasingtheoperationlaborandensuringthesafetyoftheworker.
15)Intelligentelectriccontrolboxrecordstheworkingpssureandtemperature,andtheenginerpmofthetruckpump,readyforcheckandrepair.Meanwhile,itadoptstheenergysavingtechnology.
16)Thewarningdeviceequippedontheplacingboomrealizestheinformationquickdeliveryamong workers,ensuringthesafeandefficientoperation.
17)Theapplicationofnightviewinggradienterandoutriggerwidelightensuresthesafeoperation machine.





Technical Parameters

Travel
Category	Item	Unit		Parameter
Chassis	Model			FM
	Manufacturer			VOLVO
	Max.speed	km/h		90.8
	Max.gradeability			34.70%
	Min.turningdiameter	m		18.4
	Brakedistance	m		≤7
	Wheelbase	mm		4900+1370
	Tread(front/rear)	mm		2019/1834
	Approachangle/departureangle	.		18/10
	Min.clearance	mm		270
	Tyrespecification			12.00R20
Engine	Model			D13
	Outputpower	kw/(r/min)		294/1400-1800
	Max.torque	N.m/(r/min)		2000/1050-1400
	Displacement	l		12.8
	EmissionStandard			NationIIIGBIII
Others	Dimension(Length×Width×Height)	mm		11180×2500×3990
	Totalvehicleweight	kg		32600
	Fueltankcapacity	l		410
	Fuelconsumptionper100km	l/100km		40
Pumpingoperation
Pumpingsystem	Theoreticaloutput(highpssure/lowpssure)		m3/h	70/140
	Concretepumpingpssure(highpssure/lowpssure)		Mpa	11.8/6.38
	Theoreticalpumpingtimes(highpssure/lowpssure)		/min	15/27
	Max.diameterofpumpingconcreteaggregate			40
	Feedingheight			1450
Placingboom	Pumpingslumprange			12-23
	Reachheight			39.8
	Reachdepth			27.9
	Slewingradius			35.8
	Slewingangle			370
	1stboomstretchangle			90
	2ndboomstretchangle			180
	3rdboomstretchangle			180
	4thboomstretchangle			240
	5thboomstretchangle			250
	Outriggerspan		Overalloutriggerspan	7800
			Frontoutriggertransversespan	8350
			Rearoutriggertransversespan	7200
Others	Dosingtype			Svalve
	Lubricatingmethod			Automaticlubrication
	Controllingmethod			Manual/remotecontrol
	Watertankcapacity			600
	Max.pssureofwaterpump			2
