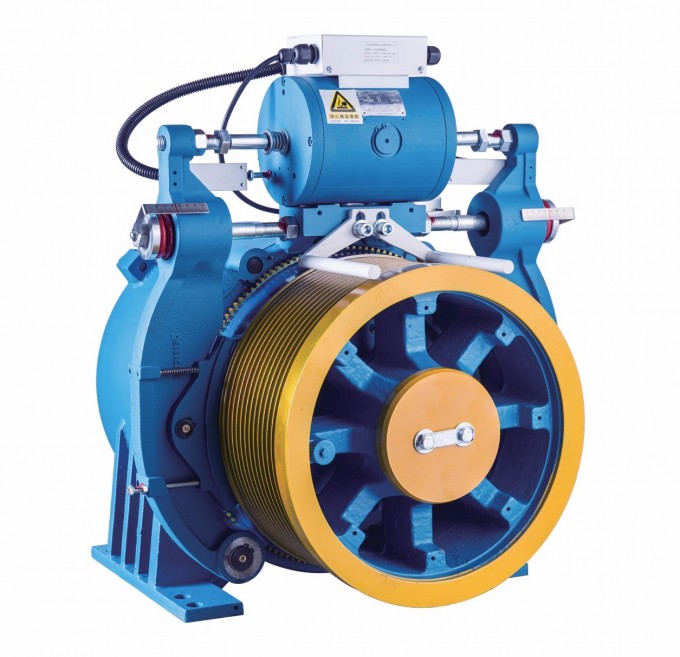

Permanent-magnet Synchronous Gearless Machine for Elevators (WTYF250 Series)

OUR ADVANTAGES

1.We have taken the lead in developing permanent magnet synchronous gearless traction machine successfully in china,achieving six items of "the whole nation first".
2.We have20 years' export experienceand are ready to serve your market.
3.More than thirty years in elevator spare parts.
4.Aleaderin Mainland China.
5.We can provide high qualitytechnical support.
6.We guaranteefirst-rate services.

PRODUCT DESCRIPCTION

Product Name	Lift escalator gearless traction machine gearless elevator machine
Traction ratio	2:1
Rated capacity	630, 800, 1000, 1250, 1350, 1600kg
Rated elevator speed	1, 1.6, 1.75, 2.0m/s
Max. lifting height	80m
Max. shaft load	5000 KGS
Applicable converter	3 phase 400V
Brake voltage	DC200V for brake opening, and DC100V for brake holding
Number of motor poles	30 poles
Certificate	ISO9001 /CCC /CE
Features	Low-energy, Low noises, Non-pollution, Less maintenance
Payments	T/T, L/C

Don't hesitate to contact us if you have any questions.
PRODUCTS SHOW


Overall dimensions and mounting dimensions
