Elevator Parts with Fishplate Rail Clips (OS23)

T Type Forged Clips:

Applicable Guide Rail Size		A	B	C	D	E	F	G	H	I
T45/A, T50/A, T65/A	M10	32	22	15	12	5.5	5	11	23	2
T70-1/B, T75-3/B, T78/B	M12	39	26	19	15	7.3	6.5	13	27	3
T89/B, T90/B	M14	45	29	21	18.5	9.5	8	13	34	4
T114/B, T127-1/B	M16	50	34	22	20.5	10.5	8.5	15	40	4
T127-2/B, T140-1/B, T140-2/B	M18	55	37	22	23	13	11	17	42	4

Re:
1. T type forged clips are made exactly according to customers' design, which are suitable for T45/A to T140 rail etc.
2. Each full set of T type clips include four parts: T Bolt, Nut, Plain Washer and Lock Washer.
3. Its finish options include plain (self colored), galvanized or zinc plated. Product threading can be offered in UNC, UNF or metric.

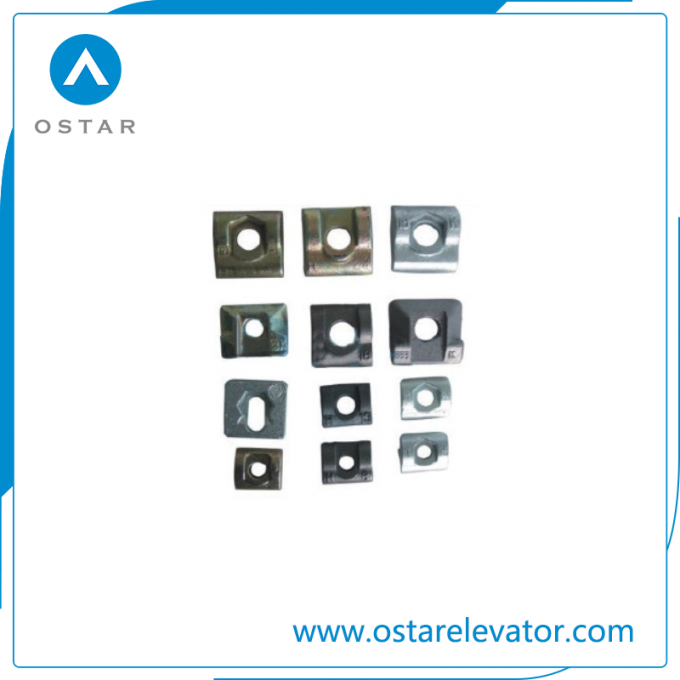

Drop Forged/ Casting Clips:

Applicable Guide Rail Size	pcs/box
T75-3/B	300
T89/B, T90/B	200
T114, T127-1/B, T127-2/B	100
T140-2/B	25
T140-3/B	25

Re:
1. Drop forged clips is suitable for guide rails of T75, T89, T127, T140-2, T140-3 etc. We are able to design develop and manufacture drop forged clips according to customers' drawings.
2. Drop forged clips is also available in different carbon steel according to specific requirements and its finish options include plain (self colored), galvanized or zinc plated.

WHY CHOOSE US?
Save Cost: we will combine the best cost-effective products for customer service.
Save Time: well-educated sales team will provide professional p-sale and after-sale service.
Trail Order Available:even one piece can be ordered from OSTAR with a competitive price, it would be very helpful for your business.
Worry Free: experienced engineers can help you with design solution, mechanical drawing and technical support.

FAQ
Q1: What is the lead time of guide rail?
Our lead time is within 15 working days upon receipt of down payment and confirmed technical documents.
Q2: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q3: Do you have any certificate for your products?
Yes, we have ISO and CE certificate for spare parts.
