Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)
Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)

Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)

Categories: other , Elevators & Lifts , Parts for Elevator & Funicular Car
FOB Price:0.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:51 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Contact Supplier
Company Profile
Shanghai Sunny Elevator Co., Ltd. 1 YRS
Contact:MrWeiChen
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1-49人 People
View the Seller's Store
product detalls
Detailed Description

Wire Ropes with Steel Core/Mixed Core(IWRC/IWRF) / Traction System
Characteristics:Preformed, bright, right hand, regular lay
Application:Suspension ropes for elevator speed <4m/s, building height ≤100m

Nominal rope diameterApprox.weightMinimum breaking load

1320/1770
1320/1620

1370/1770

1570/1770
1620/1770

157016201770
IWRCIWRFIWRCIWRFIWRCIWRFIWRCIWRFIWRCIWRFIWRCIWRFIWRCIWRF
mmkg/100mkNkNkNkNkNkN
82625.934.233.635.835.23837.435.835.236.936.340.339.4
93332.843.342.545.344.548.247.345.344.546.745.95150.2
9.536.736.648.247.450.449.653.752.850.449.65251.256.955.9
1040.740.553.452.555.95559.558.555.95557.756.76362
1149.24964.663.567.666.579.170.767.666.569.868.676.275
1258.658.376.975.680.579.185.684.280.579.18381.690.789.2
12.765.665.386.184.790.188.695.994.390.188.69391.510299.9
1368.868.490.288.794.592.910098.894.592.997.598.5106105
1479.879.4105103110108117115110108113111124121
14.383.282.8109107114112122120114112118116129127
1591.691.1120118126124134132126124130128142139
16104104137134143141152150143141148145161159
17.5125124164161171168182179171168177174193190
18132131173170181178193189181178187184204201
19147146193190202198215211202198208205227224
20163162214210224220238234224220231227252248
20.6173172227223237233252248237233245241267263
22197196258254271266288283271266279274305300
Rope selection | Areas of application
Rope constructionApplicationRemarks
Class and type of coreConstruction
6x19FC

6x19S+SFC
6X19W+SFC
6X25Fi+SFC

Governor ropes

Recommendation:
NFC for suspension ropes;SFC for governor ropes

6x19S+NFC
6X19W+NFC
6X25Fi+NFC

Suspension ropes for low-rise,
low-speed elevators

8x19FC

8x19S+SFC
8X19W+SFC
8X25Fi+SFC

Governor ropes

8x19S+NFC
8X19W+NFC
8X25Fi+NFC

Suspension ropes for elevator speed
≤2m/s, building height ≤60m

Please specify when ordering if elevator speed >2m/s
8x19 Steel core

8x19S+8x7+1x19W
8x19W+8x7+1x19W
8x25Fi+8x7+1x19W

Suspension ropes for elevator speed
<4m/s, building height ≤100m

Q/320205KABW02-2009

A technical agreement
needs to be signed for
ordering these ropes.
Products comply to:
Q/320205KABM02-2009

8x19 Mixed core

8x19S+8x7+FC
8x19W+8x7+FC
8x25Fi+8x7+FC
8x19S+5x7+FC

Suspension ropes for elevator speed
<4m/s, building height ≤100m

9x19 Steel core

9x17S+9x7+1x19W
9x19S+9x7+1x19W
9x19W+9x7+1x19W
9x21Fi+9x7+1x19W
9x25Fi+9x7+1x19W

Suspension ropes for elevator speed
≥4m/s, building height >100m

9x19 Mixed core

9x17S+9x7+FC
9x19S+9x7+FC
9x19W+9x7+FC
9x21Fi+9x7+FC
9X25Fi+9x7+FC

6x36 FC

6x29Fi+FC
6x36WS+FC

Compensating ropes
Ropes used by major elevator manufacturers
ApplicationRope Construction

Nominal rope diameter
mm

Nominal rope grades
N/mm²

Japanese
manufacturers

Governor ropes

6x19S+FC
8x19S+FC

Φ6.0~Φ10

1320/1770
1620/1770
1770

Suspension ropes

8x19S+FC
8x25Fi+IWRC

Φ8~Φ16

1320/1770
1620/1770

European/
American
manufacturers

Governor ropes

6x19S+FC
8x19S+FC

Φ6.0~Φ10

1370/1770
1570/1770
1570
1770
1960

Suspension ropes

8x19S+FC
8x19W+FC
8x19S+IWRC
8x19W+IWRC
8x25Fi+FC
9x19S+IWRC
9x21Fi+IWRC

Φ8~Φ16

1370/1770
1570/1770
1570

Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)
Our factory:
Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)
Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)
Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)
Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC)

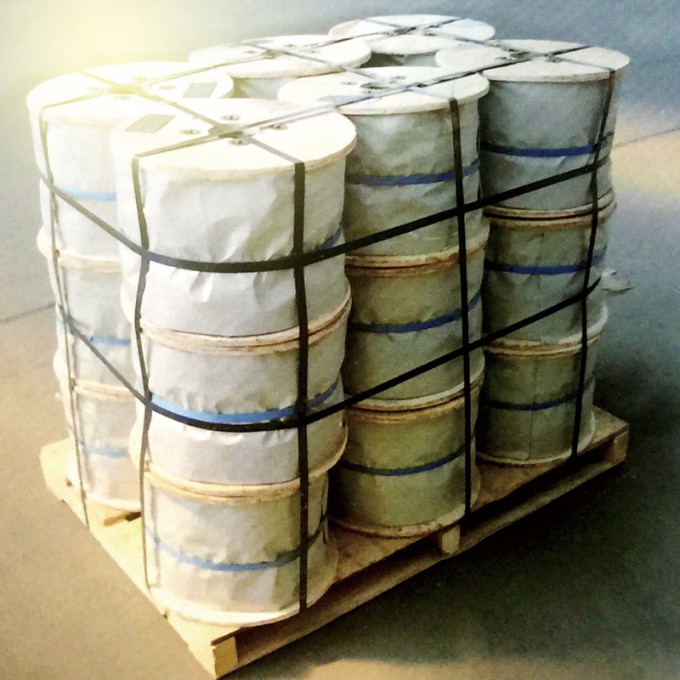

Product Image
Right Hand Regular Lay Wire Ropes with Steel Core (8X19S+IWRC) Image1
