Detailed Description
Specification:
| Diameter | Aperture | Rope |
| Φ240 | Φ25 | Φ8*2-20 |
| Φ8*3-14 |
| Φ320 | Φ25 | Φ8*2-20 |
| Φ35 | Φ8*3-14 |
| Φ8*4-14 |
| Φ400 | Φ50 | Φ10*3-16 |
| Φ10*4-16 |
| Φ10*5-16 |
| Φ10*6-16 |
| Φ520 | Φ55 | Φ12*3-18 |
| Φ12*4-18 |
| Φ12*5-18 |
| Φ640 | Φ60 | Φ13*4-20 |
| Φ13*5-20 |
| Φ13*6-20 |
| Diameter | Aperture | Number of Slots | Rope | Slot Pitch | Thickness | Bearing | Rated Load |
| D | E | N | d | P | H | h | | Q |
| Φ240 | 80 | 2 | 6.5 | 10 | 42 | 60 | 6206 | ≤450KG |
| 80 | 3 | 6.5 | 10 | 42 | 80 | 6208 | ≤800KG |
| 90 | 4 | 6.5 | 10 | 52 | 80 | 6210 | |
| 110 | 5 | 6.5 | 10 | 65 | 80 | 6212 | ≤1000KG |
| Φ320 | 110 | 3 | 8 | 12 | 52 | 80 | 6212 | ≤630KG |
| 13 |
| 4 | 8 | 12 | 65 | 80 | ≤800KG |
| 13 |
| 5 | 8 | 12 | 72 | 80 | ≤1000KG |
| 13 |
| 130 | 6 | 8 | 12 | 90 | 95 | 6312 | ≤1600KG |
| 13 |
| 140 | 7 | 8 | 12 | 104 | 95 | 6216 | ≤1600KG |
| 13 |
| 8 | 8 | 12 | 115 | 120 |
| 13 |
| Φ360 | 110 | 3 | 8 | 12 | 52 | 80 | 6212 | ≤630KG |
| 3 | 9 | 13 |
| 4 | 8 | 12 | 65 | 80 | ≤800KG |
| 4 | 9 | 13 |
| 5 | 8 | 12 | 78 | 95 | ≤1000KG |
| 5 | 9 | 13 |
| 130 | 6 | 8 | 12 | 90 | 95 | 6312 | ≤1600KG |
| 6 | 9 | 13 |
| 140 | 7 | 8 | 12 | 108 | 95 | 6313 | ≤1500KG |
| 7 | 9 | 13 |
| 150 | 8 | 8 | 12 | 115 | 115 | 6314 | ≤2000KG |
| 8 | 9 | 13 |
Package:
Advantages:
1. Factory passed ISO9001
2. We've exported to many countries, and built stable business relationships with customers from over 30 countries.
3. We get highly trusted about the quality from our customers.
4.Our policy is to offer our customers direct and complete support, in terms of materials, components and services provided before and after every sale.
WHY CHOOSE US?
Save Cost: we will combine the best cost-effective products for customer service.
Save Time: well-educated sales team will provide professio
nal p-sale and after-sale service.
Trail Order Available:even one piece can be ordered from OSTAR with a competitive price, it would be very helpful for your business.
Worry Free: experienced engineers can help you with design solution, mechanical drawing and technical support.

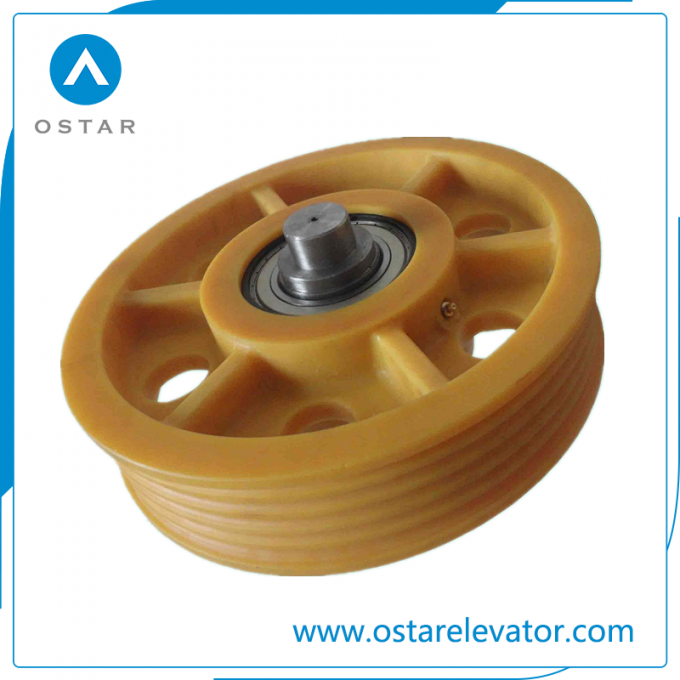

Product Image
