Drawing of fishplate
Type and paremeter of fishplate
| Type | d | k2 | b2 | b3 | l1 | l2 | l3 | v | h3 |
| Tolerance |
| | | ±1.5 | ±0.2 | ±1.5 | ±0.2 | ±0.2 | +2 | ±0.05 |
| T45/A | 9 | | 50 | 25 | 160 | 65 | 15 | 8 | |
| T50/A | 9 | | 50 | 30 | 200 | 75 | 25 | 8 | |
| T70/A | 13 | | 70 | 42 | 250 | 105 | 25 | 8.5 | |
| T70/B | 14.28 | | 46 | 70 | 300 | 114.3 | 38.1 | 10 | |
| T75-3/B | 13 | | 75 | 43 | 240 | 90 | 30 | 8.5 | |
| T78/B | 13 | | 75 | 43 | 240 | 90 | 30 | 8.5 | |
| T82/B | 13 | | 80 | 50.8 | 216 | 81 | 27 | 8.5 | |
| T89/B | 13 | | 90 | 57.2 | 280 | 114.3 | 38.1 | 13 | |
| T90/B | 13 | | 90 | 57.2 | 280 | 114.3 | 38.1 | 13 | |
| T114/B | 17 | | 115 | 74 | 300 | 114.3 | 38.1 | 17 | |
| T127-1/B | 17 | | 130 | 79.4 | 305 | 114.3 | 38.1 | 17 | |
| T127-2/B | 17 | | 130 | 79.4 | 300 | 114.3 | 38.1 | 17 | |
| T140-1/B | 21 | | 140 | 92.1 | 380 | 152.4 | 31.8 | 25 | |
| T140-2/B | 21 | | 140 | 92.1 | 380 | 152.4 | 31.8 | 25 | |
| T140-3/B | 21 | | 140 | 92.1 | 380 | 152.4 | 31.8 | 30 | |
| TK3 | 10 | 5 | 72 | 43 | 220 | 90 | 30 | 2.5 | 34 |
| TK5 | 12 | 10 | 87 | 53 | 350 | 150 | 50 | 4 | 56 |
| TK3A | 12 | 10 | 78 | 45 | 200 | 75 | 25 | 4 | 56 |
| TK5A | 12 | 10 | 78 | 45 | 200 | 75 | 25 | 4 | 56 |

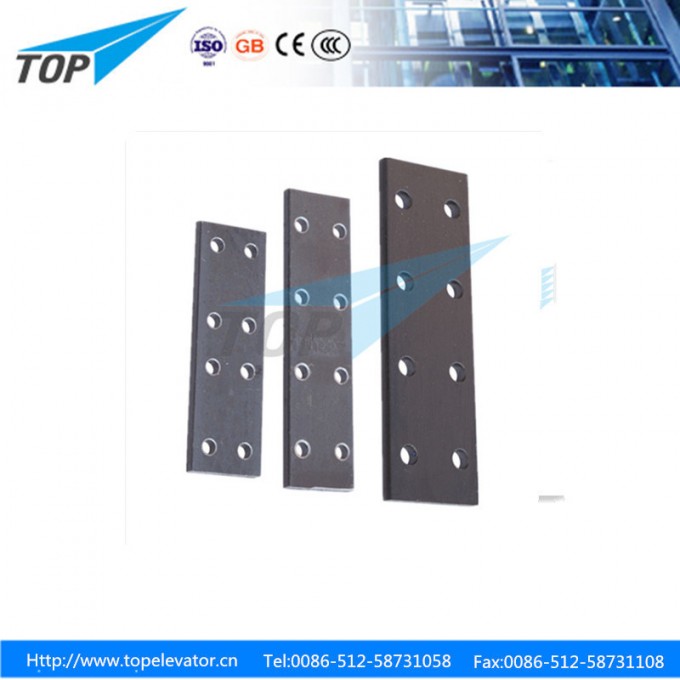

Product Image
