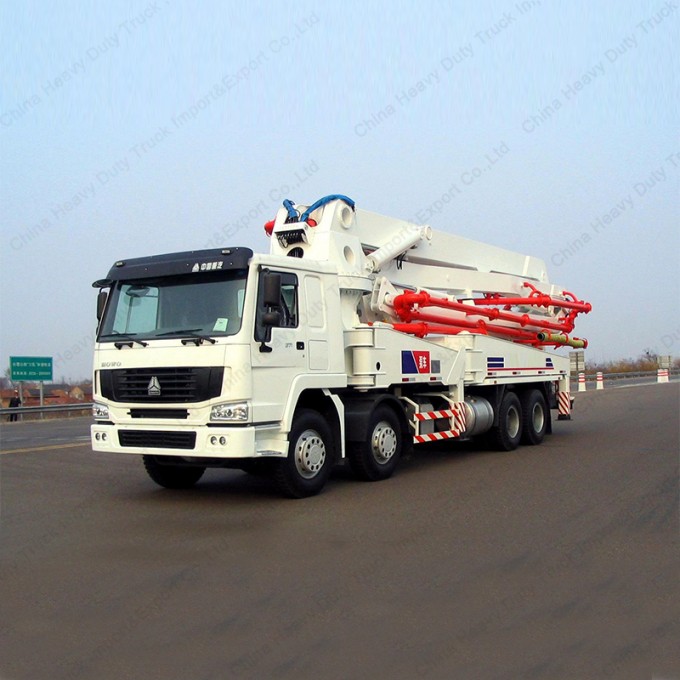

Sinotruk Truck Mounted Concrete Pump Mixer Concrete Pump Truck

Truck mounted concrete pump mixer Concrete Pump Truck

1. The HOWO series from SINOTRUK offers you great value for your money.
It comes without all the fancy items that only look impssive on the specification sheet, but aren't really needed in your daily operation. What you get is thought through and proven quality components that make these 6x 4dump truck reliable and easy to drive. Developed with the driver's comfort and safety in mind, you get exactly what you need: Just agreat truck. Simple and reliable.

1.1 Better aerodynamics with improved front
Improved aerodynamics: Better fuel economy, which again improves your bottom line. Easy access for maintenance.

1.2 Ergonomically designed workspace
Ergonomically designed driver's seat: Easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.

1.3 Acomfortable ride with air suspended seats
Air-suspended driver and passenger seats: Relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.

1.4 Ample power when you need it
WD615.47, Euro II emission standard, 4stroke direct injection diesel 6cylinder in-line engine with water cooling, turbo-charging &intercooling. Maximum output: 371hp (273Kw) at 2200 rpm according to DIN and maximum torque 1500 Nm at at 1100~1600 rpm. Meanwhile, WD615.69, WD615.87, WD615.62 is optoinal



2. Concrete Pump Truck Main Specifications:

Category	Item	Measuring Unit	21m		25m
Engine	Output power	KW/(r/min)	97/2600	132/2500	249/2000	132/2500
Pumping Systems	Max. Theor, output(high/low pssure)	M3/h	37/63	50/80	60/100	50/80
	Max. Theor. Concrete output pssure(high/low pssure)	Mpa	13/7.5	13/7.5	12/8	13/7.5
	Pumping frequency(high/low pssure)	Min-1	14/24	19/30	14/23	19/30
	Concrete cylinder dia. ×stroke	Mm	Φ200×1400	Φ200×1400	Φ200×1800	Φ200×1650
	Feeding height	Mm	1450	1450	1450	1450
Placing Boom	Structure type		3R	3R	4M	4M
	Placing boom max height/depth/radius	M	21/10.5/17	21/10.5/17	25/14.4/21	25/14.4/21
	Slewing angle	°	365	365	365	265
Vehicle Paramaters	Overall dimensions	Mm	9570×2180×3495	9400×2480×3535	10283×2480×3670	9800×2480×3535
	Total weight	Kg	14680	15940	19000	15800

2. Our Factor
SINOTRUK has an annual output of 180, 000 vehicles and 200, 000 engines capacity.





3. Packing &Delivery &Main products &Our Service



4. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions

5. FAQ

Q1:I don't want this configuration

A: The configuration can be changed according to your needs.

Q2: Minimum order quantity?

A: MOQ is 1unit.

Q3:Productionperiod?

A:(Truck &trailer)Within 30days since the moment we got your down payment. (Parts)Within 7days since the moment we got your down payment.

Q4: Payment term?

A:(Truck &trailer)30%T/T as deposit, the balance should be paid before delivery. or L/C. (Parts)100%T/T should be paid before delivery.

Q5: Shipping?

A:(Truck &trailer) by container or RoRo/Bulk shipment. (South America,Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laos etc.) (Parts) by international courier service, such asDHL, TNT, UPS, or Fedex.The goods above $1000 can be shipped by sea.

Q6: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.

6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

7. Company information
China Heavy Duty Truck import&Export Co., Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. If you want to buy any truck, trailer or truck parts, please contact us!
We sincerely hope to cooperate with you to expand market in your country!
