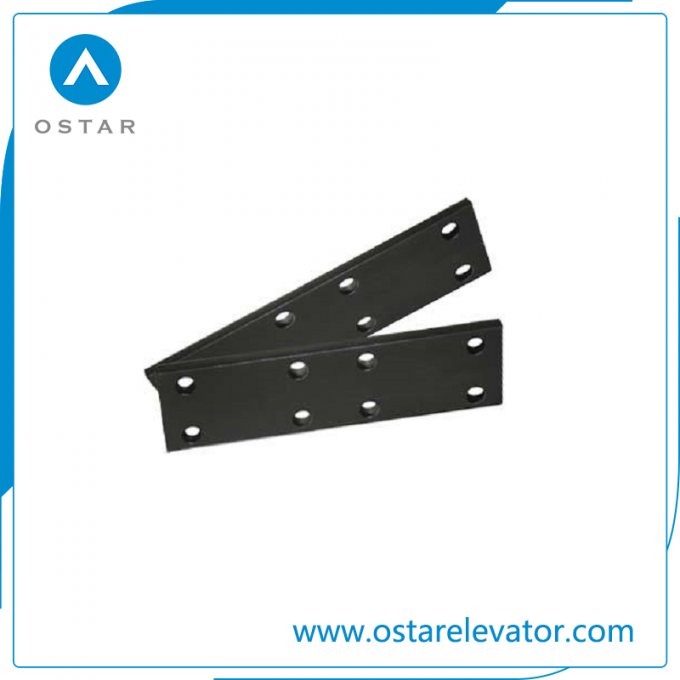

Lift Components Elevator Guide Rail Fishplate with Best Price (OS22)

Specification:

Type	d	b2	b3	l1	l2	l3	v	Fastener
Tolerance		1.5	0.2	1.5	0.2	0.2	-0/+2
T45/A	9	50	25	160	65	15	8	M8
T50/A	9	50	30	200	75	25	8	M8
T70-1/B	13	70	42	250	105	25	8.5	M12
T75-3/B	13	75	43	240	90	30	10	M12
T78/B	13	90	43	240	90	30	10	M12
T89/B	13	90	57.2	305	114.3	38.1	13	M12
T90/B	13	90	57.2	305	114.3	38.1	13	M12
T114/B	17	115	74	305	114.3	38.1	17	M16
T127-1/B	17	130	79.4	305	114.3	38.1	17	M16
T127-2/B	17	130	79.4	305	114.3	38.1	17	M16
T140-1/B	21	140	92.1	380	152.4	31.8	25	M20
T140-2/B	21	140	92.1	380	152.4	31.8	25	M20
T140-3/B	21	140	92.1	380	152.4	31.8	30	M20

Type	b2	h3	h	u	b3	l1	l2	l3	Fastener
Tolerance		1	0.2		0.5	1.5	0.5	0.3
TK3	72	40	6	3	43	220	90	30	M10
TK5	88	59	10	4.5	50	400	180	20	M12
TK3A	78	50	12	3	45	200	75	25	M10
TK5A	78	50	10	4	45	200	75	25	M10

Production & Shipment


WHY CHOOSE US?
Save Cost: we will combine the best cost-effective products for customer service.
Save Time: well-educated sales team will provide professional p-sale and after-sale service.
Trail Order Available:even one piece can be ordered from OSTAR with a competitive price, it would be very helpful for your business.
Worry Free: experienced engineers can help you with design solution, mechanical drawing and technical support.

FAQ
Q1: What is the lead time of guide rail?
Our lead time is within 15 working days upon receipt of down payment and confirmed technical documents.
Q2: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q3: Do you have any certificate for your products?
Yes, we have ISO and CE certificate for spare parts.
