Detailed Description
Details:
Voltage: 380V
Suspension: 2:1
Brake: DC110V 2*0.88A
Weight: 350kg
Max. Static Load: 3000kg
Specification:
| Load (kg) | Lift Speed (m/s) | Height (m) | Sheave Dia. (mm) | Rope Sheave (mm) | Current (A) | Torque (Nm) | Rated Speed (rpm) | Frequency (Hz) | Power (kw) | Pole |
| 630 | 0.5 | ≤80 | Φ400 | 4*Φ10*16 | 6.1 | 450 | 48 | 8 | 2.3 | 20 |
| 630 | 1.0 | ≤80 | Φ400 | 4*Φ10*16 | 10.6 | 450 | 96 | 16 | 4.5 | 20 |
| 630 | 1.5 | ≤80 | Φ400 | 4*Φ10*16 | 16.5 | 450 | 144 | 24 | 6.8 | 20 |
| 630 | 1.6 | ≤80 | Φ400 | 4*Φ10*16 | 16.5 | 450 | 153 | 25.5 | 7.2 | 20 |
| 630 | 1.75 | ≤80 | Φ400 | 4*Φ10*16 | 18 | 450 | 167 | 27.8 | 7.9 | 20 |
| 630 | 2 | ≤80 | Φ400 | 4*Φ10*16 | 20.3 | 450 | 192 | 32 | 9 | 20 |
| 800 | 0.5 | ≤80 | Φ400 | 5*Φ10*16 | 7.3 | 550 | 48 | 8 | 2.8 | 20 |
| 800 | 1.0 | ≤80 | Φ400 | 5*Φ10*16 | 12.8 | 550 | 96 | 16 | 5.5 | 20 |
| 800 | 1.5 | ≤80 | Φ400 | 5*Φ10*16 | 20.8 | 550 | 144 | 24 | 8.3 | 20 |
| 800 | 1.6 | ≤80 | Φ400 | 5*Φ10*16 | 20.8 | 550 | 153 | 25.5 | 8.8 | 20 |
| 800 | 1.75 | ≤80 | Φ400 | 5*Φ10*16 | 21.8 | 550 | 167 | 27.8 | 9.6 | 20 |
| 800 | 2 | ≤80 | Φ400 | 5*Φ10*16 | 24.9 | 550 | 192 | 32 | 11 | 20 |
| 1000 | 0.5 | ≤80 | Φ400 | 5*Φ10*16 | 9 | 670 | 48 | 8 | 3.4 | 20 |
| 1000 | 1.0 | ≤80 | Φ400 | 5*Φ10*16 | 15.7 | 670 | 96 | 16 | 6.7 | 20 |
| 1000 | 1.5 | ≤80 | Φ400 | 5*Φ10*16 | 25.2 | 670 | 144 | 24 | 10 | 20 |
| 1000 | 1.6 | ≤80 | Φ400 | 5*Φ10*16 | 25.2 | 670 | 153 | 25.5 | 10.7 | 20 |
| 1000 | 1.75 | ≤80 | Φ400 | 5*Φ10*16 | 26.7 | 670 | 167 | 27.8 | 11.7 | 20 |
| 1000 | 2 | ≤80 | Φ400 | 5*Φ10*16 | 30.3 | 670 | 192 | 32 | 13.4 | 20 |
| 1150 | 0.5 | ≤80 | Φ340 | 8*Φ8*12 | 9 | 670 | 56 | 9.4 | 3.9 | 20 |
| 1150 | 1.0 | ≤80 | Φ340 | 8*Φ8*12 | 15.7 | 670 | 112 | 18.7 | 7.9 | 20 |
| 1150 | 1.5 | ≤80 | Φ340 | 8*Φ8*12 | 25.2 | 670 | 168 | 28 | 18.1 | 20 |
| 1150 | 1.6 | ≤80 | Φ340 | 8*Φ8*12 | 25.2 | 670 | 180 | 30 | 61.2 | 20 |
| 1150 | 1.75 | ≤80 | Φ340 | 8*Φ8*12 | 26.7 | 670 | 198 | 33 | 193 | 20 |
| 1150 | 2 | ≤80 | Φ340 | 8*Φ8*12 | 30.3 | 670 | 225 | 37.5 | 158 | 20 |
Shipment:
FAQ
Q1: What is the lead time of your traction machine?
Our lead time is within 25 working days upon receipt of down payment and co
nfirmed technical docu
ments.
Q2: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q3: What is the guarantee for your elevator?
Our guarantee period is one year; but not includes damage caused by the human reason or force majeure.
Q4: Do you have any certificate for your products?
Yes, we have ISO and CE certificate for spare parts.

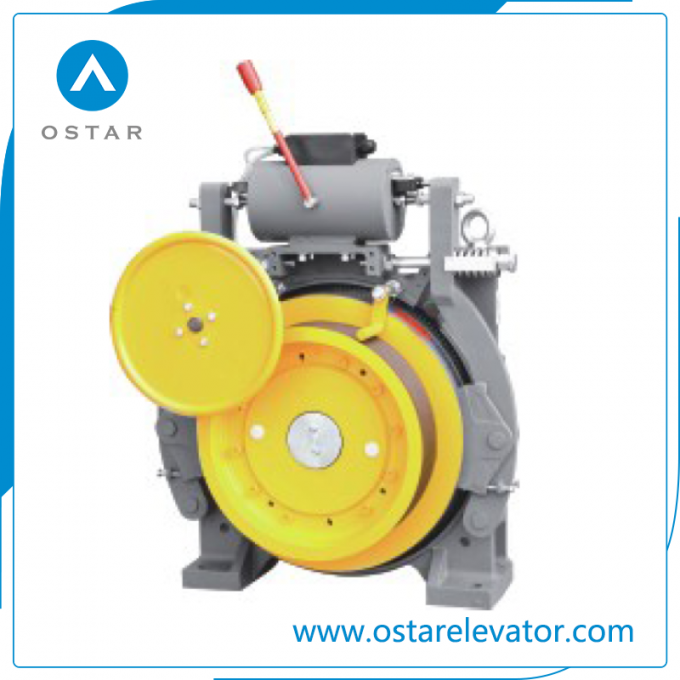

Product Image
