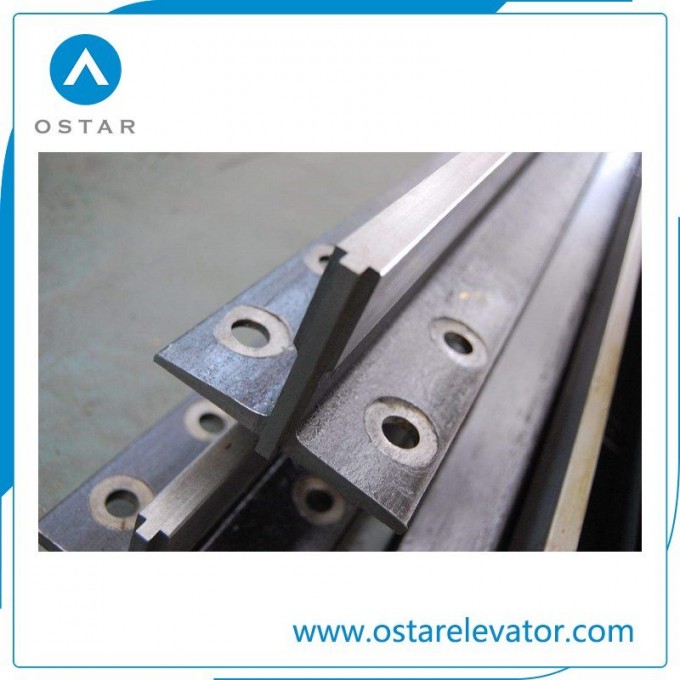

T Type Machined Elevator Guide Rail with Factory Price (OS21)

Specification of elevator guide rail and accessories:

Type	Guide Rail Size (mm)	Fishplate Size (mm)	Clip	Screw
T70-1/B	70*65*9	250*70*10	8k	M12*35
T75-3/B	75*62*10	240*75*10	8k	M12*35
T78/B	78*56*10	240*75*10	8k	M12*35
T82/B	82.5*68.25*9	216*80*10	13k	M12*35
T89/B	89*62*16	305*90*13	13k	M12*40
T90/B	90*75*16	305*90*13	13k	M12*40
T114/B	114*89*16	305*120*18	18k	M16*50
T127-2/B	127*89*16	305*130*18	24k	M16*55

Chemical Composition & Mechanical Property of guide rail steel:

CODE/STANDARDS		Rail Compositions (%)					(N/mm2or MPa)		(%)
		C	Si	Mn	P	S	Yield Stress	Tensile Strength	Elongation
ISO 630		<0.21	<0.4	<1.5	<0.045	<0.045	>275	410~540	>22
YB/T 157-1999	Q235A	0.14~0.22	<0.3	0.30~0.65	<0.045	<0.050	>235	375~460	>26
YB/T 15-1999	Q235A	0.18~0.28	<0.3	0.40~0.70	<0.045	<0.050	>255	410~510	>24

Production & Shipment


WHY CHOOSE US?
Save Cost: we will combine the best cost-effective products for customer service.
Save Time: well-educated sales team will provide professional p-sale and after-sale service.
Trail Order Available:even one piece can be ordered from OSTAR with a competitive price, it would be very helpful for your business.
Worry Free: experienced engineers can help you with design solution, mechanical drawing and technical support.

FAQ
Q1: What is the lead time of guide rail?
Our lead time is within 15 working days upon receipt of down payment and confirmed technical documents.
Q2: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q3: Do you have any certificate for your products?
Yes, we have ISO and CE certificate for spare parts.
