Detailed Description
Product Des
cription
1)Compactindesign,22mpumpmountedon2-axletruck,totalweightislessthan16tons.
2)Efficientpumpunit,idealformediumjobs.
3)Agileplacingboomwith3armsandunfoldingheight6.41m which canworkrange innarrowjobsite.
4)Controllerisdesignedforheavydutyuse,withamonitor,itmonitorsthepumpintelligentlyonworkingdatamanagement,real-timediagnostics,alarmlogging,andserviceintervalnotice.
5)Richinconfigurationsandhighqualitycomponents.
Technical Parameters
| Distributionvalve | S-valve |
| Max.ConcreteOutput | m3/h | 100/60 |
| Max.ConcretePressure | bar | 80/120 |
| DeliveryCylinder | mm | 230 |
| StrokeLength | mm | 1700 |
| Strokes | 1/min | 14/23 |
| HopperCapacity | L | 550 |
| Fillingheight | mm | 1540 |
| HydraulicSystem | Open |
| Hydraulicoilcooling | Doublefans |
| High/LowPress.Switch | Manual |
| Lubricationonpump | Automatic |
| Lubricationonhopper | Automatic |
| BoomControlValve | Proportional |
| NumberofArms | | 3 |
| FoldingSystem | | Z |
| Max.ReachVertical | m | 21.6 |
| Max.ReachHorizontal | m | 18.2 |
| Max.ReachDepth | m | 11.4 |
| Min.UnfoldingHeight | m | 6.41 |
| EndHoseLength | m | 3 |
| Pipeline | DN125/4 |
| SlewingRange | 365 |
| SlewingMotor | 1 |
| RemoteControlSystem | Radio |
| WaterPump | 15L/min,120bar |
| Toolkitswithbox | Standard |

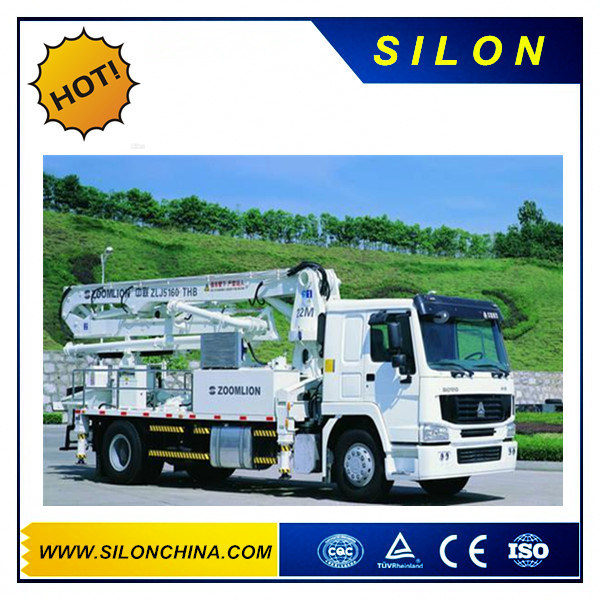

Product Image
