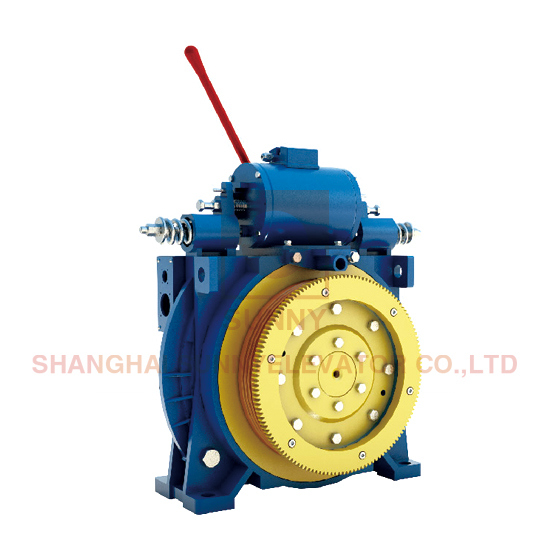

Elevator traction machine (SN-MCG100)
Model Name: SN-MCG100
| Product Name: | Montanari Elevator Machine for Home Elevator (SN-MCG100) | Voltage: | 380V |
|---|
| Roping: | 2:1 | Wrap: | Single |
|---|
| Elv. Load: | 320~630kg | Elv. Speed: | 0.5~1.75m/s |
|---|
| Sheave Diam: | 320mm | Duty: | S5-40%ED |
|---|
| Starts Per Hour: | 240st/h | Max. Static Load: | 2500kg |
|---|
| Weight: | 200kg | Brake: | DC110V 2X1.3A |
|---|
| IP Code: | IP41 | Ins. Class: | F |
|---|
| Spec | Elv Load(kg) | Elv Speed(m/s) | Sheave Diam(mm) | Sheave Groove | Current(A) | Power(KW) | Speed(r/min) | Freq(Hz) | Torque(N.m) | Poles | L
mm | L1
mm | Undercut Angle(0) |
| 320-0.5A | 320 | 0.5 | 320 | 3xØ8x12 | 3 | 1.1 | 60 | 10.0 | 180 | 20 | 248 | 52 | 95 |
| 320-0.63A | 320 | 0.63 | 320 | 3xØ8x12 | 3 | 1.4 | 75 | 12.5 | 180 | 20 | 248 | 52 |
| 320-1.0A | 320 | 1.0 | 320 | 3xØ8x12 | 5 | 2.2 | 119 | 19.8 | 180 | 20 | 248 | 52 |
| 320-1.5A | 320 | 1.5 | 320 | 3xØ8x12 | 8 | 3.4 | 179 | 29.8 | 180 | 20 | 248 | 52 |
| 450-0.5A | 450 | 0.5 | 320 | 4xØ8x12 | 5 | 1.6 | 60 | 10.0 | 250 | 20 | 248 | 52 |
| 450-0.63A | 450 | 0.63 | 320 | 4xØ8x12 | 5 | 2 | 75 | 12.5 | 250 | 20 | 248 | 52 |
| 450-1.0A | 450 | 1.0 | 320 | 4xØ8x12 | 7 | 3.1 | 119 | 19.8 | 250 | 20 | 248 | 52 |
| 450-1.5A | 450 | 1.5 | 320 | 4xØ8x12 | 11 | 4.7 | 179 | 29.8 | 250 | 20 | 248 | 52 |
| 630-0.5A | 630 | 0.5 | 320 | 5xØ8x12 | 7 | 2.1 | 60 | 10.0 | 340 | 20 | 258 | 57 |
| 630-0.63A | 630 | 0.63 | 320 | 5xØ8x12 | 7 | 2.7 | 75 | 12.5 | 340 | 20 | 258 | 57 |
| 630-1.0A | 630 | 1.0 | 320 | 5xØ8x12 | 10 | 4.2 | 119 | 19.8 | 340 | 20 | 258 | 57 |
| 630-1.5A | 630 | 1.5 | 320 | 5xØ8x12 | 16 | 6.4 | 179 | 29.8 | 340 | 20 | 258 | 57 |
| 630-1.6A | 630 | 1.6 | 320 | 5xØ8x12 | 16 | 6.8 | 191 | 31.8 | 340 | 20 | 258 | 57 |
| 630-1.75A | 630 | 1.75 | 320 | 5xØ8x12 | 16 | 7.4 | 209 | 34.8 | 340 | 20 | 258 | 57 |
========================================
This is our hot product:
=============================================
a
bout us
Shanghai Sunny Elevator Co., Ltd, is located in Shanghai China. We are a 22-year professio
nal manufacturer specialized in designing and producing elevator parts with ISO9001 certification. We have fine quality management team and always offer our clients high quality and reliable products. Our turnover in 2013 is 5, 000, 000 USD.
We offer 3 year quality guarantee for all products. Our main products are: Traction Machine, Elevator Display, Elevator Light Curtain, Elevator Buttons, Photoelectric Switch, COP & LOP, Door Mechanism. And we provide best prices on: Guide Rail, Guide Shoe, Counterweight Filler, Rope fastening, Wire Rope, Safety Gear, Speed Governor, Oil Buffer, Maintenance box, Emergency leveling device, Elevator Intercom, Limit Switch, Fans and other parts for elevator.
Our long time clients include Hyundai (served as OEM), Hitachi, Otis, Mitsubishi, KONE, Guangri Elevator, WITTUR elevator etc.
