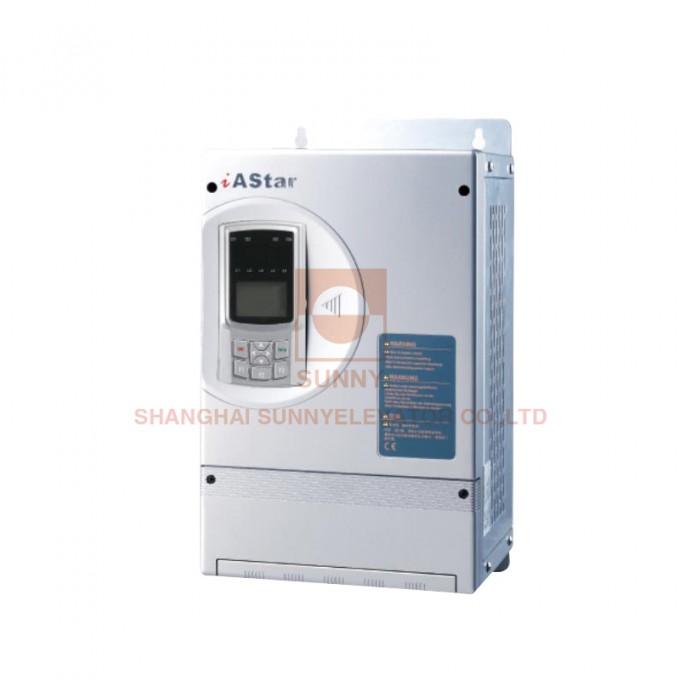

iAStar elevator door drive AS320, Elevator dedicated inverter
Product Features
· 32-bit motor dedicated digital signal processor DSP, programmable ultra-large-scale logic controller CPLD and intelligent power module IPM
· Innovative non-load sensor start-up compensation technology, the elevator without having to install the weighing device has excellent starting comfort
· Incremental ABZ Encoder for Synchronous Motor Control with No Load Sensor Actuation Compensation for Excellent Start Comfort
· Hardware adopts new module, the junction temperature can reach 175 ºC, low switching loss and turn-on, extend the service life
Dual 32-bit embedded microprocessors together to complete elevator operation and motor drive control
· Anti-interference ability design exceeds the highest level of industrial design requirements
With rich, advanced elevator operation function, can fully meet the various needs of customers
* Through CE, UL certification
| TYPEAS320 | Rated Capacity(KVA) | Rated output current(A) | Fit motor(KW) |
| 200V | |||
| 2S01P1 | 2.3 | 6.0 | 1.1 |
| 2S02P2 | 4.6 | 12 | 2.2 |
| 2S03P7 | 6.9 | 18 | 3.7 |
| 2T05P5 | 9.5 | 25 | 5.5 |
| 2T07P5 | 12.6 | 33 | 7.5 |
| 2T0011 | 17.9 | 47 | 11 |
| 2T0015 | 23 | 60 | 15 |
| 2T18P5 | 29 | 75 | 18.5 |
| 2T0022 | 32 | 80 | 22 |
| TYPEAS320 | Rated Capacity(KVA) | Rated output current(A) | Fit motor(KW) |
| 400V | |||
| 4T01P1 | 2.7 | 3.5 | 1.1 |
| 4T02P2 | 4.7 | 6.2 | 2.2 |
| 4S03P7 | 6.9 | 9 | 3.7 |
| 4T05P5 | 8.5 | 13 | 5.5 |
| 4T07P5 | 14 | 18 | 7.5 |
| 4T0011 | 18 | 27 | 11 |
| 4T0015 | 24 | 34 | 15 |
| 4T18P5 | 29 | 41 | 18.5 |
| 4T0022 | 34 | 48 | 22 |
| 4T0030 | 50 | 65 | 30 |
| 4T0037 | 61 | 80 | 37 |
| 4T0045 | 74 | 97 | 45 |
| 4T0055 | 98 | 128 | 55 |
| 4T0075 | 130 | 168 | 75 |
| TYPEAS320- | A(mm) | B(mm) | H(mm) | W(mm) | D(mm) | Install Φ(mm) | Install | Torque(Nm) | Weight(kg) | ||
| Bolt | Nut | Washer | |||||||||
2S01P1 2S02P2 2S03P7 | 100 | 288.5 | 300 | 160 | 166 | 5.0 | 4M4 | 4M4 | 4Φ4 | 2 | 4.5 |
2T05P5 2T07P5 2T0011 | 165.5 | 357 | 379 | 222 | 185 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 8.2 |
2T0015 2T18P5 2T0022 | 165 | 440 | 465 | 254 | 261 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 10.3 |
4T02P2 4T03P7 4T05P5 | 100 | 288.5 | 300 | 160 | 166 | 5.0 | 4M4 | 4M4 | 4Φ4 | 2 | 4.5 |
4T07P5 4T0011 | 165.5 | 357 | 379 | 222 | 192 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 8.2 |
4T0015 4T18P5 4T0022 | 165.5 | 392 | 414 | 232 | 192 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 10.3 |
4T0030 4T0037 | 200 | 512 | 530 | 330 | 290 | 9.0 | 4M8 | 4M8 | 4Φ8 | 6 | 30 |
| 4T0045 | 200 | 587 | 610 | 330 | 310 | 10.0 | 4M8 | 4M8 | 4Φ8 | 9 | 42 |
| 4T0055 | 200 | 587 | 610 | 330 | 310 | 10.0 | 4M10 | 4M10 | 4Φ10 | 14 | 42 |
| 4T0075 | 320 | 718 | 750 | 430 | 351 | 13.0 | 4M13 | 4M13 | 4Φ13 | 29 | 79.5 |
