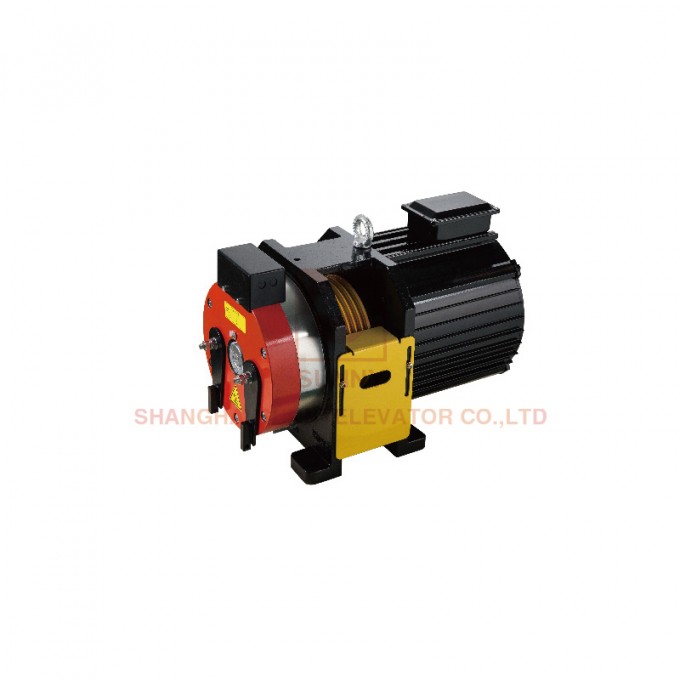

Europen Type Gearless Traction of Elevator Parts (SN-200-I SERIES)

Load:	320~2000kg	Voltage:	220V,380V
IP Code:	IP41	Speed:	0.4~1.0m/s
Brake Vol:	DC110V	INS.Class:	F
Roping:	2:1	Static Load:	3000kg/5000kg
Poles	16

Type	L1(mm)	L2(mm)
SN-BS90A	260	455
SN-BS90B	275	470
SN-BS180A	320	530
SN-BS180B	330	540
SN-BS180C	365	575

========================================

TYPE	Load (kg)	Speed (m/s)	Power (kw)	Frequency (Hz)	Speed (rpm)	Current(A) 380V/220V	Poles	Sheave (mm)	Rope nxa-b	Torque (Nm)	Brake Current (A)	Net weight (kg)
SN-FX200-1 SERIES Gearless Traction Machine Specification (roping 2:1)
SN-BS90A	320	0.4	0.9	10.2	76	4/6.9	16	Ø200	3xØ8-12	110	1.8	130
SN-BS90B	400	0.4	1.1	10.2	76	4.5/7.8	16	Ø200	3xØ8-12	135	1.8	150
SN-BS90B	450	0.5	1.5	12.8	96	5/8.7	16	Ø200	4xØ8-12	150	1.8	150
		1.0	3.0	25.6	192	7.4/12.8	16	Ø200	4xØ8-12	150	1.8	150
SN-FX230-1 SERIES Gearless Traction Machine Specification (roping 1:1)
SN-BS180A	320	0.4	0.9	5.1	38	5/8.7	16	Ø200	4xØ8-12	220	2.5	170
SN-BS180B	400	0.4	1.1	5.1	38	5.2/9	16	Ø200	4xØ8-12	270	2.5	180
SN-BS180C	450	0.5	1.5	6.4	48	7.6/13.2	16	Ø200	5xØ8-12	300	2.5	210
		1.0	3.0	12.8	96	9.2/16	16	Ø200	5xØ8-12	300	2.5	210
SN-FX230 SERIES Gearless Traction Machine Specification (roping 2:1)
SN-BS90A	320	0.4	0.9	8.8	66	4.5/7.8	16	Ø230	3xØ8-12	125	1.8	140
SN-BS90B	400	0.4	1.1	8.8	66	5.2/9	16	Ø230	3xØ8-12	155	1.8	190
SN-BS180A	450	0.5	1.5	11	82.5	4.6/8	16	Ø230	4xØ8-12	175	2.5	190
		1.0	3.0	22	165	7/12	16	Ø230	4xØ8-12	175	2.5	190
SN-FX230 SERIES Gearless Traction Machine Specification (roping 1:1)
SN-BS180B	320	0.4	0.9	4.4	33	4.8/8.3	16	Ø230	4xØ8-12	250	2.5	170
SN-BS180C	400	0.4	1.1	4.4	33	5.2/9	16	Ø230	4xØ8-12	310	2.5	170
SN-BS180C	450	0.5	1.5	5.6	42	5.9/10.2	16	Ø230	5xØ8-12	350	2.5	170
		1.0	3.0	11.2	84	9.4/16.2	16	Ø230	5xØ8-12	350	2.5	170
SN-FX240 SERIES Gearless Traction Machine Specification (roping 2:1)
SN-BS90B	320	0.4	0.9	8.6	64.5	4.4/7.6	16	Ø240	3xØ8-12	130	1.8	150
SN-BS90B	400	0.4	1.1	8.6	64.5	5.4/9.4	16	Ø240	3xØ8-12	160	1.8	180
SN-BS180A	450	0.5	1.5	10.4	78	4.8/8.3	16	Ø240	4xØ8-12	180	2.5	180
		1.0	3.0	20.8	156	7.3/12.7	16	Ø240	4xØ8-12	180	2.5	180
SN-BS180B	630	0.5	2.2	10.4	78	7.5/13	16	Ø240	5xØ8-12	250	2.5	180
		1.0	4.1	20.8	156	9.8/17	16	Ø240	5xØ8-12	250	2.5	180
SN-FX240 SERIES Gearless Traction Machine Specification (roping 1:1)
SN-BS180B	320	0.4	0.9	4.3	32	5/8.7	16	Ø240	4xØ8-12	260	2.5	180
SN-BS180C	400	0.4	1.1	4.3	32	5.4/9.3	16	Ø240	4xØ8-12	320	2.5	190
SN-BS180C	450	0.5	1.5	5.2	39	6/10.4	16	Ø240	5xØ8-12	360	2.5	190
		1.0	3.0	10.4	78	9.6/16.6	16	Ø240	5xØ8-12	360	2.5	190

This is our hot product:






=============================================
about us
Shanghai Sunny Elevator Co., Ltd, is located in Shanghai China. We are a 22-year professional manufacturer specialized in designing and producing elevator parts with ISO9001 certification. We have fine quality management team and always offer our clients high quality and reliable products.

We offer 3 year quality guarantee for all products. Our main products are: Traction Machine, Elevator Display, Elevator Light Curtain, Elevator Buttons, Photoelectric Switch, COP & LOP, Door Mechanism. And we provide best prices on: Guide Rail, Guide Shoe, Counterweight Filler, Rope fastening, Wire Rope, Safety Gear, Speed Governor, Oil Buffer, Maintenance box, Emergency leveling device, Elevator Intercom, Limit Switch, Fans and other parts for elevator.

Our long time clients include Hyundai (served as OEM), Hitachi, Otis, Mitsubishi, KONE, Guangri Elevator, WITTUR elevator etc.
