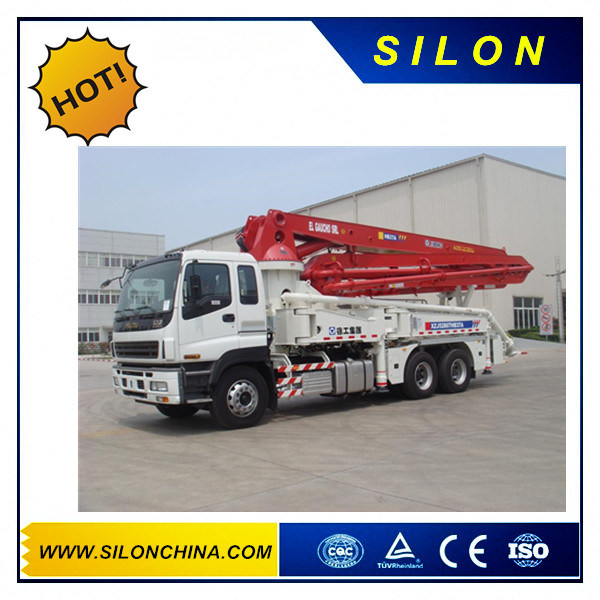

Xcmj Truck-Mounted Concrete Pump Truck (HB37A)

Product Description
HB37A Truck-Mounted Concrete Pump is modern construction equipment for pouring concrete consecutively. It has features of good maneuverability, short pparation time, high efficiency, good construction quality, less pollution of the environment. It is widely used in large-scale infrastructure constructions such as bridge, electric power plant, steel works, water disposal plant and high-rise building constructions.

HB37A Truck-Mounted Concrete Pump comprises superstructure and chassis. Components imported from WAITZINGER Company Germany, multi-way valves imported from HAWE Company Germany and center pumping mechanism with technology of PM Company Germany available in the superstructure and CXZ51Q chassis made by ISUZU Japan as well as drive system with 4-series oil pump contribute to its high drive ability and reliability.








Technical Parameters

No.	Item	Unit	Parameter
1	Max.speed	km	90
2	Min.turningdiameter	m	18.4
3	Brakedistance	m	7
4	Approachangle	°	31
5	Departureangle	°	12
6	Chassismodel		CXZ51Q(Japan)
7	Totalweight	kg	28150
8	1staxleload	kg	6780
9	2nd,3rdaxleload	kg	21220
10	Enginemodel		6WF1
11	Max.Enginepower	kW	287
12	Max.Enginetorque	N.m	1862
13	Max.grade-ability	%	38
14	Fuelconsumptionlimit	L/100km	34
15	Outlinedimensions(Length´Width´Height)	mm	11990´2490´3900
