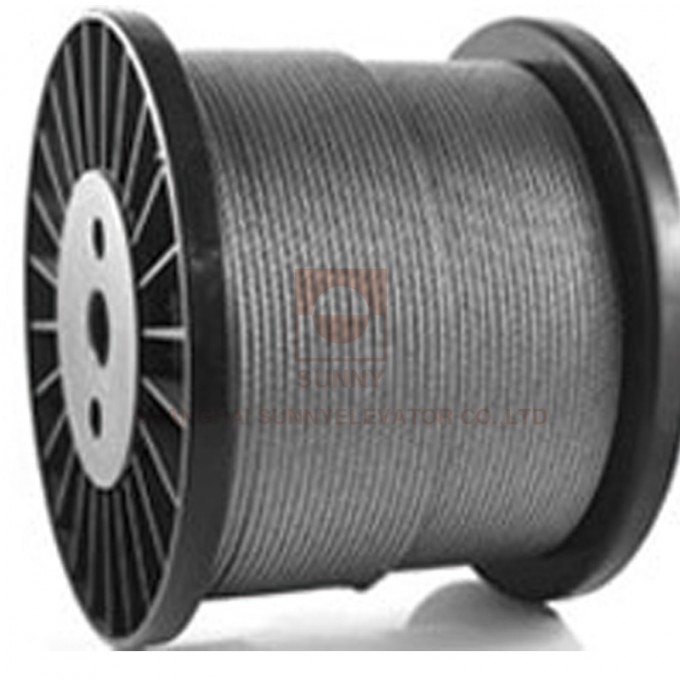

Elevator Steel 6x19 Large Diameter Wire Ropes with Fiber Core(FC) Wire Rope for Traction Machine
Characteristics:Preformed,bright,right hand,regular lay
Application:Compensating Ropes
| Nominal rope diameter | Approx.weight | Minimum breaking load | ||
| Rope grades,MPa | ||||
| 1570 | 1770 | 1960 | ||
| mm | kg/100m | kN | kN | kN |
| 24 | 211 | 298 | 336 | 373 |
| 25 | 229 | 324 | 365 | 404 |
| 26 | 248 | 350 | 395 | 437 |
| 27 | 268 | 378 | 426 | 472 |
| 28 | 288 | 406 | 458 | 507 |
| 29 | 309 | 436 | 491 | 544 |
| 30 | 330 | 466 | 526 | 582 |
| 31 | 353 | 498 | 561 | 622 |
| 32 | 376 | 531 | 598 | 662 |
| 33 | 400 | 564 | 636 | 704 |
| 34 | 424 | 599 | 675 | 748 |
| 35 | 450 | 635 | 716 | 792 |
| 36 | 476 | 671 | 757 | 838 |
| 37 | 502 | 709 | 800 | 885 |
| 38 | 320 | 748 | 843 | 934 |
| Rope construction | Application | Remarks | |
| Class and type of core | Construction | ||
| 6x19FC | 6x19S+SFC 6X19W+SFC 6X25Fi+SFC | Governor ropes | Recommendation: NFC for suspension ropes;SFC for governor ropes |
6x19S+NFC 6X19W+NFC 6X25Fi+NFC | Suspension ropes for low-rise, low-speed elevators | ||
| 8x19FC | 8x19S+SFC 8X19W+SFC 8X25Fi+SFC | Governor ropes | |
8x19S+NFC 8X19W+NFC 8X25Fi+NFC | Suspension ropes for elevator speed ≤2m/s, building height ≤60m | Please specify when ordering if elevator speed >2m/s | |
| 8x19 Steel core | 8x19S+8x7+1x19W 8x19W+8x7+1x19W 8x25Fi+8x7+1x19W | Suspension ropes for elevator speed <4m/s, building height ≤100m | Q/320205KABW02-2009 A technical agreement needs to be signed for ordering these ropes. Products comply to: Q/320205KABM02-2009 |
| 8x19 Mixed core | 8x19S+8x7+FC 8x19W+8x7+FC 8x25Fi+8x7+FC 8x19S+5x7+FC | Suspension ropes for elevator speed <4m/s, building height ≤100m | |
| 9x19 Steel core | 9x17S+9x7+1x19W 9x19S+9x7+1x19W 9x19W+9x7+1x19W 9x21Fi+9x7+1x19W 9x25Fi+9x7+1x19W | Suspension ropes for elevator speed ≥4m/s, building height >100m | |
| 9x19 Mixed core | 9x17S+9x7+FC 9x19S+9x7+FC 9x19W+9x7+FC 9x21Fi+9x7+FC 9X25Fi+9x7+FC | ||
| 6x36 FC | 6x29Fi+FC 6x36WS+FC | Compensating ropes | |
| Application | Rope Construction | Nominal rope diameter mm | Nominal rope grades N/mm² | |
Japanese manufacturers | Governor ropes | 6x19S+FC 8x19S+FC | Φ6.0~Φ10 | 1320/1770 1620/1770 1770 |
| Suspension ropes | 8x19S+FC 8x25Fi+IWRC | Φ8~Φ16 | 1320/1770 1620/1770 | |
European/ American manufacturers | Governor ropes | 6x19S+FC 8x19S+FC | Φ6.0~Φ10 | 1370/1770 1570/1770 1570 1770 1960 |
| Suspension ropes | 8x19S+FC 8x19W+FC 8x19S+IWRC 8x19W+IWRC 8x25Fi+FC 9x19S+IWRC 9x21Fi+IWRC | Φ8~Φ16 | 1370/1770 1570/1770 1570 |
