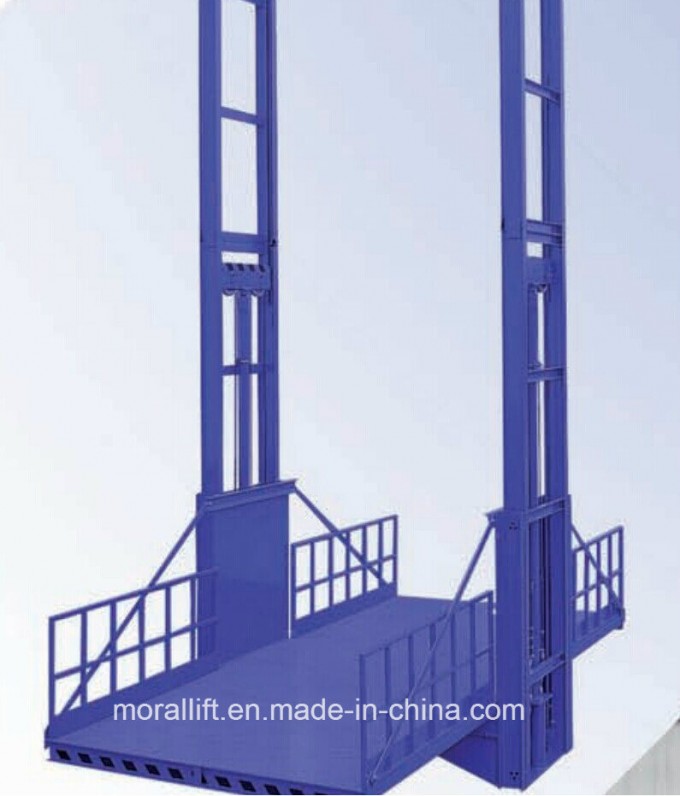

Hydraulic Goods Elevator for Warehouse

Hydraulic goods elevator for warehouse
Main feature
1)chain features lifting goods
2)hydraulic driven and lift by chain
3)steady up and down

Product induction
Vertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.

This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.

We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. Machine are available in capacities from 100kg. To 100, 000kg.

1) chain lifting platform features lifting the goods through the different floors.
2) chain lifting platform----hydraulic driven and lift by chain.
3) special lifting chain and have long use life.
4) the close height is low so don not need pit installation.
5) closed type structure, safe and easy to clean.

Model	SJD0.5-10
Load capacity	500--1000KG
Platform size	1500*1200MM
Lifting height	10000MM
speed	100mm/s
power	3kw
power supply	AC 220V/380V 50HZ/60HZ
weight	800KG
