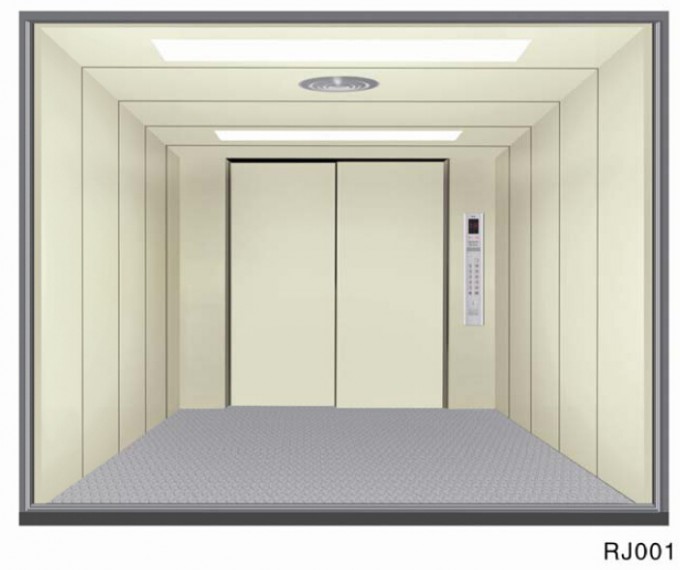

Efficient Freight Elevator, Vvvf Control

1. German technology
2. CE/ISO9001/CUTR certifications
3. Integrated controller
4. VVVF door operator system
5. Fully PC controlling technology
6. Accurate leveling
7. Sturdy and durable cabin
8. Space-saving
9. Low noise
10. Green environmental
10. Permanent magnet synchronous and gearless traction machine


Standard Function

1. Travel function

Collective selective control
Reopen with hall call
Car stops and door open
Automatic returning to the base station
Directly running
Automatic pass without stop
2. Safety function

Repeated door closing
Power on re-leveling
Overload holding stop
Anti-stall timer protection
Startup protection control
Inspection operation
Up/down over-run and final limit protection
Down over-speed protection device
Upward over-speed protection device
Photocell protection
3. Emergency function

Emergency car lighting
Five way intercom
Fire emergency return
4. Man-machine interface

Micro-touch button for car call and hall call
Floor and direction indicator inside car
Floor and direction indicator in hall
5. Energy-saving function

Car ventilation, light automatic shut off
Remote shut-off


Optional Function
Travel function

Operation control at stations
Door open time extending
Bell

Rated capacity (kg)	Rated speed (m/s)	Net size of car (mm)	Net size of door D.W (mm)		Hoistway size (mm)			Machine room size (mm)		Max. Traveling height (m)
		C.W * C.D	2P telescopic opening	4P Center opening	H.W * H.D	HR.H	P.H	MR.W * MR.H	MR.H
1000	0.5	1300*1750	1300*2200	/	2400*2400	4500	1500	3300*3300	2900	30
2000	0.5/1.0	1500*2700 1950*2150	1500*2200	/	2800*3350 2800*2700	4500	1500/1700	3500*3700	2900	30/45
3000	0.5	2000*2900	/	2000*2200	3400*3550	4600	1700	4000*3900	2900	30
5000	0.25	2400*3600	/	2400*2400	4000*4250	4800	1700	4000*4250	3300	15
