Detailed Description
This is MRL 2000kg Freight Elevator for Lifting Goods (XNH024).
No matter how high the building and how heavy the goods, our freight lift transports everything up and down easily and rapidly. It distincts itself in fine speed regulation and excellent torque characteristic.
| Syney-THJW-MRL Freight Elevator | | | | | |
| One cabin door: | | | | | | | | |
| Capacity | Speed | Cabin | Shaft |
| DL | V | width | depth | door open | Standard Shaft | Minimum Shaft | Pit | Overhead |
| (kg) | (m/s) | (mm) | (mm) | (mm) | width | depth | width | depth | Min | STD |
| 1000 | 0.5 | 1500 | 1500 | side oepn:1200*2100 | 2500 | 2100 | 2500 | 2050 | 1500 | 4800 |
| 0.63 |
| 1600 | 0.5 | 1700 | 2000 | side open:1300*2100 | 2750 | 2600 | 2750 | 2550 | 1600 | 4900 |
| 0.63 |
| 2000 | 0.5 | 2000 | 2000 | Side open/ 4 panels center open: 1500*2100 | 3000 | 2700 | 2900 | 2550 | 1600 | 5200 |
| 0.63 |
| 3000 | 0.5 | 2000 | 2800 | Side open/ 4 panels center open: 1600*2100 | 3400 | 3400 | 3400 | 3350 | 1600 | 5200 |
| 0.63 |

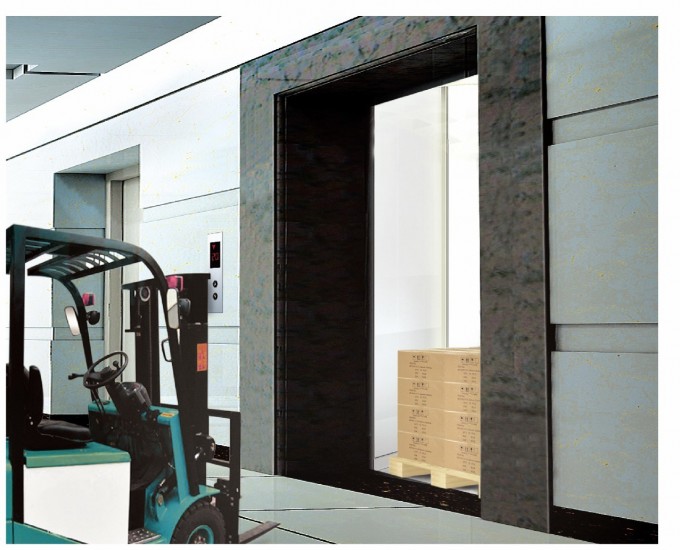

Product Image
