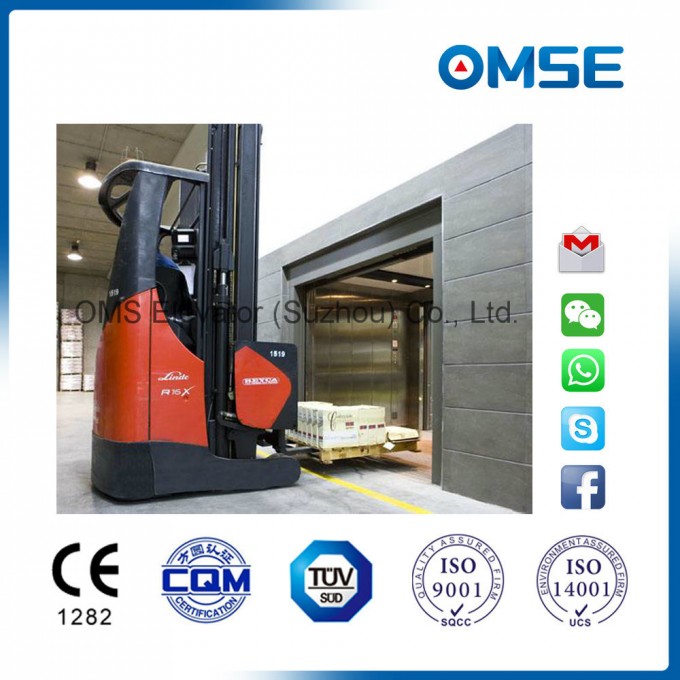

Mrl Freight Elevator for Industry and Logistic

Product Features

1.Large capacityis available, Max capacity can reach to5000kg
2.High speedis available, Max speed can reach to1.25m/s
3. Competitive price and high quality.
4. Smooth and reliable running, large width door opening.

Why choose OMS Elevator?

1. Germany technology.
2. Professional R&D team, with strong non-standard design capability.
3. Best service:
Before sale-specially custom-made for you
After sale-quick response, 18 months warranty
4. OEM & ODM both welcomed


Freight ElevatorSpecification

Loadingcapacity(kg)		1000	1600	2000		3200	5000
Ratedspeed(m/s)		0.5	0.5	0.5	0.5	0.5	0.5
Doortype		Centralopening	Centralopening	Centralopening	Sideopening	Centralopening	Centralopening
Dooropeningsize		1200*2200	1500*2200	1500*2200	1500*2200	2000*2200	2200*2200
Existandentrance		one	one	one/two	one/two	one/two	one/two
Ropingrate		2:1	4:1	4:1	4:1	4:1	4:1
Carsize		1600*1500*2200	1500*2350*2200	1500*2800*2200	1700*2400*2200	2000*2900*2300	2200*4000*2300
Hoistwaysize		2500*2100	2800*2850	2800*3300	2900*2900	3500*3400	4100*4600
Overhead		4700	4700	4700	4700	4700	4700
Pitdepth		1700	1700	1700	1700	1700	1700
Max.travelheight(m)		30	30	30	30	30	30

*Note: only for reference, final dimension please subject to the layout drawing.


Freight Elevator Function Table
Standard Function

Running Function	Automatic running	Attendant running
	Automatic adjustment of door open holding time	Door re-open at current floor
	Car call cancel	Parking
Safety Function	Light curtain protection	Overload stop
	Troubleshooting	Inspection operation
	Auto-landing with fault	Door close repeat
	Top/bottom limit and final limit protection	Down running protection
	Up running protection	Safety circuit protection
	Door interlock protection	Main contactor protection
	Brake detecting protection
Human-machine Interface	Micro push button	Running state display
	Homing floor set	No stop floor set
	Hoistway self-learning
Emergency Function	Emergency lighting	Emergency electric operation
	5-way intercom	Alarm bell
Energy Saving	Fan & light automatic off	Start/stop timing

Optional Function

Running Function	Fire emergency return	Door close delay
	Double door control	Arrival gong
Human-machine Interface	Sub-C.O.P.	IC Card control
Emergency Function	Automatic Rescue Device (ARD)
Monitor Function	Traction machine monitor (only for MRL type)

Decoration




Packing & Delivery



Packaging Details:
Each elevator will be packed in plywood cases, suitable for long distance ocean transportation well protected against moisture and rust.
1~2 units of elevator will be load in a 20 foot container
Delivery Detail:
35 days after receipt of approved contrac and down payment
