2000kg Freight Elevator for Goods with Painted Steel Finish (XNH-001)

This is 2000kg Freight Elevator for Goods with Painted Steel Finish (XNH-001)

No matter how high the building and how heavy the goods, our freight elevator can transports everything up and down easily and rapidly. It distincts itself in fine speed regulation and excellent torque characteristic.

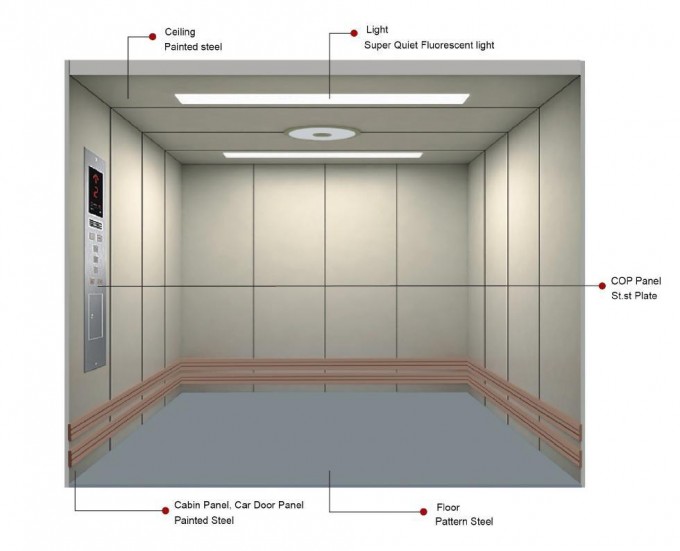

Decoration Finish:
Color: Beige color, green and other colors are optional.

Syney-THJ-Freight Elevator with Machine room
One Cabin door:
Capacity	Speed	Cabin Size			Shaft Size			Min Floor H	Max Travel	Min Floor H
DL	V	Width	Depth	Open	Width	Depth	Pit	Min D	Max R	Min D
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(m)	(m)
1000	0.5	1500	1500	Side open: 1200*2100	2400	2100	4500	2500	25	2700
	0.63								30
1600	0.5	1700	2000	Side open: 1300*2100	2700	2600	4500	2500	25
	0.63								30
2000	0.5	2000	2000	Side open/ 4 panels center open: 1500*2100	3000	2700	4500	2500	25
	0.63								30
3000	0.5	2000	2800	Side open/ 4 panels center open: 1600*2100	3100	3400	4800	3000	25
	0.63								30
5000	0.25	2400	3700	4 panels center open: 1800*2100	3600	4300	4800	3000	16
	0.5								25
