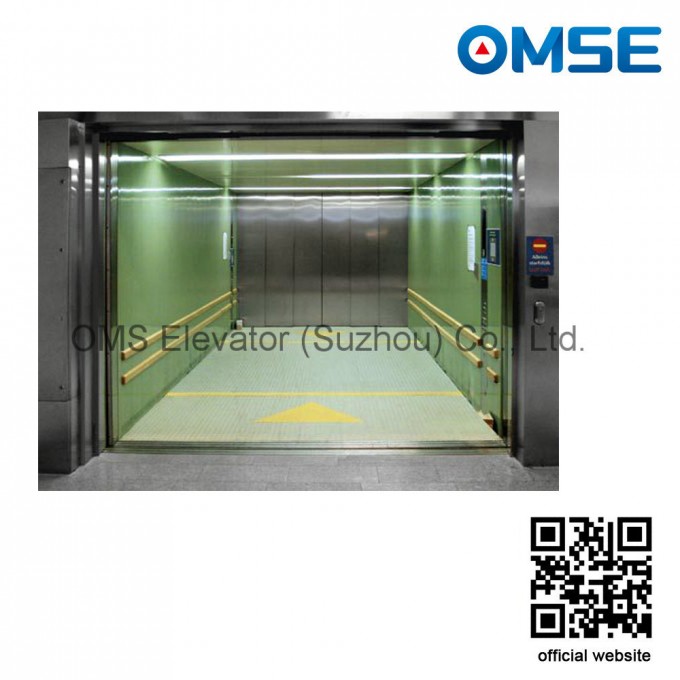

Freight Elevator with Capacity From 1000kg to 12000kg

Product Features

1.Large capacityis available, Max capacity can reach to12000kg (0.25m/s)
2.High speedis available, Max speed can reach to1.25m/s (5000kg)
3. Competitive price and high quality.
4. Smooth and reliable running, large width door opening.

Why choose OMS Elevator?

1. Germany technology.
2. Professional R&D team, with strong non-standard design capability.
3. Best service:
Before sale-specially custom-made for you
After sale-quick response, 18 months warranty
4. OEM & ODM both welcomed


Freight ElevatorSpecification

Loadingcapacity(kg)		1000	2000		3000	5000	8000	10000	12000
Ratedspeed		0.5	0.5	0.5	0.5	0.25/0.5	0.25/0.5	0.25/0.5	0.25
Doortype		Sideopening	Centralopening	Sideopening	Centralopening	Centralopening	Centralopening	Centralopening	Centralopening
Dooropeningsize		1400*2100	1700*2100	1500*2100	2000*2100	2500*2400	2500*2400	2600*2400	2600*2400
Existandentrance		one/two	one/two	one/two	one/two	one/two	one/two	one/two	one/two
Ropingrate		2:1	4:1	4:1	4:1	4:1	4:1	4:1	6:1
Carsize		1400*1700*2200	1700*2400*2200	1800*2300*2200	2000*2900*2200	2500*3500*2500	3300*3800*2500	3300*5000*2500	3300*6600*2500
Hoistwaysize		2500*2200	3000*2900	2700*2800	3400*3400	4100*4000	4300*4400	4800*5800	4600*7200
Machineroomsize		3500*3500*2800	3500*4000*2800	3500*4000*2800	3400*4500*2800	4100*4500*2800	4300*4500*2800	4800*6000*2800	4600*7200*2800
Overhead		4500	4500	4500	4500	5100	5100	5100	5500
Pitdepth		1500	1500	1500	1500	1700	1700	1700	1800
Max.travelheight(m)		30	30	30	30	30	30	30	20

*Note: only for reference, final dimension please subject to the layout drawing.


Freight Elevator Function Table
Standard Function

Running Function	Automatic running	Attendant running
	Automatic adjustment of door open holding time	Door re-open at current floor
	Car call cancel	Parking
Safety Function	Light curtain protection	Overload stop
	Troubleshooting	Inspection operation
	Auto-landing with fault	Door close repeat
	Top/bottom limit and final limit protection	Down running protection
	Up running protection	Safety circuit protection
	Door interlock protection	Main contactor protection
	Brake detecting protection
Human-machine Interface	Micro push button	Running state display
	Homing floor set	No stop floor set
	Hoistway self-learning
Emergency Function	Emergency lighting	Emergency electric operation
	5-way intercom	Alarm bell
Energy Saving	Fan & light automatic off	Start/stop timing

Optional Function

Running Function	Fire emergency return	Door close delay
	Double door control	Arrival gong
Human-machine Interface	Sub-C.O.P.	IC Card control
Emergency Function	Automatic Rescue Device (ARD)
Monitor Function	Traction machine monitor (only for MRL type)

Decoration





Packing & Delivery




Packaging Details:
Each elevator will be packed in plywood cases, suitable for long distance ocean transportation well protected against moisture and rust.
1~2 units of elevator will be load in a 20 foot container
Delivery Detail:
35 days after receipt of approved contrac and down payment

Classic Projects
