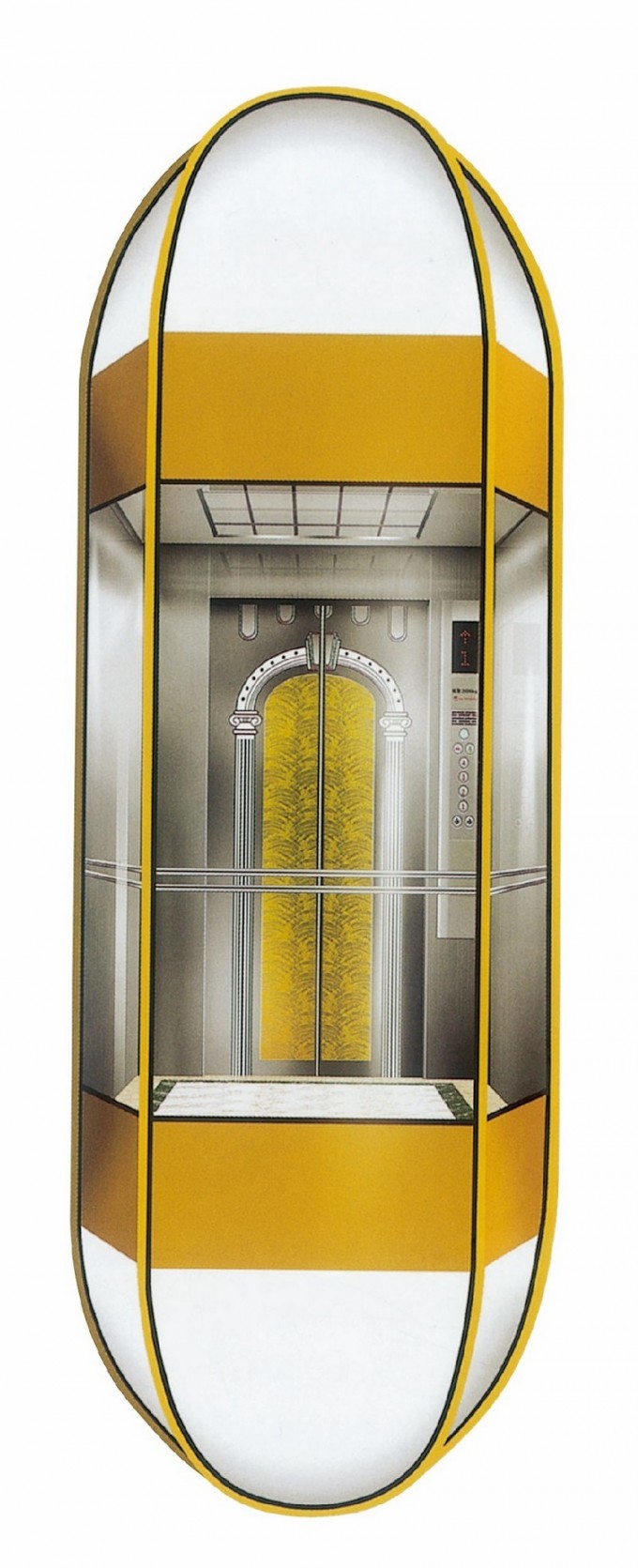

1000kg Diamond Shape Panoramic Elevator with Capsule Cabin (LL-024)

This is 1000kg Diamond Shape Panoramic Elevator with Capsule Cabin(LL-024).

Syney panoramic elevator series are widely used nowadays. In hotels, business places and office buildings, you all can see Syney panoramic elevator silently transporting colorful passengers up and down, adding beautiful sights to buildings. Our lift distincts itself in automatic timing switch and safety device, offering passengers steady moving up and down.

Decoration:
Canopy: Baked enamel steel, acrylic round cover
Observation wall: Laminated glass (three pieces), glass thickness 6+6
Ceiling: Mirror finished stainless steel frame, multilevel light panel and tube light
Car panel: Hailine finished stainless steel
Handrail: Φ 25 stainless steel doube tubes
Floor: PVC floor

Capacity	Speed	Cabin Size			Shaft Size					Max Travel
DL	V	Width	Depth	Open	Width	Depth	Pit	OH	MRH	Max R
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)
1000	1	1300	1900	900*2100	2450	2450	2000	4900	2800	50
	1.5						2100	5000		70
	1.75						2200	5100		90
