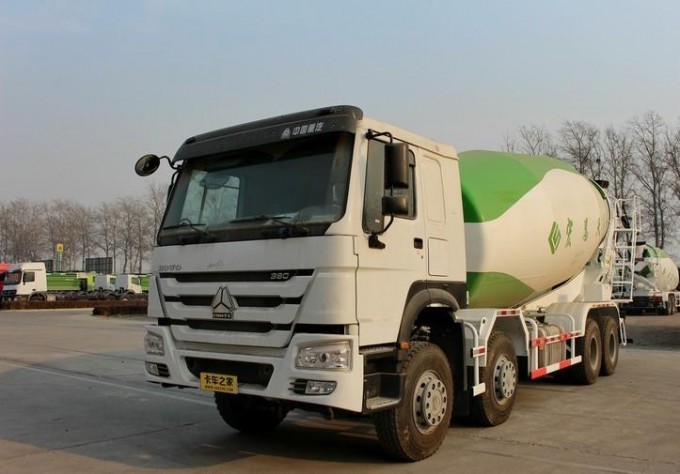

HOWO-7 6X4 340HP ConCRETE MIXER TRUCK
This model of concrete mixer truck is modified from the HOWO chassis from SINOTRUK, featured with excellent engine power and low oil consumption, functioning stably, with elegant, safe and comfortable driving cab designs. The balanced structural design makes it available for various road conditions, making it a favorable choice for medium and short range concrete transportation tasks.
Mass Parameter | Curb Weight(kg) | 13100 | |
Maximum Allowable Total Mass(kg) | 25000 | ||
Towable Total Mass(kg) | |||
Dimensions | Overall Dimensions(mm) | Length | 8715 |
Width | 2496 | ||
Height | 3850 | ||
Wheel base(mm) | 3625+1350,3600+1400 | ||
Minimum Ground Clearance(mm) | 314 | ||
Performance Parameters | Maximum Speed(km/h) | 90,102 | |
Economic Speed(km/h) | 72,82 | ||
Maximum Gradability(%) | 70 | ||
Minimum Turning Diameter(m) | 16 | ||
Recommended | Engine | Model | WD615.95,WD615.96,WD615.95C,WD615.96C,D12.34-30,D12.38-30 |
Net Power(kW)/Rotating Speed(r/min) | 247/2200 276/2200 249/1900 279/2000 249/1900 279/2000 | ||
Maximum Torque(Nm)/Rotating Speed(r/min) | 1350/1100-1600 1350/1100-1600 1490/1200-1500 1590/1200-1500 1470/1100-1500 1650/1100-1500 | ||
Gearbox | HW15710 | ||
Clutch(mm) | 430 | ||
Rear Axle | Model | HC16 | |
Gear Ratio | 5.73 | ||
Oil Tank(L) | 400 | ||
Chassis Cross Section(mm) | 300 | ||
Suspension(Frontal & Rear Springs) | 9/12,10/12,4/12 | ||
Tires | 11.00-20,12.00-20,11.00R20,12.00R20 |
