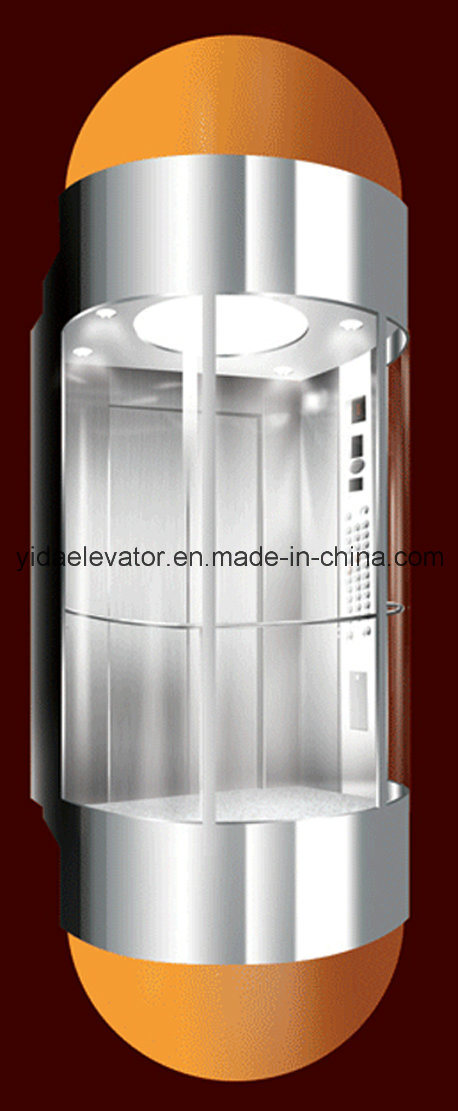

SGS Approved Semi-Circle Sightseeing Elevator

Product Description
Exporting to 50+countries | 6automatedproductionlines
Professional Manufacturer of Elevators
As a Sino-American joint venture, Yida Expss Elevator Co. Ltd is a professional company integrating research, design, production, sale, installation and maintenance services for elevators.Our main products includePassenger elevator, freightelevator, sightseeingelevator, hospital bedelevator, villa houseelevator, escalator and moving walk.We are also one of the companies in China that received manufacturing license class A lift in the pvious period.


Reference specification for Panoramic elevator:

compactmachineroompanoramicelevator(gearlesstractionmachine)
capacity	No.ofpersons	speed(m/s)	Entrance(JJ*HH)mm	carnetsize	shaftinsidedimension			Machineroomsize
kg			centeropening	W*D(mm)	W*D(mm)	pitdepth	OH	W*D*H(mm)
630	8	1.0	800*2100	1100*1600	2250*2100	1800	4800	2250*2800*2500
		1.5/1.75				2000	5000
800	10	1.0	800*2100	1200*1700	2350*2200	1800	4800	2350*3000*2500
		1.5/1.75				2000	5000
1000	13	1.00	900*2100	1400*1800	2500*2300	1800	4800	2500*3200*2500
		1.5/1.75				2000	5000
1250	16	1.0	1000*2100	1600*1950	2500*2450	1800	4800	2500*3200*2500
		1.5/1.75				2000	5000
1600	21	1.0	1000*2100	1800*2150	2850*2650	1800	4800	2500*3400*2500
		1.5/1.75				2000	5000

the above is just for reference, if your shaft at jobsite is not like this , please contact with us, we can design as your your shaft.

Panoramic elevator function list
Running Function
VVVF Drive	VVVF Door Operator
Automatic Running	Attendant Running
VIP (special) Running	Best Curve Autogeneration
Response in Accelerating Process	Time-sharing Service Floor Selection
Full Load by Pass	Automatic Adjustment of Door Open Holding Time
Door Re-open at Current Floor	Instant Door Close
Door Open After Stop	Arrival Gong
Car Call Cancel	Parking
Next Landing	Self Rescue in Low Speed
Starting Torque Automatic Controller	Direct Landing
Button Inset Diagnose	Anti-nuisance
Fire Emergency Return
Emergency Function
Emergency Lighting	Emergency Electric Operation
5-way intercom	Alarm Bell
Energy Saving function
Fan&Light Automatic Off	Start/Stop Timing
Night time Arrival Gong Canelling Function
Safety Function
Brakeage Automatic Detection	Light Curtain Protection
Overload Stop	Hoisting Rope Sliding Detection
Inspection Operation	Troubleshooting
Auto-landing with Fault	Door Close Repeat
Top/bottom Limit and Final Limit Protection	Down Running Protection
Up Running Protection	Safety Circuit Protection
Door Interlock Protection	Main Contactor Protection
Brake Detecting Protection	Security Floor Function
Voltage Automatic Recognition Function
Human-Machine Interface
Micro Push Button	Running State Display
Floor Selection in Machine Room	No Stop Floor Set
Homing Floor Set	Floor Indication Set
Hoistway Self-learning	Interference evaluation
Encoder evaluation	Input Port evaluation
COP Debugging	Running Times and Time Record
Monitor Function
Remote Monitor	Residential Area Monitor
Traction Machine Monitor
Optional Function
Running Function
Fire-fighting linkage Function	Advanced Door Opening
Double Door Independent Control	Re-leveling Function
Duplex Control Function	Group Control Function
Car Sterilize Function	Energy Feedback Function
Earthquake Function
Human-Machine Interface
Voice Announcement	Back Ground Music
Sub-C.O.P.	C.O.P. For Handicapped Passengers
IC Card Control
Emergency Function
Automatic Rescue Device (ARD)
