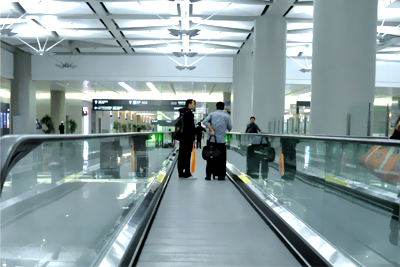

Sicher 800mm Wide Moving Walk

SRH High QualityShopping MallMoving Walk(with angle)

With incorporation of the well- developed escalator and moving walk technology, advanced micro-computer control system, high strength truss structure, classical drivingsystem, and completed safety devices, GRE/GRM series of escalators and moving walks fully ensure our products safe, reliable, endurable and bring steady and comfortable riding. Refine craftwork fluent lines and elegant style form the combination of practical riding function and visual enjoyment. Frequency conversion technology selected makes products more energy-saving. Besides outdoor escalator and moving walk can be fit for different kinds of environment and weather condition. Complying with national standard GB 16899-2011 and European standard EN 115, the escalator and moving walk are applicable for heavy-passenger-flow location such as market, supermarket, hotel, subway, airport, train station, crossroad and public buildings.

Standard specification
Application	Indoor, outdoor, 16-hr operation daily.
Horizontal span (m)	≤50
Inclination (°)	10/11/12
Step width (mm)	800/1000
Upper landing horizontal distance (mm)	400
Speed (m/s)	0.5
Main power	380V/50Hz/3P
Balustrade	Tempered glass (10mm)
Handrail bracket	Stainless steel
Handrail	Black
Balustrade height (mm)	900
Inner & outer decking	Hairline stainless steel
Skirting	Hairline stainless steel
Step	Stainless steel
Landing plate	Stainless steel (anti-sliding)
Illumination	Lighting under upper & lower landing pallets
Indicator	Failure code indicator on control cabinet
Operation	Emergency stop button Key switch Inspection operation
Safety devices
Static electricity protection		Eliminate static electricity raised from running of the steps (pallets).	Standard
Static electricity protection of handrail		Eliminate static electricity raised from tunning of the handrail.	Standard
Emergency stop of button on entrance		Push the emergency stop button to stop the escalator (moving walk) against emergency raise.	Standard
Handrail entry safety protection		Protection against risk of the sundries being jammed into handrail entry.	Standard
Over speed protection		Protection against risk of speed being over 20% of rated speed.	Standard
Under speed protection		Protection against risk of speed being less than 20% of rated speed.	Standard
Unintentional reversal protection		Protection against risk of unintentional reversal of the direction of travel.	Standard
Phase failure protection		Protection against risk of phase failure.	Standard
Short circuit protection		Protection against risk of short circuit.	Standard
over-load protection		Protection against risk of motor continually over load.	Standard
Step (pallet) loss protection		It stops when it monitors the step (pallet) loss.	Standard
Step (pallet) sagging protection		Protection against risk of steps (pallets) being breakage and sagging.	Standard
Step (pallet) chains safety protection		Protection against risk of steps (pallets) chains being breakage of undue elongation.	Standard
Comb safety guard		Protection against risk of the sundries being trapped at the comb.	Standard
Inspection socket		To provide voltage to inspect or maintain.	Standard
Machine room guard		One safety plate separates machine room from movable parts such as step to protect service personnel.	Standard
Emergency stop button on control cabinet		Push the emergency stop button to stop the escalator (moving walk) against emergency raise when inspection and maintaining.	Standard
Handrail speed- detection protection		When the step (pallets) brake distance is 1.2 times larger than the stipulated distance, it pvents it from start again.	Standard
Skirting guard		Protection against risk of foreign objects being jammed into clearance between steps (pallets) and skirting.	Standard
Floor anti-start protection		It stops when the floor plate is removed or opened.	Standard
Main drive chains safety protection		Protection of risk of drive chains being breakage or undue elongation.	Standard
Skirting brush		Brushes on skirting to enhance the passenger's safety.	Standard
Host brake detection		When it detects the release condition of the host brake, it pvents it from start before its release.	Standard
Anti-crawl device		It pvents the passengers from crawling to external handrail.	Optional
Anti-skid device		It installs outer cover plate which is closed to handrail height. It pvents the passengers from accidental crawl, skid, and fall.	Optional
Arrester		It pvents the passengers from entering into the area between wall and handrail, between two escalators (moving walk).	Optional
Protection baffle		Protection baffle is set in the crossing of outer handrail edge and any obstacle.	Optional
Auxiliary brake		When it exceeds 1.4 times of the speed; the steps (pallets) and handrail running direction is opposite to the indicated direction, auxiliary brake stops the escalator (moving walk).	Optional
