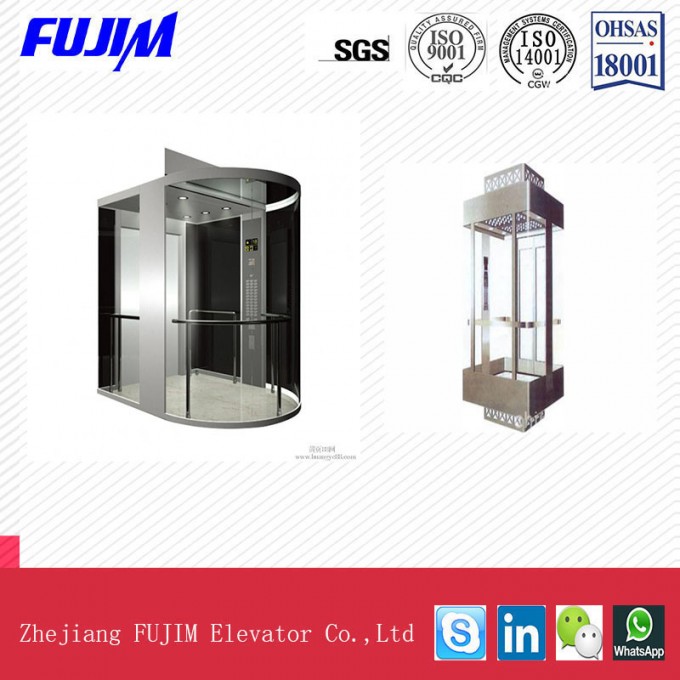

Indoor Sightseeing Elevator for Shopping Mall with Outer Glass Cover

FJO Observation Elevatoradopts the mature control technology and the advanced design concepts that lead the trend with a combination of the superior performance permanent magnet synchronous and gearless drive system. It completely merges with the constructions to fully hoist the building aesthetics and values. It has very high cost performance advantages. FUJIM machine roomless observation elevator is iust like the eyes of the architecture. It thoroughly shows the construction characteristics. It is also an attractive scene through 270º sight-seeing car.
Because it has no machine room form, therefore it needs no construction of a machine room. Hence it lowers down the building cost and largely shortens the lift construction period. It further saves the energy loss and reduces the cost.
FAQ:
WHY CHOOSE US?
1.High quality and competitive price.

1. FUJIM machine room-less passenger lift occupies less space.It grants you to more effectively utilized the construction space.

2. Machine room-less passenger lift can save the construction time,material and cost.

3. The wonderful design which integrates machine room with the well and the effective installation task ensure the prompt lift installation to the project.

How to do the elevator installation?
The final assembly of elevators are conducted on site, which is the most important chain in assembly.
Normally, local people can do that job with our provided manuals and technology support. You can ask the local professional elevator engineers or technician to install elevators for you.You can also ask our engineers to go to your site to do the job but the cost will be much higher.We will send professional project manager to be responsible for internal planning, coordination, distribution of labor, project quality management and safety management of the installation project. Prior to the launch of each project, the project manager shall hold internal inaugural meeting to develop construction scheme and exchange technical documentations, and develop emergency scheme according to actual situations, so as to guarantee the project is completed in line with quality requirements and without delay.

How about the delivery time?
Within 30-45 days after we receive the order.

What kind of payments do you support?
T/T, L/Cother kinds, pls contact with us.

Can you produce according to customer's requirement?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.

Outsanding Technology of our elevator

Successful Project

Car Decoration


Parameter table of our passenger elevator

Loading(kg)	Seating Capacity	Speed(m/s)	Car size (CW*CD)mm	Door opening size (DW*DH)mm	Hoistway size(mm)			Machine room size		Max traveling height (m)
				2P Center opening	(HW*HD)	OH	PD	(MW*MD)mm	(MH)mm
400	6	1.0	1100*1000	700*2100	1700*1620	4500	1500	1700*1620	2900	45
630	8	1.0	1400*1100	800*2100	2000*1720	4500	1500	2000*1720	2900	45
		1.6/1.75				4600	1700			96
800	10	1.0	1400*1350	800*2100	2000*1970	4500	1500	2000*1970	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
1000	13	1.0	1600*1500	900*2100	2200*2120	4500	1500	2200*2120	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
1150	15	1.0	1700*1500	1000*2100	2300*2120	4500	1500	2300*2120	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6300	3850			180
1250	16	1.0	1950*1400	1100*2100	2600*2100	4500	1500	2600*2100	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
1350	18	1.0	1950*1500	1100*2100	2600*2200	4500	1500	2600*2200	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180
1600	21	1.0	1950*1750	1100*2100	2600*2500	4500	1500	2600*2500	2900	45
		1.6/1.75				4600	1700			96
		2.0				4900	1800			120
		2.5				5100	2000			150
		3.0				5600	2600			150
		3.5				5950	3100			180
		4.0				6350	3850			180

Standard Function

Running Function
VVVF door operator	VVVF elevator drive	Independent running	Automatic pass without stop
Automatically adjust door opening time	Reopen with hall call	Car stop and door open	Expss door closing
Arrival charm	Direct parking
Safety Function
Light curtain protection	Designed stop	Overload device	Anti-stall timer protection
Start protection control	Inspection Operation	Fault self-diagnosis	Repeat door closing
Up/down over-speed limited protection	Device for uncontrolled descending car protection	Device for uncontrolled ascending car protection
Human-machine interface
Micro-touch button for car call and hall call	Floor and direction indicator inside car	Floor and direction indicator in hall
Emergency Function
Emergency Lighting	Inching running	5-way intercom	Bell
Emergency fire operation
Energy Saving function
Fan&Light Automatic Off	Remote shut-off

Optional Function

Automatic rescue operation	Anti-nuisance car call protection	In advance door open	Car call cancellation
Duplex control	Speech synthesis service	Second COP	Car operation panel for disabled persons
Intelligent calling service	Remote monitor	Camera function in the car

All the decoration can be customized for you.
If you are interested in our products please do not hesitate to contact us.
