Warm Concern,a Beautiful Humanity World
SUNNY hospital elevators are not just used in delivering passengers. Because of its use particularity, it has special and strict requirements to the elevator use properties. SUNNY hospital elevator can accurately control the elevators' running speed. It brings about the smooth and comfortable travel.
SUNNY hospital elevator lays special importance upon the humane design. It fully optimizes the car structure. It satisfies the clients' use requirements to the greatest extent. It creates a peaceful and graceful space for vast passengers.
SUNNY hospital elevator satisfies the needs of emergency patients' delivery. It applies humanization design and is equipped with a full set of top equipments. It is smooth and comfortable in running.

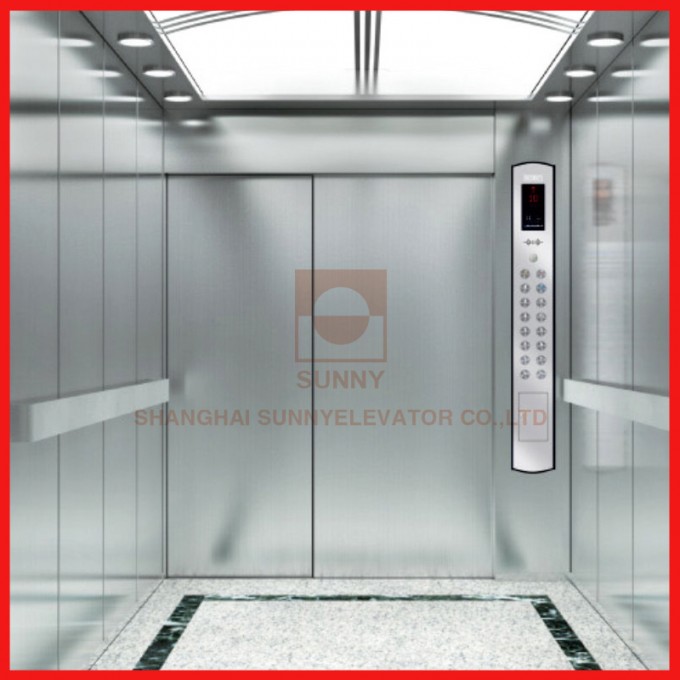

Ceiling: SN-CC-525 style stainless steel frame,
Acrylic top panel and lighting decoration
Ventilation: Axial fan
Car wall : Hairline stainless steel
Handrail: SN-CH-711
Floor: SN-CF-606
Standard
Load DL(KG) | Speed V(m/s) | Car Dimension | Hositway Dimension | Max No.of Stops | Max Travel (m) | Min Span Between Various Floors | Power KW | Distance of Bracket Guide Rail(mm) | |||||
| CW(mm) | CD(mm) | OP(mm) | Min HW (mm) | Min HD (mm) | Min S (mm) | Min K (mm) | |||||||
| 1600 | 1 | 1400 | 2400 | 1100 (center- opening) | 2500 | 2850 | 1500 | 4300 | 20 | 60 | 2.7 | 11 | 2000 |
| 1.5 | 1600 | 4400 | 24 | 72 | 16.4 | ||||||||
| 1.75 | 1600 | 4500 | 30 | 90 | 19.2 | ||||||||
| 2.0 | 1700 | 4700 | 30 | 90 | 22 | ||||||||
| 2.5 | 2000 | 5100 | 38 | 150 | 27.5 | ||||||||
Optional
Load DL(KG) | Speed V(m/s) | Car Dimension | Hositway Dimension | Max No.of Stops | Max Travel (m) | Min Span Between Various Floors | Power KW | Distance of Bracket Guide Rail(mm) | |||||
| CW(mm) | CD(mm) | OP(mm) | Min HW (mm) | Min HD (mm) | Min S (mm) | Min K (mm) | |||||||
| 1600 | 1 | 1400 | 2400 | 1200 (side- opening) | 2400 | 2850 | 1500 | 4300 | 20 | 60 | 2.7 | 11 | 2000 |
| 1.5 | 1600 | 4400 | 24 | 72 | 16.4 | ||||||||
| 1.75 | 1600 | 4500 | 30 | 90 | 19.2 | ||||||||
| 2.0 | 1700 | 4700 | 30 | 90 | 22 | ||||||||
| 2.5 | 2000 | 5100 | 38 | 150 | 27.5 | ||||||||
Note: Reference only, for detail information, please contact SUNNY elevator.
Optional
