Vvvf Residential Villa Home Passenger Lift

Type:FJ-982
Drivesystem:VVVF
Controller:serialcommunication
Drivecontrol:gearlesstractionmachineVVVF
Motioncontrol:Simplexcollectiveselective
Optional:
Duplexcollectiveselective(2unitofelevators)
Triplexcollectiveselective(3unitofelevators)
Groupcollectiveselective(4ormoreelevators)

Elevator type	Capacity	Speed	Cabin and Door Decoration
Passenger elevator	320~1600kg	MR:V≤8m/s MRL:V≤1.75m/s	Standard: CarCabin, cabin door and main landing door: HairlineStainless steel, other landing: door painted steel
			Optional for car cabin and other floors: Mirror stainless steel, etching stainless steel, Golden mirror etching finish etc.

Carmodel:YD-02
Ceiling:,severalmodelstobeselected
Ventilation:axialfan(2ormoreforeverylift)
Carside&rearwall:mirroretchedstainlesssteelinthemiddle,hairlinestainlesssteel.
Carfrontwall:hairlinestainlesssteel
COP:integraltype/fullcarfrontwallEX-AC8A
Indicator: Dot matrix or 10.4inchcolorfulLCD
Cardoor:hairlinestainlesssteel
Carbottom:PVC,modelstobeselectedasyoulikefromourcatalogues
Option:marble,modelstobeselectedasyoulikefromourcatalogues
Handrail:EX-FS03,hairlinestainlesssteel(severalhandrailmodelstobeselected).
Doorsafety:fullheightlightcurtain

Specialrequirement:ifyoulike,thefollowingtobeselected:
Emergencylandingdevice(ELD)orautomaticrescuedevice(ARD)-devicemakeelevatorruntothenearestfloorwhenpoweroff
Floorvoiceannouncementunit
voltagestabilizer(ifthepowersupplyisnot steady,maybeyouneedit)
transformer (if the power supply is different from China, maybe you need it)

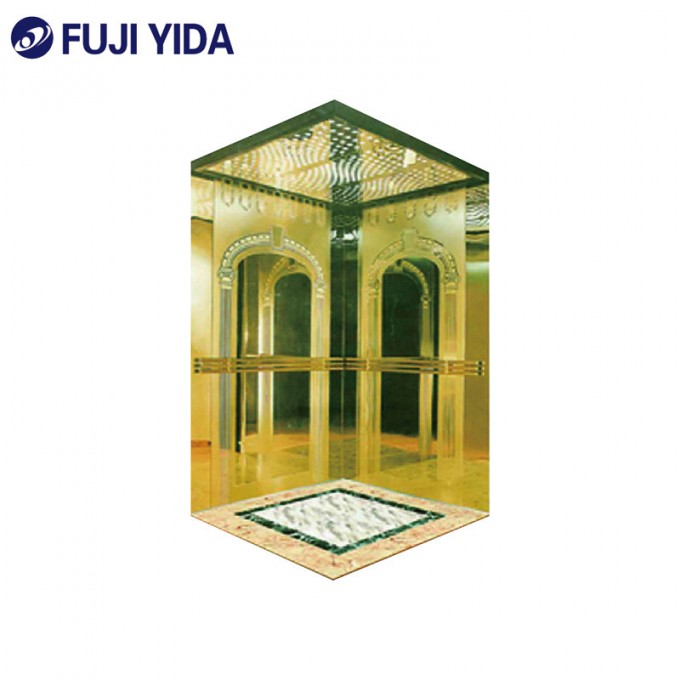

high quality passenger elevator decoration reference as following:

more car decoration, please do not hesitate to contact with us.

passengerelevatorfunctionlist
RunningFunction
VVVFDrive	VVVFDoorOperator
AutomaticRunning	AttendantRunning
VIP(special)Running	BestCurveAutogeneration
ResponseinAcceleratingProcess	Time-sharingServiceFloorSelection
FullLoadbyPass	AutomaticAdjustmentofDoorOpenHoldingTime
DoorRe-openatCurrentFloor	InstantDoorClose
DoorOpenAfterStop	ArrivalGong
CarCallCancel	Parking
NextLanding	SelfRescueinLowSpeed
StartingTorqueAutomaticController	DirectLanding
ButtonInsetDiagnose	Anti-nuisance
FireEmergencyReturn
EmergencyFunction
EmergencyLighting	EmergencyElectricOperation
5-wayintercom	AlarmBell
EnergySavingfunction
Fan&LightAutomaticOff	Start/StopTiming
NighttimeArrivalGongCanellingFunction
SafetyFunction
BrakeageAutomaticDetection	LightCurtainProtection
OverloadStop	HoistingRopeSlidingDetection
InspectionOperation	Troubleshooting
Auto-landingwithFault	DoorCloseRepeat
Top/bottomLimitandFinalLimitProtection	DownRunningProtection
UpRunningProtection	SafetyCircuitProtection
DoorInterlockProtection	MainContactorProtection
BrakeDetectingProtection	SecurityFloorFunction
VoltageAutomaticRecognitionFunction
Human-MachineInterface
MicroPushButton	RunningStateDisplay
FloorSelectioninMachineRoom	NoStopFloorSet
HomingFloorSet	FloorIndicationSet
HoistwaySelf-learning	Interferenceevaluation
Encoderevaluation	InputPortevaluation
COPDebugging	RunningTimesandTimeRecord
MonitorFunction
RemoteMonitor	ResidentialAreaMonitor
TractionMachineMonitor
OptionalFunction
RunningFunction
Fire-fightinglinkageFunction	AdvancedDoorOpening
DoubleDoorIndependentControl	Re-levelingFunction
DuplexControlFunction	GroupControlFunction
CarSterilizeFunction	EnergyFeedbackFunction
EarthquakeFunction
Human-MachineInterface
VoiceAnnouncement	BackGroundMusic
Sub-C.O.P.	C.O.P.ForHandicappedPassengers
ICCardControl
EmergencyFunction
AutomaticRescueDevice(ARD)

Our reference specifiction:

compactmachineroompassengerelevator(gearlesstractionmachine)
capacity	No.ofpersons	speed(m/s)	Entrance(JJ*HH)mm	carnetsize	shaftinsidedimension			Machineroomsize
kg			centeropening	W*D(mm)	W*D(mm)	pitdepth	OH	W*D*H(mm)
630	8	1.0	800*2100	1400*1100	1950*1800	1400	4300	1950*1800*2500
		1.5/1.75				1600	4400
800	10	1.0	800*2100	1400*1350	1950*2050	1400	4300	1950*2050*2500
		1.5/1.75				1600	4400
		2.0				1800	4800
		2.5				2000	5000
1000	13	1.00	900*2100	1600*1450	2150*2150	1400	4300	2150*2150*2500
		1.5/1.75				1600	4400
		2.0				1800	4800
		2.5				2000	5000
		1.0	1000*2100	1750*1450	2350*2150	1400	4300	2350*2150*2500
1150	15	1.5/1.75				1600	4400
		2.0				1800	4800
		2.5				2000	5000
		1.0	1000*2100	1750*1600	2650*2150	1400	4300	2650*2150*2500
1250	16	1.5/1.75				1600	4400
		2.0				1800	4800
		2.5				2000	5000
		1.0	1100*2100	2000*1700	2950*2150	1400	4300	2950*2150*2500
1600	21	1.5/1.75				1600	4400
		2.0				1800	4800
		2.5				2000	5000
		1.0	1100*2100	2000*2000	2950*2500	1400	4300	2950*2500*2500
2000	26	1.5/1.75				1600	4400
		2.0				1800	4800
		2.5				2000	5000

the above is just for reference, if your shaft at jobsite is not like this , please contact with us, we can design as your your shaft.
