Compact structure,ease strain:Short pallets can greatly reduce space span,which can flexibly fits the building structure and save the construction space for the custormer,it comprises Hversion (horizontal).I version (incline) and Cversion (compact) can let the customer have afree choice on his original layout.
Conform to quality/safety standard:Ship-free grooves on pallet surface have an excellent ship-proof function which makes the ride save and confortable.Slightly inclined combs can make trolleys easily get on an doff.FUJIM Elevator machine with complete protecting function runs smoothly and drives efficiently.Advanced microcomputer controling systemc can fully monitor the running status of the moving walk.
Stable and reliable investment:The pallet directly connecting with the chain which makes the running more smoothly and quietly,thus the serive life is extended and its maintenance can be esaily conducted .Special designed big wheel handrail drive runs in low noise and big power,which improves the running condition of handrail,its life is hence prolonged Unique tube structure has abig load capacity,which greatly improves the overall stability and service life.
Colorful decoration: Various styledhandrall can meet personal demand in different environment.Beatuiful stainless steel floor platehas athree-dimension effect.Inner and outer decking adopts stainless steel.
Incomparable econmomical: The moving walk fully utilizes advanced manufacturing process,greatly improves product performance and service life, the most direct result is that the operation cost of the customer is reduced .The optional VF drive technology yields great energy-saving,reducing the running cost to the maximum.

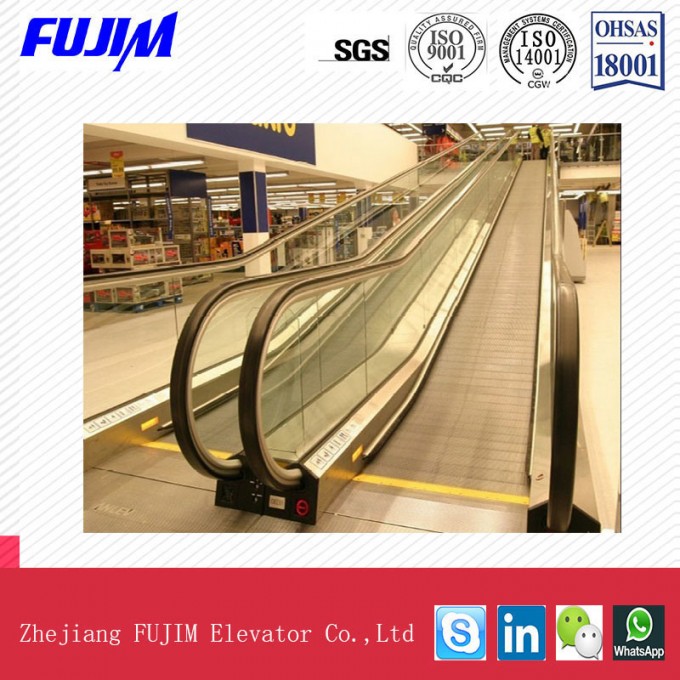

Picture of Product:
| Model | Rise (m/m) | Rated Speed (m/s) | Capacity (per./h) | Inclination (°) | Motor Power(kw) | A(mm) | B(mm) | C(mm) | D(mm) |
| FJM (800/0°~6°) | 10000≤L≤80000 | 0.5 | 6750 | 0-6 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 80000< L≤110000 | 11 | ||||||||
| FJM (1000/0°~6°) | 10000≤L≤70000 | 0.5 | 9000 | 0-6 | 8 | 10000 | 1238 | 1600 | ≥1660 |
| 70000< L≤110000 | 11 | ||||||||
| FJM-10B800 (800/10°) | 2000≤H≤4200 | 0.5 | 6750 | 10 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 4200< H≤5900 | 11 | ||||||||
| 5900< H≤6500 | 15 | ||||||||
| FJM-10B1000 (1000/10°) | 2000≤H≤3300 | 0.5 | 9000 | 10 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 3300< H≤4600 | 11 | ||||||||
| 4600< H≤6200 | 15 | ||||||||
| 6200< H≤6500 | 2*11 | ||||||||
| FJM-11B800 (800/11°) | 2000≤H≤4300 | 0.5 | 6750 | 11 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 4300< H≤6000 | 11 | ||||||||
| 6000< H≤6500 | 15 | ||||||||
| FJM-11B1000 (1000/11°) | 2000≤H≤3400 | 0.5 | 9000 | 11 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 3400< H≤4700 | 11 | ||||||||
| 4700< H≤6400 | 15 | ||||||||
| 6400< H≤6700 | 2*11 | ||||||||
| FJM-12B800 (800/12°) | 2000≤H≤4500 | 0.5 | 6750 | 12 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 4500< H≤6200 | 11 | ||||||||
| 6200< H≤6500 | 15 | ||||||||
| FJM-12B1000 (1000/12°) | 2000≤H≤3500 | 0.5 | 9000 | 12 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 3500< H≤4900 | 11 | ||||||||
| 4900< H≤6500 | 15 |
| Static electricity protection | Emergency stop button | Skirting protection | Handrail entry safety protection | Main drive chains safety protection | Over-speed protection | Under-speed protection |
| Un-intentional reversal protection | Lack of phase, error phase protection | Short circuit protection | Over-load protection | Step sagging protection | Broken step chain protection | Comb teeth safety protection |
| Handrail speed and broken handrail monitor | Skirting anti-clamp device | Step missing detection | The brake opens and the monitor switch | Handwheel and handwheel protection | Floor-plate monitor switch | Monitor of brake distance |
