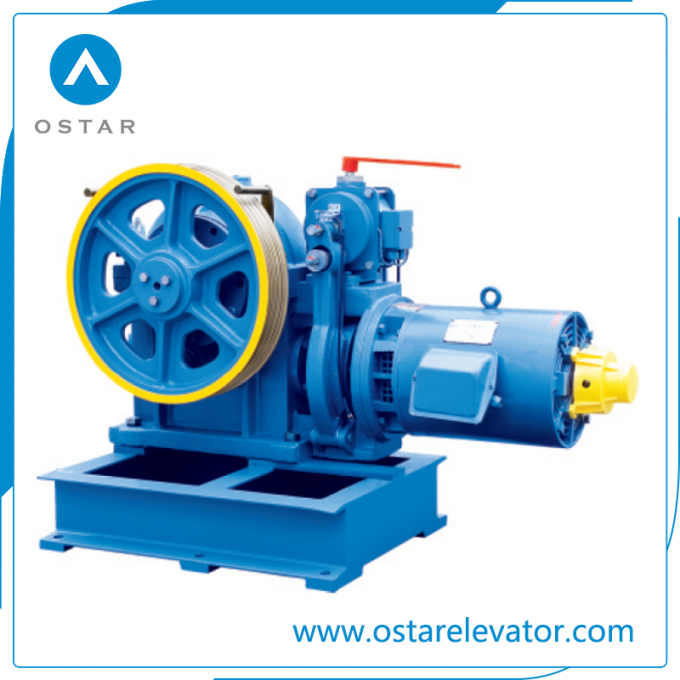

630kg Elevator Motor, Vvvf Geared Traction Motor, Traction Machine (OS112-YJ180)

Specification:

Load (kg)	Lift Speed (m/s)	Ratio	Sheave Dia. (mm)	Rope Sheave (mm)	Motor Power (kw)	Pole
630	0.75	47:1	Φ480	4*12 (pitch 18)	5.5	4
	1.0	36:1			6.4
	1.5	47:2			9

Details:

Control: VVVF
Brake: DC110V, 1.1A
Weight: 430kg
Max. Static Load: 3500kg

Shipment:


FAQ
Q1: What is the lead time of your traction machine?
Our lead time is within 25 working days upon receipt of down payment and confirmed technical documents.
Q2: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q3: What is the guarantee for your elevator?
Our guarantee period is one year; but not includes damage caused by the human reason or force majeure.
Q4: Do you have any certificate for your products?
Yes, we have ISO and CE certificate for spare parts.

OSTAR is one-stop elevator parts supplier, and following parts can be provided by us.
Shaft Components includes
Machined/ Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Bracket etc.
Elevator Cabin includes
Complete Elevator Cabin, Car frame, Counterweight frame and Counterweight Block, Guide Shoes, Rope Attachment etc.
Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts, Safety Light Curtain/Photocell etc.
Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
Traction System includes
Geared/ Gearless Traction Machine, Pulley Sheave, Anti-vibration Pad, Steel Wire Rope etc.
Electrical Components includes
Integrated and Separated Controlling Cabinet, Yaskawa L1000A Inverter, Elevator Display, COP & LOP & HOP, Elevator Push Button, Flat Travelling Cable etc.
