Detailed Description
Travelator / Moving walks (UN-ET008)
Indoor, out door, commercial, public use
Technical Data
| Travelator | Indoor and Outdoor |
| Travel Height | H≤8000mm |
| Inclined Degree | 10°, 11°, 12° |
| Speed | 0.45m/s, 0.5m/s |
| Flat Step | 2 flat step, 3 flat step |
| Step Material | Stainless steel, Aluminum (standard for outdoor) |
| Step Width | 800mm, 1000mm |
| Capacity (persons/h) | 6000, 9000 |
| Balustrade | Tempered glass (10mm), vertical to truss |
| Balustrade height | 900mm, 1000mm (optional) |
| Balustrade bracket | Stainless steel |
| Handrail | C type, Black (Red, Blue, Gray) |
| Handrail drive | Big friction wheel |
| Power Supply | Motor Power: 380V±7%, 50Hz , 3 Phase |
| Lighting Power: 220V, 50Hz, Single Phase |
| Control system | Std.(Star delta) |
| Energy Saving Function | Auto Restart, from stop to high speed |
| Photoelectricity VF low speed , speed from low to high |
| VF Restart, speed from stop to low to high |
| Step chain | Roller built-in |
| Track radius | 1500/1000mm |
| Truss | Squre tube |
| Standard | GB16899-2011
CE, EN115-2008(2010A+) |
| Contact | 86-158-6847-4159 |
Function

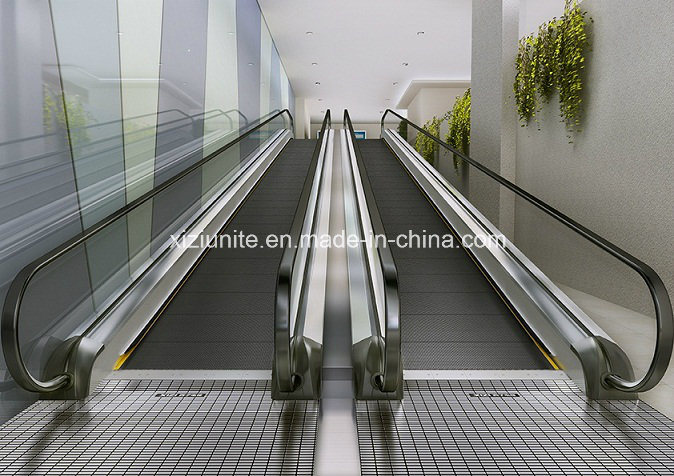

Product Image
