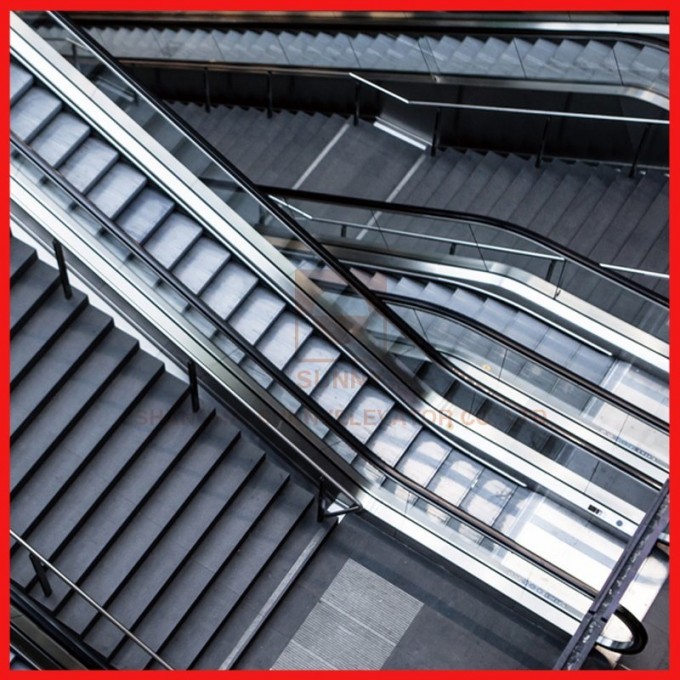

Public traffic type escalator SN-XDW30A(small R ramp handrail)
****************************************
For detail information, please contact us.
****************************************
Power meter(Pedal with 1000mm speed 0.5m/s)
| 8KW | 11KW | 15KW | 18.5KW | 2x11KW |
| 3.0m≤H≤4.0m | 4.0m | 5.2m | 7.2m | 9.0m |
| 2x15kw | ||||
| 10.8m |
Bearing reaction
| Step width | 600 | 800 | 1000 |
| R1(kN) | 4.1xL2+38 | 4.5xL2+40 | 5xL2+42.5 |
| R2(kN) | 4.1xL1+26 | 4.5xL1+27 | 5xL1+28.5 |
| R3(kN) | 4.25xL+37 | 4.5xL+39 | 5.2xL+41.5 |
Standard specification and dimension
| Model | XDW-60L | XDW-80L | XDM-100L | |
| Step width | A | 600 | 800 | 1000 |
| Decorative width | B | 1340 | 1540 | 1740 |
| Construction Open width | C | 1400 | 1600 | 1800 |
| Handrail spacing | D | 962 | 1162 | 1362 |
| Construction Open width | E | 2312 | 2512 | 2712 |
| Support base length | F | 1340 | 1540 | 1740 |
| Rebar quantity | G | 4 | 5 | 6 |
Specification
| Instructions 1. This diagram is applicable to the civil construction of single escalators with 12m and below. 2. When the step width is 600mm or 800mm, the upper part of the truss must be extended 420mm; the support distance is ≤ 15000mm | Model | SN-XDM-1000 | |
| Speed | 0.5m/s | ||
| Height | H≤12000mm | ||
| Angle | 30° | ||
| Support forceR1 | KN | ||
| Support forceR2 | KN | ||
| Support forceR3 | KN | ||
| Motor Power | KW | ||
| Power supply | Power | AC 380V/50Hz | |
| Illumination | AC 220V/50Hz | ||
SN-XDW30A(small R ramp handrail) standard single-row construction layout(outdoor)
