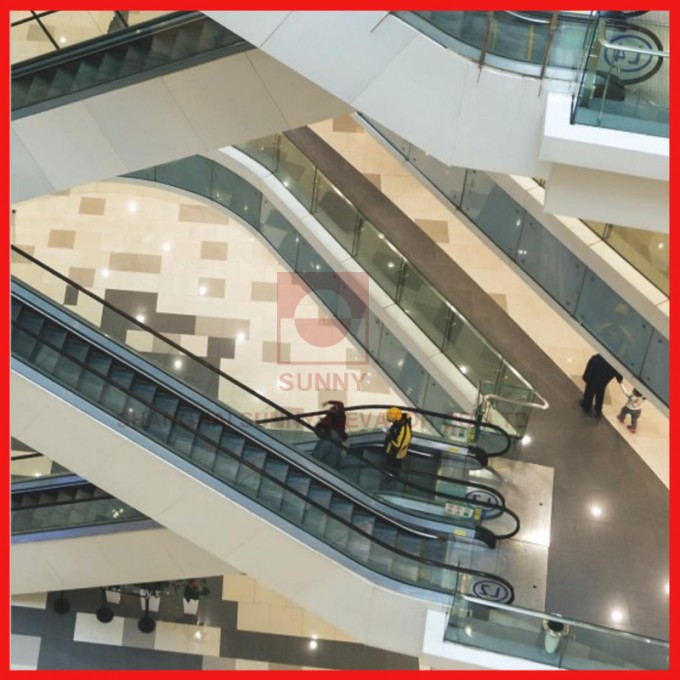

Commercial Escalator with 35 Degree 1000mm Step Width Vvvf Control
| Motor capacity(KW) | Traveling height(ladder width) 1000 | Traveling height(ladder width) 800 | Traveling height(ladder width) 600 | ||||
| 1000~3500 | 5.5 | 1000~3700 | 5.5 | 1000~3900 | 5.5 | ||
| 3600~4700 | 7.5 | 3800~4900 | 7.5 | 4000~5100 | 7.5 | ||
| 4800~5000 | 8 | 5000~5200 | 8 | 5200~5400 | 8 | ||
| 5100~5900 | 11 | 5300~5900 | 11 | 5500~5900 | 11 | ||
| 1000 | 1000 | 1158 | 1238 | 1600 | 1660 | 2310 | |
| 800 | 800 | 958 | 1038 | 1400 | 1460 | 2110 | |
| 600 | 600 | 758 | 838 | 1200 | 1260 | 1910 | |
| Step width | A | B | C | D | E | F | |
| Model | Traveling height(mm) | Net Weight KN | capacity | Transporation demension | |||
R1 KN | R2 KN | h | I | ||||
FHE35/600 (3600person/h) Speed:0.5m/s | 3000 | 54 | 43 | 39 | 2850 | 10180 | |
| 3500 | 57 | 46 | 41 | 2890 | 11030 | ||
| 4000 | 60 | 49 | 44 | 2920 | 11890 | ||
| 4500 | 64 | 52 | 46 | 2940 | 12750 | ||
| 5000 | 67 | 54 | 49 | 2970 | 13610 | ||
| 5500 | 70 | 57 | 51 | 2980 | 14470 | ||
| 6000 | 73 | 60 | 54 | 3000 | 15330 | ||
FHE30/800 (4800person/h) Speed:0.5m/s | 3000 | 56 | 49 | 44 | 2850 | 10180 | |
| 3500 | 60 | 52 | 47 | 2890 | 11030 | ||
| 4000 | 63 | 56 | 50 | 2920 | 11890 | ||
| 4500 | 66 | 59 | 53 | 2940 | 12750 | ||
| 5000 | 70 | 62 | 56 | 2970 | 13610 | ||
| 5500 | 73 | 65 | 59 | 2980 | 14470 | ||
| 6000 | 76 | 69 | 61 | 3000 | 15330 | ||
FHE35/1000 (6000person/h) Speed:0.5m/s | 3000 | 60 | 56 | 50 | 2850 | 10180 | |
| 3500 | 64 | 60 | 53 | 2890 | 11030 | ||
| 4000 | 67 | 64 | 57 | 2920 | 11890 | ||
| 4500 | 71 | 67 | 60 | 2940 | 12750 | ||
| 5000 | 74 | 71 | 64 | 2970 | 13610 | ||
| 5500 | 82 | 77 | 69 | 2980 | 14470 | ||
| 6000 | 85 | 81 | 72 | 3000 | 15330 | ||
35° Escalator Construction Layout Drawing
