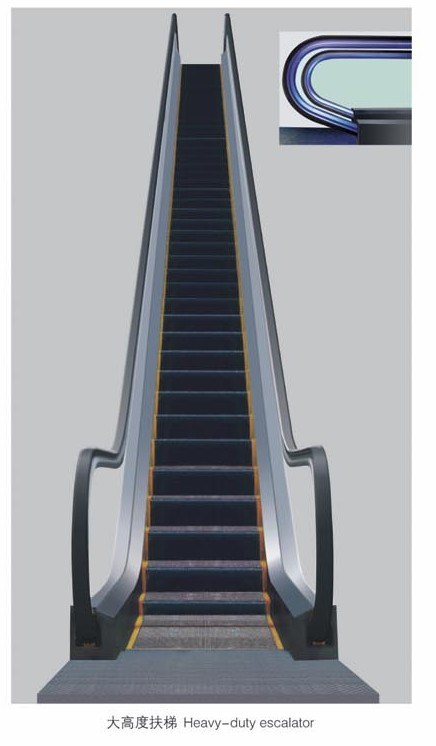

This is XNF-026 typeHeavy Duty Escalator With High Quality Competitive Price, or say public escalator, outdoor escalator. It can be used as supermarket escalator, shopping mall escalator, public transportation escalator.
It can safely transport large quantities of passengers as quickly as possible. It is widely used in hotels, luxurious restaurants and business places. Safe, ptty and efficient, the distinctive Syney escalator displays co
nstruction class and style, making customers better enjoy their shopping.
| Escalator | Indoor and Outdoor |
| Travel Height | H≤30000mm |
| Step Width | 600mm, 800mm, 1000mm |
| Inclined Degree | 35°, 30° |
| Speed | 0.5m/s, 0.65m/s |
| Escalator Width | 1260mm, 1460mm, 1660mm |
| Noise | ≤65dB |
| Vibration | ≤35cm/s² |
| Horizontal step | 2 steps, 3 steps, 4 steps |
| Running | Single speed up &down reversible |
| Delivery | 40ft high container |
| Power Supply | Power 380V±7%, 50Hz, 3 phase 5 wire system
Lighting 220V, single phase |
| Energy Saving Function | VVVF, Auto start stop |
Functions| Standard safety functions |
| 1 | Emergency Stop Button | Yes | 19 | Machine Room Protect Board | Yes |
| 2 | Handrail Entry Contact | Yes | 20 | Step Light | Yes |
| 3 | Broken Step Chain Protection | Yes | 21 | Skirt Panel Contact | Yes |
| 4 | Comb Plate Contact | Yes | 22 | Step Yellow Safety Line | Yes |
| 5 | Inspection Socket | Yes | 23 | Alarm Bell When Start | Yes |
| 6 | Phase Failure and Phase Stagger Protection | Yes | 24 | Floor Plate Open Device | Yes |
| 7 | Step Sag Contact | Yes | 25 | Alarm Signs | Yes |
| 8 | Stop Button | Yes | 26 | Main Driving Chain Broken Protect Device | Yes |
| 9 | Main Power Switch | Yes | 27 | Overspeed Lowspeed Protection | Yes |
| 10 | Circuit Grounding Device | Yes | 28 | Step Static-free Device | Yes |
| 11 | Non-operational Reversal Safety Device | Yes | 29 | Handrail Belt Speed Detect Protection | Yes |
| 12 | Overload Protect | Yes | 30 | Floor Plate Open Detect Device | Yes |
| 13 | Portable Lamp and Socket | Yes | 31 | Step Missing Detect Protection | Yes |
| 14 | Handrail Belt Antistatic Device | Yes | 32 | Working Brake Open Detect Device | Yes |
| 15 | Traction Flywheel Cover Open Detect Switch | Yes | 33 | Skirt Panel Anti Clamp Device | Yes |
| 16 | Maintenance Power Supply Socket | Yes | 34 | Working Brake | Yes |
| 17 | Step Anti Bounce Device | Yes | 35 | Auto Lubricating Device | Yes |
| 18 | Safety Signs | Yes | | | |
| Optional functions |
| 1 | Blocking device | ○ | 8 | Handrail lightening | ○ |
| 2 | Anti-climb device | ○ | 9 | Direction indicator | ○ |
| 3 | Anti-climb device is Not pset. | Yes/No | 10 | Oil-water separator | ○ |
| 4 | Vertical protect board | ○ | 11 | Liquid level switch | ○ |
| 5 | Handrail disconnect protect device | ○ | 12 | Heating device | ○ |
| 6 | Brake shoe wearing detection | ○ | 13 | Cladding | ○ |
| 7 | Auxiliary brake | ○ | | | |
about SYNEYSYNEY ELEVATOR is the leading elevator & escalator manufacturer in China. Our main products include passenger elevator, freightelevator, goods lift, panoramicelevator, observation lift, hospital bedelevator, villa home lift, escalator, waving escalator and moving walk.etc.
Depending on advanced technologies, modern equipments, standardized management, and perfect marketing customer service network, the business of Syney Elevator has been improving steadily, not o
nly covers the whole country, but also has been sold to Russia, Middle East, Southeast Asia, Korea and America, etc, becoming one of elevator enterprises with the highest potential.
The enterprise has two manufacturing factories. The registered capital is USD 35 million, covering nearly 99000 square meters, with over 600 employees. Among them, there are over 200 engineering technicians and nearly 50 senior managers.
