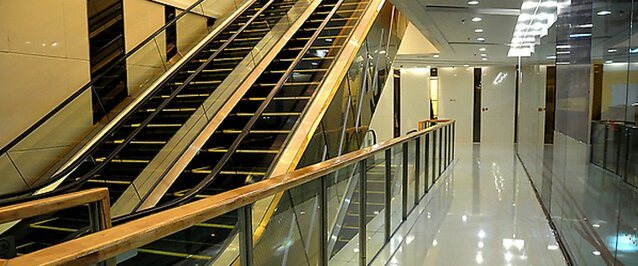

Made in China New Designed Escalator

With incorporation of the well-developed escalator and moving walk technology, advanced micro-computer control system,
high strength truss structure, classical driving system, and completed safety devices, GRE/GRM series of escalators and
moving walks fully ensure our products safe, reliable, endurable and bring steady and comfortable riding. Frequency conversion
technology selected makes Products more energy-saving. Besides outdoor escalator and moving walk can be fit for
different kinds of environment and weather condition. Complying with national standard GB 16899-2011 and European
standard EN115, the escalator and moving walk are applicable for heavy-passenger-flow location such as market,
supermarket, hotel, subway, airport, train station, crossroad and public buildings.



Feature:

1. Super-consciousness aesthetic design meets the characteristics of human physiology;

2. Humanized design, comfort and natural;

3. Advanced control system and driving device, superior driving system, superior driving chain, excellent workmanship
assures the comfortable operation;

4. The safety protection functions as many as 21 items fully comply with national and European standard;

5. Automantic lubrication system lubricates all kinds of driving components, which prolongs products' operation life greatly.

6. Micro-computer controlled system performs with rapid calculation speed, high reliable moving, and also with failure code
fixed, easy to be maintained;

7. Drive device arranged vertically assures enough space and convinience for maintenance.

Application	Indoor. 16-hr operation daily
Height (m)	≤ 7.2(6)
Inclination (° )	30(35)
(mm) Step width	600/800/1000
Horizontal steps	2/2 3/3(only for 30° )
Speed(m/s)	0.5
Capacity (per. /h)	4500/6750/9000
Main power	380V/50Hz/3P
Balustrade	Tempered glass(10mm)
Handrail bracket	Stainless steel
Handrail	Black
Balustrade height(mm)	900
Inner & outer decking	Hairline St. St.
Skirting	Wear resistant coating steel sheet
Step	Stainless steel
Landing plate	Stainless steel (anti-sliding)
illumination	lighting under upper & lower landing steps
Indicator	Failure code indicator on control cabinet
Operation	Emergency stop button Key switch Inspection operation

Optional configuration

Different components with individual performance and multi-functional devices ensure our escalator and moving walk
can meet various customer demands.

Application	Semi-outdoor/outdoor. 16-hr operation daily
Handrail bracket	Aluminum profile
Handrail	Green, red, blue, yellow
Balustrade height	1000mm
illumination	Skirting lighting
	Comb lighting
Monitor	Handrail speed monitor
	Handrail break monitor
Indicator	Indicator on outer decking
Direction indicator	Running direction indicator on outer decking
Step(escalator)	One-piece aluminum
Skirting	Hairline St. St.
Landing plate	Aluminum alloy (anti-sliding)
Energy control	VVVF
Lubrication	Automatic lubrication / electric lubrication
External cladding	Hairline St. St. / Painted steel /Glass/Mirror st. st.

Safety devices

Static electricity protection of step (pallet)	Eliminate static electricity raised from running of the steps (pallets).	standard
Static electricity protection of handrail	Eliminate static electricity raised from running of the handrail.	standard
Emergency stop button on entrance	Push the emergency stop button to stop the escalator (moving walk) against emergency raise.	standard
Handrail entry safety protection	Protection against risk of other objects being jammed into handrail entry.	standard
Over speed protection	Protection against risk of speed being over 20% of rated speed.	standard
Under speed protection	Protection against risk of speed being less than 20% of rated speed.	standard
Unintentional reversal protection	Protection against risk of unintentional reversal of the direction of travel.	standard
Phase failure protection	Protection against risk of phase failure.	standard
Short circuit protection	Protection against risk of short circuit.	standard
Over-load protection	Protection against risk of motor continually over load.	standard
Step(pallet)sagging protection	Protection against risk of steps (pallets) being breakage and sagging.	standard
Step(pallet)chains safety protection	Protection against risk of step (pallets) chains being breakage of undue elongation.	standard
Comb safety guard	Protection against risk of foreign objects being trapped at the point where the step (pallet) enters the comb.	standard
Inspection socket	To provide voltage to inspect or maintain.	standard
Machine room guard	One safety plate separates machine room from movable parts such as step to protect service personnel.	standard
Emergency stop button on control cabinet	Push the emergency stop button to stop the escalator (moving walk) against emergency raise when inspection and maintaining.	standard
Auxiliary brake	Auxiliary brake will act and stop the escalator (moving walk) in case of main drive chains breakage or the steps (pallets) or handrail changing from psent direction of motion.	Optional
Handrail guard	Protection against risk of speed change and breakage of handrail.	Optional
Skirting guard	Protection against risk of foreign objects being jammed into clearance between steps (pallets) and skirting.	Optional
Main drive chains safety protection	Protection against risk of drive chains being breakage or undue elongation.	Optional
Skirting brush	Brushes on skirting to enhance the passenger' s safety.	Optional

about SRH



Sicher Elevator Co., Ltd.
Sicher Elevator Co., Ltd. is a specialized, collectivized transnational operation enterprise through investment, merger and
stock restructuring.

Sicher covers an area of 147600 square meters, with overall floorage 170000 square meters, owns manufacturing center,
R&D center, customer service center, as well as an elevator testing tower with the running speed of up to 10.0 m/s, which
is a large-scale and global market-oriented manufacturing enterprise for elevators and parking system equipment.

SRH Aufzüge GmbH, as a wholly owned subsidiary by Sicher Elevator Co., Ltd. builds the close strategic cooperation
union with German large, medium-sized elevator manufacturing companies and elevator parts companies to provide all
kinds of SRH brand products in line with EU Standards for global customers.

SRH, originates from German word "Sicher", which means safe, reliable, and reflects the core value of the brand about
"only for safe reach" throughout and constantly in the complete process of product R&D, manufacturing, sales, installation
and service.

Sicher implements the scientific and technological innovation development strategy and establishes several innovation
platforms such as Provincial Enterprise Research Institute, Academicians and Experts Workstation, Post-doctor Scientific
Research Workstation, Provincial Enterprise Technology Center, Provincial Industrial Design Center, Provincial High-tech
Enterprise Research and Development Center, Sicher Elevator Center Laboratory, China Academy of Building Research-Sicher
Elevator R&D Center, Zhejiang Sicher Elevator Science and Technology Research Institute. It owns 86 patents and won the
honor of "The National Machinery Industry Outstanding Unit". Its quality management has passed the national military standard
attestation. Elevator product was awarded US "Elevator World Project of the Year 2016" and moving walk product was awarded
"China Records".

With perfect service network at home and abroad, Sicher has exported its products to over 40 countries and regions and has
established a long-term strategic cooperative partnership with many renowned real estate development enterprises and won
the honor of "National Excellent Supplier in Government Procurement". SRH has become a well respected elevator brand in
Russia, Uzbekistan, Turkey, UAE, Oman, Kuwait, Iran, India, Bangladesh, Cambodia, South Africa, Egypt, Tanzania, Brazil
and Elevator, etc.

Sicher Elevator persists in the development strategy of "internationalization, technology, industrialization" and takes the
innovation of service, technology and idea as its core to realize a new value eco of intelligent manufacturing, industrial
service and international brand further to become a world excellent elevator solutions service provider.
