Detailed Description
This is XNF-010 type 30 Degree Outdoor Escalator with Aluminum Step. This outdoor type escalator is usually used in outdoor public places like squres, cross roads and subways.
It can safely transport large quantities of passengers as quickly as possible. It is widely used in hotels, luxurious restaurants and business places. Safe, ptty and efficient, the distinctive Syney escalator displays co
nstruction class and style, making customers better enjoy their shopping.
| Escalator | Indoor and Outdoor |
| Travel Height | H≤30000mm |
| Step Width | 600mm, 800mm, 1000mm |
| Inclined Degree | 35°, 30° |
| Speed | 0.5m/s, 0.65m/s |
| Escalator Width | 1260mm, 1460mm, 1660mm |
| Noise | ≤65dB |
| Vibration | ≤35cm/s² |
| Horizontal step | 2 steps, 3 steps, 4 steps |
| Running | Single speed up &down reversible |
| Delivery | 40ft high container |
| Power Supply | Power 380V±7%, 50Hz, 3 phase 5 wire system
Lighting 220V, single phase |
| Energy Saving Function | VVVF, Auto start stop |
Escalator safety measures
Functions| Standard safety functions |
| 1 | Emergency Stop Button | Yes | 19 | Machine Room Protect Board | Yes |
| 2 | Handrail Entry Contact | Yes | 20 | Step Light | Yes |
| 3 | Broken Step Chain Protection | Yes | 21 | Skirt Panel Contact | Yes |
| 4 | Comb Plate Contact | Yes | 22 | Step Yellow Safety Line | Yes |
| 5 | Inspection Socket | Yes | 23 | Alarm Bell When Start | Yes |
| 6 | Phase Failure and Phase Stagger Protection | Yes | 24 | Floor Plate Open Device | Yes |
| 7 | Step Sag Contact | Yes | 25 | Alarm Signs | Yes |
| 8 | Stop Button | Yes | 26 | Main Driving Chain Broken Protect Device | Yes |
| 9 | Main Power Switch | Yes | 27 | Overspeed Lowspeed Protection | Yes |
| 10 | Circuit Grounding Device | Yes | 28 | Step Static-free Device | Yes |
| 11 | Non-operational Reversal Safety Device | Yes | 29 | Handrail Belt Speed Detect Protection | Yes |
| 12 | Overload Protect | Yes | 30 | Floor Plate Open Detect Device | Yes |
| 13 | Portable Lamp and Socket | Yes | 31 | Step Missing Detect Protection | Yes |
| 14 | Handrail Belt Antistatic Device | Yes | 32 | Working Brake Open Detect Device | Yes |
| 15 | Traction Flywheel Cover Open Detect Switch | Yes | 33 | Skirt Panel Anti Clamp Device | Yes |
| 16 | Maintenance Power Supply Socket | Yes | 34 | Working Brake | Yes |
| 17 | Step Anti Bounce Device | Yes | 35 | Auto Lubricating Device | Yes |
| 18 | Safety Signs | Yes | | | |
| Optional functions |
| 1 | Blocking device | ○ | 8 | Handrail lightening | ○ |
| 2 | Anti-climb device | ○ | 9 | Direction indicator | ○ |
| 3 | Anti-climb device is Not pset. | Yes/No | 10 | Oil-water separator | ○ |
| 4 | Vertical protect board | ○ | 11 | Liquid level switch | ○ |
| 5 | Handrail disconnect protect device | ○ | 12 | Heating device | ○ |
| 6 | Brake shoe wearing detection | ○ | 13 | Cladding | ○ |
| 7 | Auxiliary brake | ○ | | | |

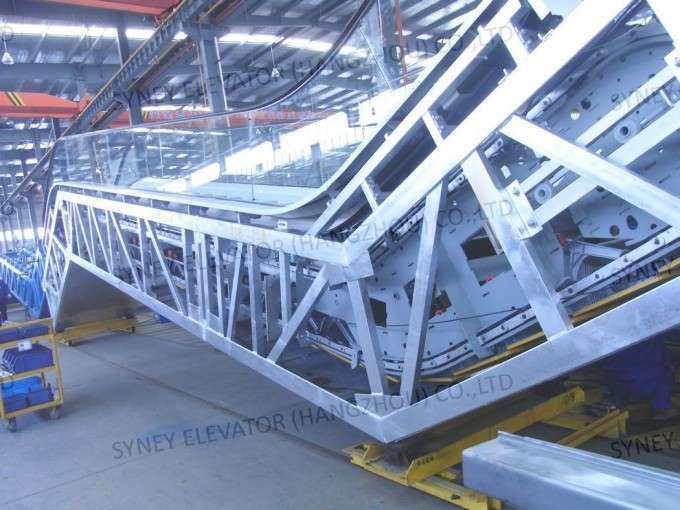

Product Image
