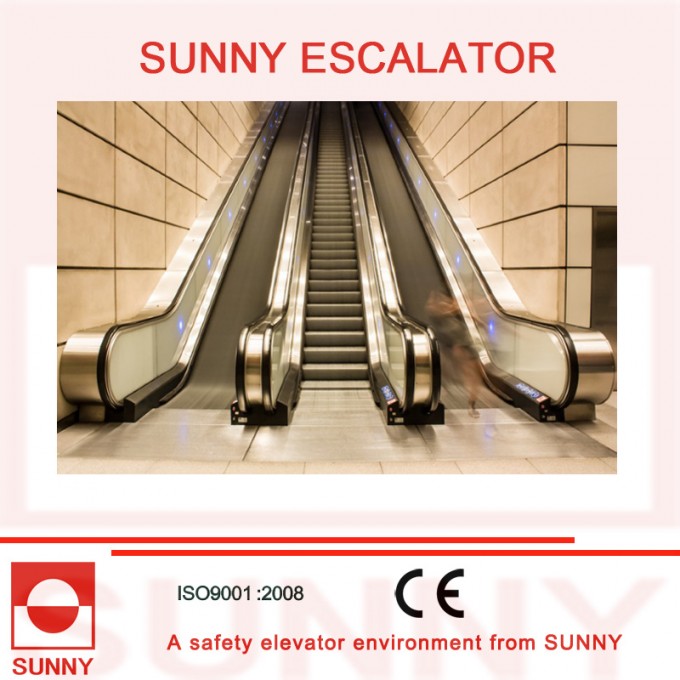

Commercial Escalator with Vertical Rise up to 10m (Sn-Es-C055)

1. Control system: It uses the Mitsubishi PLC which has large storage memory, quick signal relay, simple structure, high reliable, anti-interference capabilities and so on; Ensuring the safe and reliable operation of the escalator
2. Driving System: VVVF technology
3. Four kinds of running mode based on passenger flow rate: Normal Speed, Eco-Dual Speed, Intelligent travel, Bi-directional Modes, With this function it helps the equipment to conserve energy thereby saving operational cost

1	Emergency Stop Button	If pssed in a emergency, stops the moving escalator/ conveyor immediately.	Standard
2	Motor Speed Device	If the speed above normal speed, stops the moving escalator/ conveyor.
3	Motor Over Heat Device	Stops the moving escalator/ conveyor, if the motor is over heat
4	Driving Chain Safety Device	Stops the moving escalator/ conveyor, if the driving chain breaks or excessively looses.
5	Handrail Inlet Safety Device	Stops the moving escalator/ conveyor, if hand or object is pulled into the handrail inlet.
6	Step Sagging Device	Stops the moving escalator/ conveyor, if step are operating in abnormal manner.
7	Non Reversing Safety Device	Stops the moving escalator/ conveyor, if its direction of travel is reversed.
8	Maintenance Switch	Cuts off operating circuits when maintenance inspection or repair is performed.
9	Absent or mistaken epsilon phase device	Escalator/ conveyor can't operate, if Absent or mistaken epsilon phase device
10	Comb plate safety device	Stops the moving escalator/ conveyor, if objects are caught between comb plate and pallet treads.
11	Motor braking safety device	Help the motor brake properly
12	Skirt Guard Safety Device	Stops the moving escalator/ conveyor, if objects are caught between pallet skirts.
13	Handrail Speed Monitoring Device	Stops the moving escalator/ conveyor, if handrail speed is below normal due to handrail breakage or elongation.
14	Alarm bell	Ringing alarm bell, if escalator/ conveyor operate normally
15	Auto- lubricate device	Auto- lubricate to escalator/ conveyor
16	Pallet Demarcation	Yellow two demarcation lines provide a visual and physical warming of the pallet edges
17	Self-diagnose Device	Self-diagnose the whole system, if escalator/ conveyor run normally	Option
18	Skirting illumination	Lamps are provides at the both sides of skirt panel

****************************************************
For detail information, please contact us.
****************************************************
